Hexagon symbol in Text Editor

  • December 21, 2016
  • 1 reply
  • 5548 views

I am placing General Notes in an Annotated Model

However, I would like to know if there is a way to incorporated into the General Notes a "Hexagon" symbol within the Text Editor.

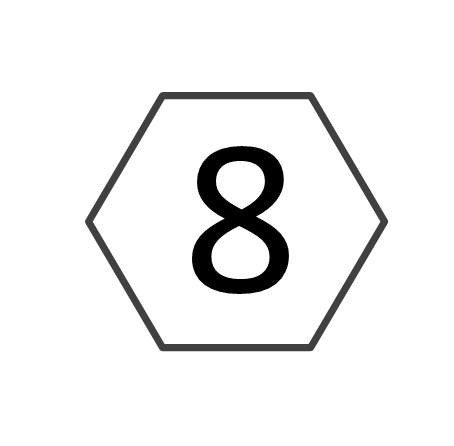

For example

Is there a script that exist to place a hexagon note around the number?

thus the hexagon shape is flexible based on how many digits

I look forward to replies.

Thank you

Ray

    1 reply

    T
    TomD.inPDX17-Peridot
    17-Peridot
    December 21, 2016

    These types of things are typically handled in "symbols".

    Unfortunately, that makes them hard to use in notes.

    However, you might be able to relate the symbol item to the annotation feature so they at least move together.

    When you edit the note, you have to remember to re-align the symbol.

    I've had similar issues with putting finish symbols in notes.

    R
    rreiff1-VisitorAuthor
    1-Visitor
    December 22, 2016

    Antonius,

    Those are correct statements; however,

    I was hoping if someone knew, if there was a script that was written of a keyboard command, when in text editor mode that would place a Hexagon around a alpha-numeric character.

    I wonder if PTC could figure out something that would take care of this issue... because if you were doing annotated models. The metadata of a model would have that information embedded into the model.

    thank you

    Ray

    T
    TomD.inPDX17-Peridot
    17-Peridot
    December 22, 2016

    We can hope but my experience says PTC is loath to touch the original code.  This one is about as ancient as they gets.

    I thought we could stream symbols into notes, however.  I am not an expert on that end.

    I'm pretty sure balloons just symbols with their own buttons.
