Question

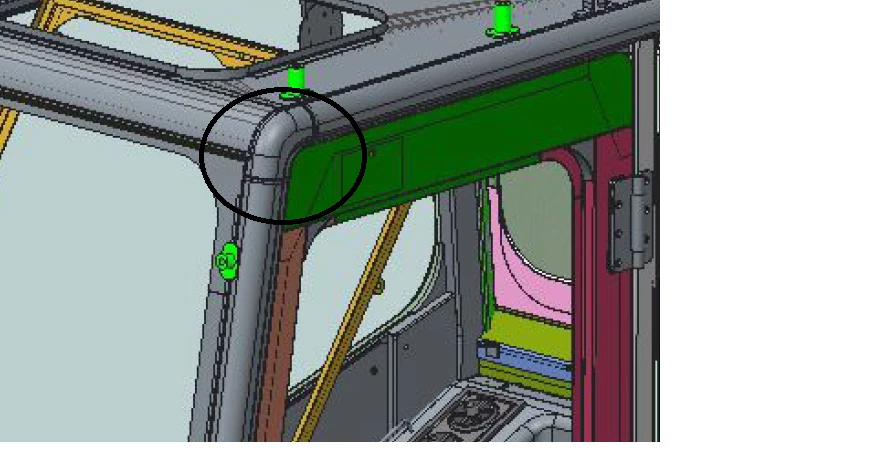

How to create a profile like attached image in pro/e sheetemetal

How to create a profile like attached image in pro/e sheetemetal

    3 replies

    jsarkar1-Visitor
    1-Visitor
    Apr 25, 2014 10:41 AM UTC

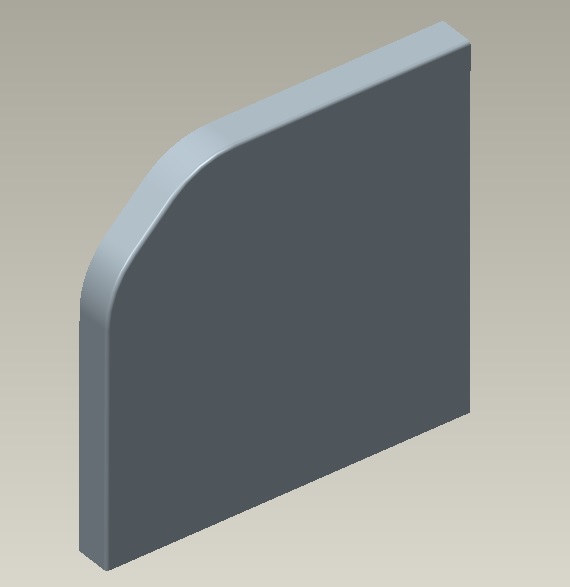

    Untitled.jpgLike this:

    You have to click placement tab> details and select all the curves by pressing control key while creating flange. File is attached.

    Translate
      jzhang-31-Visitor
      1-Visitor
      Apr 28, 2014 6:08 PM UTC

      In model --> to select a surface or datum --> Engineering --> ECAD area --> Sketch the profile --> OK

      --> (Area Type) Place keepout, Option: 3D Volume, Depth options, depth .xxx , Ok --> you will see a surface image attached to the part.

      Translate
      TomD.inPDX17-Peridot
      17-Peridot
      Apr 28, 2014 7:07 PM UTC

      Flange feature

      Translate
