How to create proportion symbol in Creo 2

Hi

i need to create ellipse symbol and it is ease, but i discovered that i can not change it, the proportion option do not allowed

    11 replies

    RaphMORIN16-Pearl
    16-Pearl
    Mar 17, 2016 7:52 AM UTC

    Hi

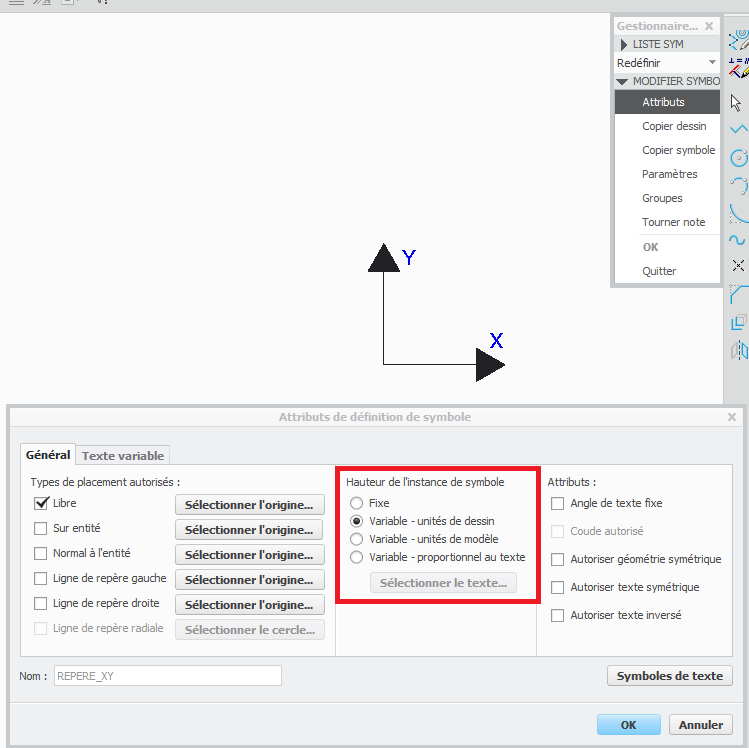

    If I have well understood your problem, you must redefine the symbol following the image below. You redefine the symbol then click attributs then you choose the option in the red rectangle. When finished don't forget to save.

    Translate
    bkhodos1-VisitorAuthor
    1-Visitor
    Mar 17, 2016 12:34 PM UTC

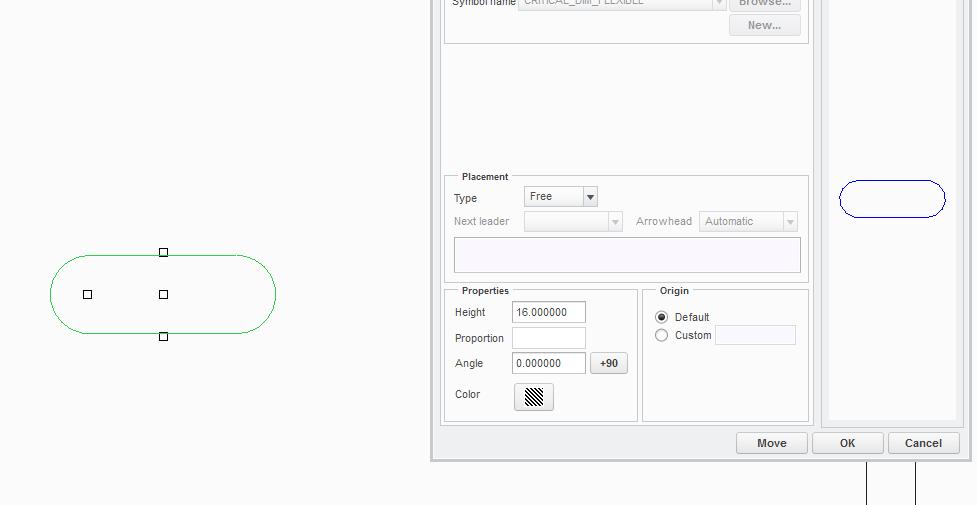

    hi thank you for answer, but i have different problem Noname.jpg

    see pic - i can not change the proportion.

    Translate
    RaphMORIN16-Pearl
    16-Pearl
    Mar 17, 2016 12:44 PM UTC

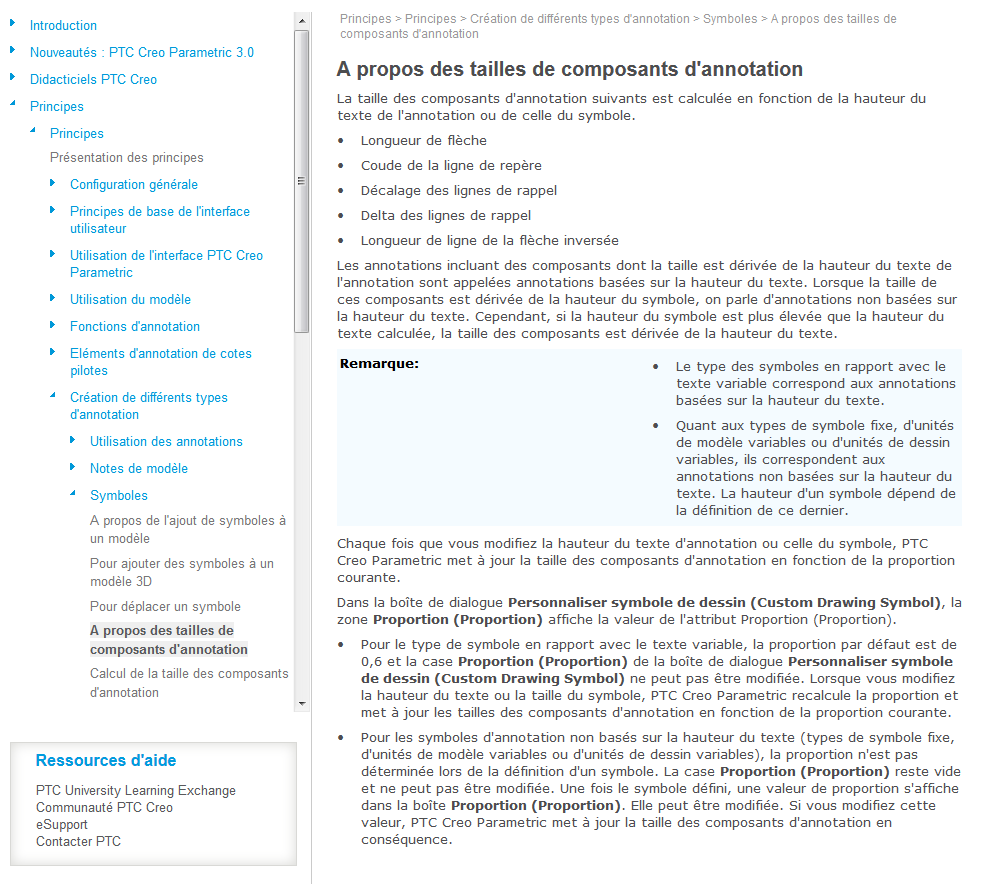

    I have found something in the help center about this, but I have the french version. Here's a snapshot helping to find the location of this help in your language version.

    http://help.ptc.com/creo_hc/creo30_pma_hc/french/index.html#page/pma/fundamentals/fund_eight_sub/about_annotation_component_sizes.html

    Translate
    mtrautner-21-Visitor
    1-Visitor
    Mar 18, 2016 11:47 PM UTC

    Hi,

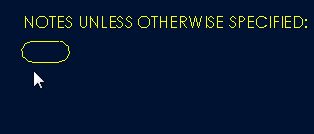

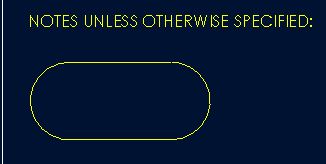

    attached there is an "ellipse" symbol, which allows you to change its proportions.

    Just copy the file in the Creo symbol folder - typically its C:\PTC\creo_standards\symbols\ and add via the "custom symbol" function to your drawing.

    Use offset as the attachment method if you want to link it to a view or a dimension.

    I used Raphaels method to create the symbol and I can change the proportions just fine.



    Markus

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    Mar 19, 2016 12:12 AM UTC

    I think the OP wants a parametric value in both X and Y for the symbol.

    The symbol may need to be driven by relations if that is even possible.

    I am no expert on symbols but thought I'd point this out.

    Translate
