how to flatten this in pro engineer?

  • January 19, 2013
  • 1 reply
  • 1656 views

hi,

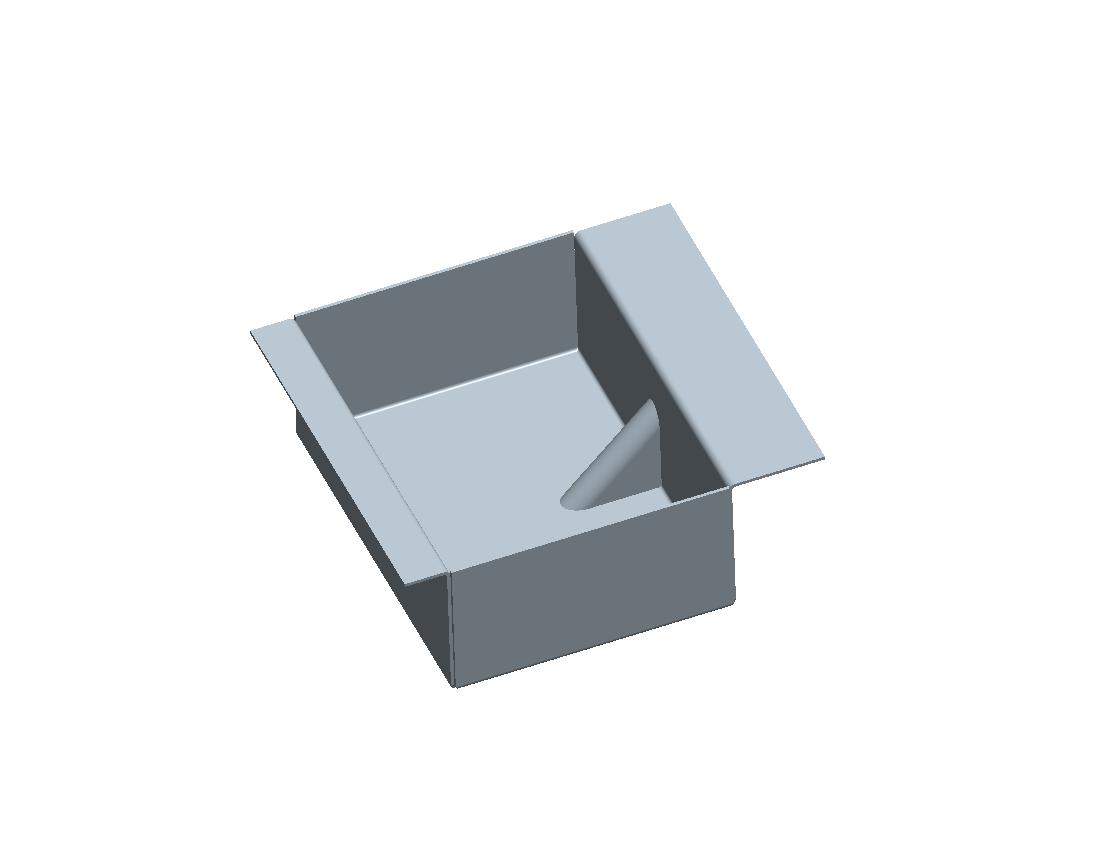

how to flatten this in pro engineer (wildfire 4.0)?


    1 reply

    T
    TomD.inPDX17-Peridot
    17-Peridot
    January 20, 2013

    I think we need a little more information. Is it a sheetmetal part? You might also suppress the "knee" feature before flattening.

    R
    rohit_rajan15-MoonstoneAuthor
    15-Moonstone
    January 20, 2013

    HI,

    yes it is a sheetmetal part....yes we can suppress it...but does it give the same result..then why should there be a flatten form feature...we can suppress..all the form features....

    T
    TomD.inPDX17-Peridot
    17-Peridot
    January 20, 2013

    Sheetmetal is very dependent on how the part is built to allow flattening. What feature was the initial material?

    Maybe you can post the part file and we can look at it.
