How to Import a Sketch

How do you import a sketch (a sec file) into creo parametric 2.0.

      DRFaustAnswer
      12-Amethyst
      November 27, 2012

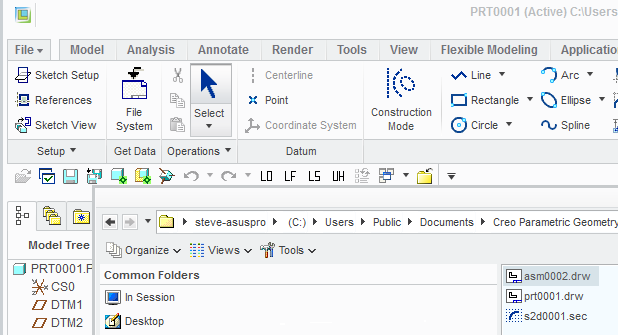

      Select the "File System" icon then select the desired sec file.

      Insert sec.PNG

      View in thread

      9 replies

      DRFaust12-AmethystAnswer
      12-Amethyst
      November 27, 2012

      Select the "File System" icon then select the desired sec file.

      Insert sec.PNG

      Translate
        BigBoss1-VisitorAuthor
        1-Visitor
        November 27, 2012

        Dude your awesome!

        Translate
        nanpnanr1-Visitor
        1-Visitor
        February 20, 2015

        Thanks for the info about how to import a sketch (a sec file) from the file system, however my question is this:

        Can I modify the original sketch (the sec file) and then get my part updated? Will the changes made to the original file be updating the part using the sketch?

        I have a number of different parts using a same sketch, I want all of these parts updated when I may original sketch is modified. Is there any way to do this?

        For example I am designing a housing for a circuit board. I want to have a board sketch and use it in multiple parts, e,g, housing top, housing bottom, and some internal components. I want all of these parts updated based on the modification to the board sketch. Is there any way to do this?

        Thanks in advance.

        Translate
        TomU23-Emerald IV
        23-Emerald IV
        February 21, 2015

        Can I modify the original sketch (the sec file) and then get my part updated? Will the changes made to the original file be updating the part using the sketch?

        No. The .sec files on disk are just saved sections (sketches). By loading one into a model, you are just saving yourself the trouble of sketching it again. There is no reference kept between the file on disk and the model.

        I have a number of different parts using a same sketch, I want all of these parts updated when I may original sketch is modified. Is there any way to do this?

        There are several different ways to approach this. Basically you need to create the "master" sketch in one model, and then reference this sketch from all the other models. Then, when you need to make a change you only change the sketch in the master model. This can be done multiple ways:

        • Publish geometry / Copy geometry
        • Adding the master model and child model to a shared assembly (or skeleton model approach)
        • Merge / Inheritance Feature
        Translate
          nanpnanr1-Visitor
          1-Visitor
          February 23, 2015

          Thank you very much.

          I tried Publish geometry / Copy geometry and it works perfect for the purpose.

          Translate
