how to unfold the pipe

i have tried to unfold the pipe using rip with sketch but its not working it always shows a failure msg. can anyone suggest a way

    Mahesh_Sharma
    Mahesh_SharmaAnswer
    22-Sapphire I
    Jul 11, 2014 8:46 PM UTC

    Sagar,

    You need to use correct orientation of part in view to get correct value.

    You can create new view in part or in drawing change the orientaion of view using Geometry references in View properties.

    View in thread

    28 replies

    TomD.inPDX17-Peridot
    17-Peridot
    Jul 10, 2014 8:32 PM UTC

    Tubes are tricky in sheetmetal. There are any number of reasons it doesn't want to unfold.

    If you can attach the file a post, we can probably help with more specific answers.

    Translate
    schopra-21-VisitorAuthor
    1-Visitor
    Jul 11, 2014 6:22 AM UTC

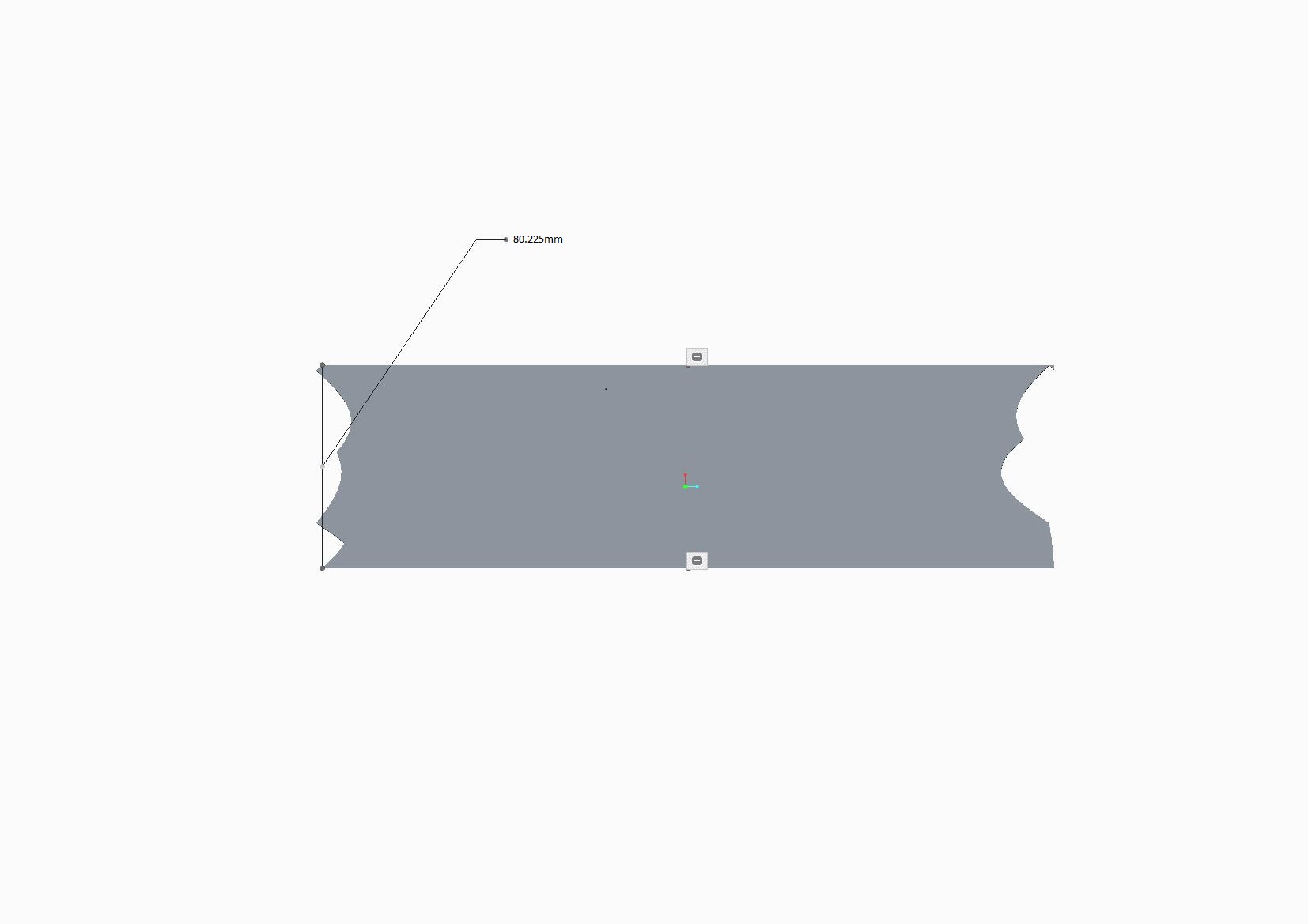

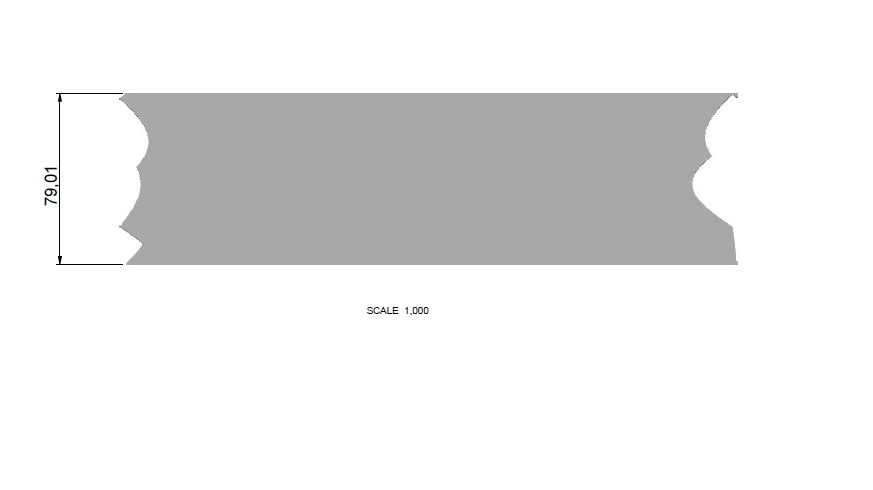

    sir i have unfolded the tube but now what problem i am facing is in the sheetmetal the opened tubed width is 80.225 mm but when i take it to drawing its width becomes 79.1 its creating a problem in wrapping this profile around the pipe for notching. sheetmetalmeasure.jpgsheetmetal+drawing.jpg

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    Jul 11, 2014 6:55 AM UTC

    It appears that the y-factor is being applied twice.

    Translate
