Iges to Models in Creo

  • February 10, 2016
  • 2 replies
  • 1258 views

Long time Unigraphics/NX user here and new to Creo 2.0.    I need to create several models that are basically revolved.   I will import in some Iges files with a cross section.   In Creo, I take the lines in the cross section and project them into a sketch and then I revolve the sketch to create a solid.    Is there an easy way to assign dimensions and break the link to the imported files and be left with what looks like a "clean" Creo file with a sketch, etc.? Thanks

    2 replies

    B
    bgruman1-Visitor
    1-Visitor
    February 10, 2016

    Mark,

    -After you have Projected your cross-section,  you can open the "References" box and delete all the references. (Creo will automatically assign "soft" (grey) dimensions to your section)

    -Select new Vertical and Horizontal references.

    -Create "hard" (yellow) dimensions per the scheme of your choice.

    -Done.

    Good Luck

    Bernie

    Bernie Gruman

    Owner / Designer / Builder

    www.GrumanCreations.com

    M
    mwesselski1-VisitorAuthor
    1-Visitor
    February 11, 2016

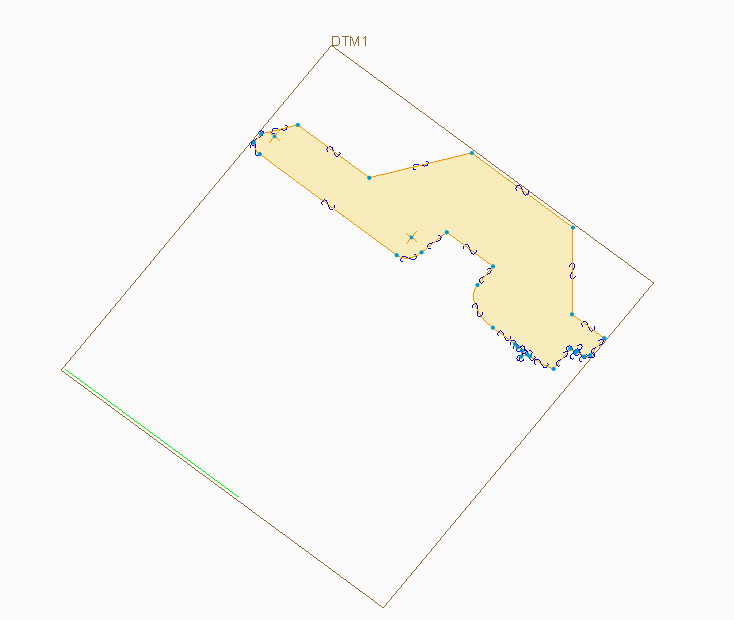

    Below is a view of the section I'm revolving.  The iges file only contained some lines which represented a section.  I'm not sure where the "References" box is.  Only thing I could find is if I right click the sketch and I get the option, "Edit References".  I don't see any option to just delete the references.
