Question

Lightweight Graphics Representation

  • January 9, 2014
  • 2 replies
  • 3952 views

We are trying to get LGR to work in Creo 2 Parameteric M050 and M090 tied to PDMLink 10.1 M040. We have followed the documentation provided by the local PTC rep who we have worked with for many years. We can it it to work with the files saved locally but not tied to PDMLink.

I am able to spin and zoom on the thumbnail in PDMLink, but when we open a file using LGR in Creo, we get outlined boxes representing the parts and subassemblies.

Does anyone have any suggestions?

Lance Lie

    2 replies

    B
    BillRyan16-Pearl
    16-Pearl
    January 9, 2014

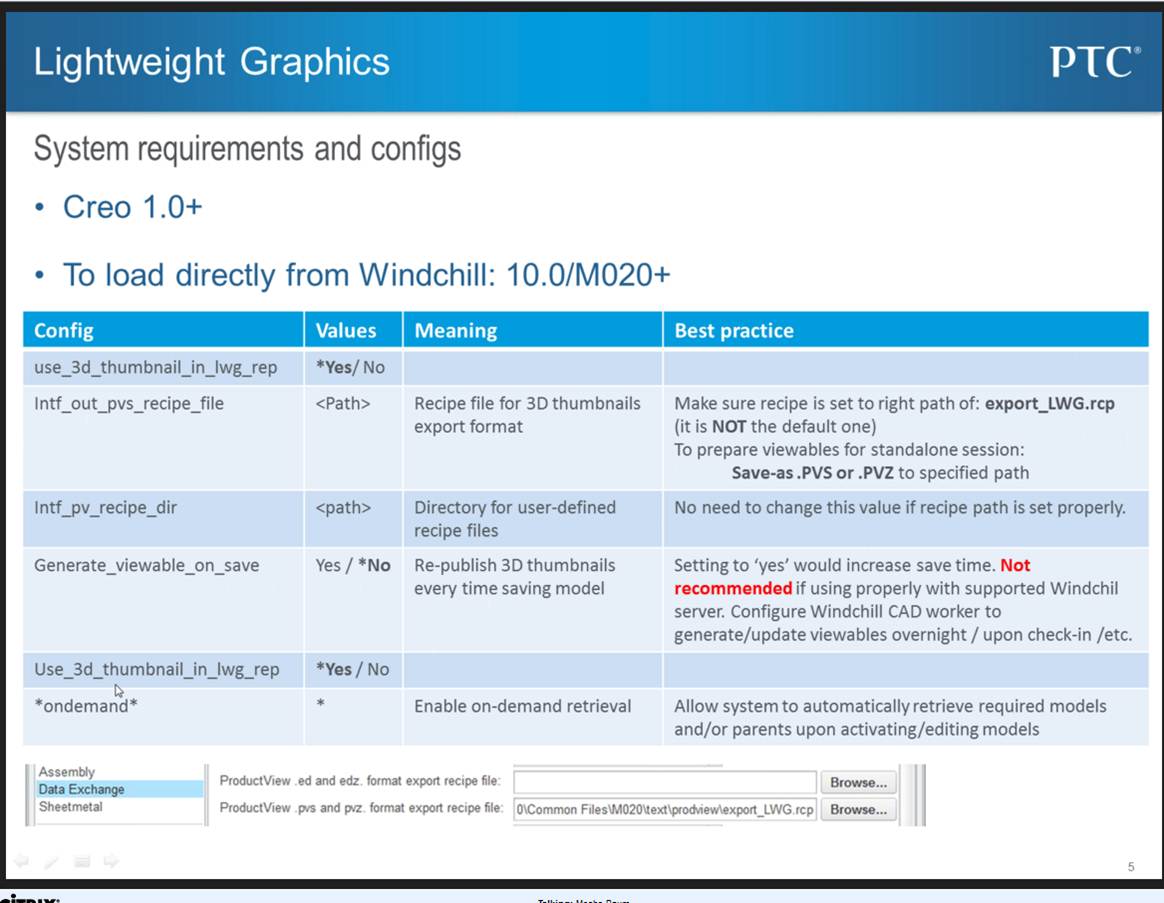

    Do you have the settings outlined in this image?


    L
    llie17-PeridotAuthor
    17-Peridot
    January 14, 2014

    Bill,

    I appreciate the image, but those settings are only if you are to publish locally to your hard drive. We are using Creo 2 M050 and PDMLink 10.1 M040 with a couple CADWorkers that automatically publish on Check-In.

    I can get it to create the .pvt using the settings that you specify above, but not tied to a CADWorker. There is a PTC Document that specifies settings that I have walked thru with numerous PTC Tech Support and we still cannot get it to work correctly.

    Lance

    L
    llie17-PeridotAuthor
    17-Peridot
    January 14, 2014

    send me an email and I will send you the PTC Configure Light Graphics with Windchill document.

    -
