Making a hole diagonal of rectangle

hey there guys...this is nothing to do with d original post up there..

i just had a problem n i m looking for somebody to sort it out for me..

I WANT TO MAKE A HOLE ALONG D DIAGONAL OF RECTANGLE IN PRO-ENGINE

see if anybody could help me out

    4 replies

    ryankelley1-Visitor
    1-Visitor
    Nov 19, 2013 7:19 PM UTC

    Branched this discussion from another where it didn't belong, hopefully one of our experts can answer Sandeep's question here.

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    Nov 19, 2013 8:35 PM UTC

    Thanks Ryan.

    Sandeep, welcome to the forum.

    Two ways of making holes when you do not have a good surface for placement:

    • Create a plane where the hole can be placed and located.
    • Create a revolved cut in the shape you require. You can later add a cosmetic thread in the hole if desired.
    Translate
      Inoram14-Alexandrite
      14-Alexandrite
      Nov 20, 2013 2:08 PM UTC

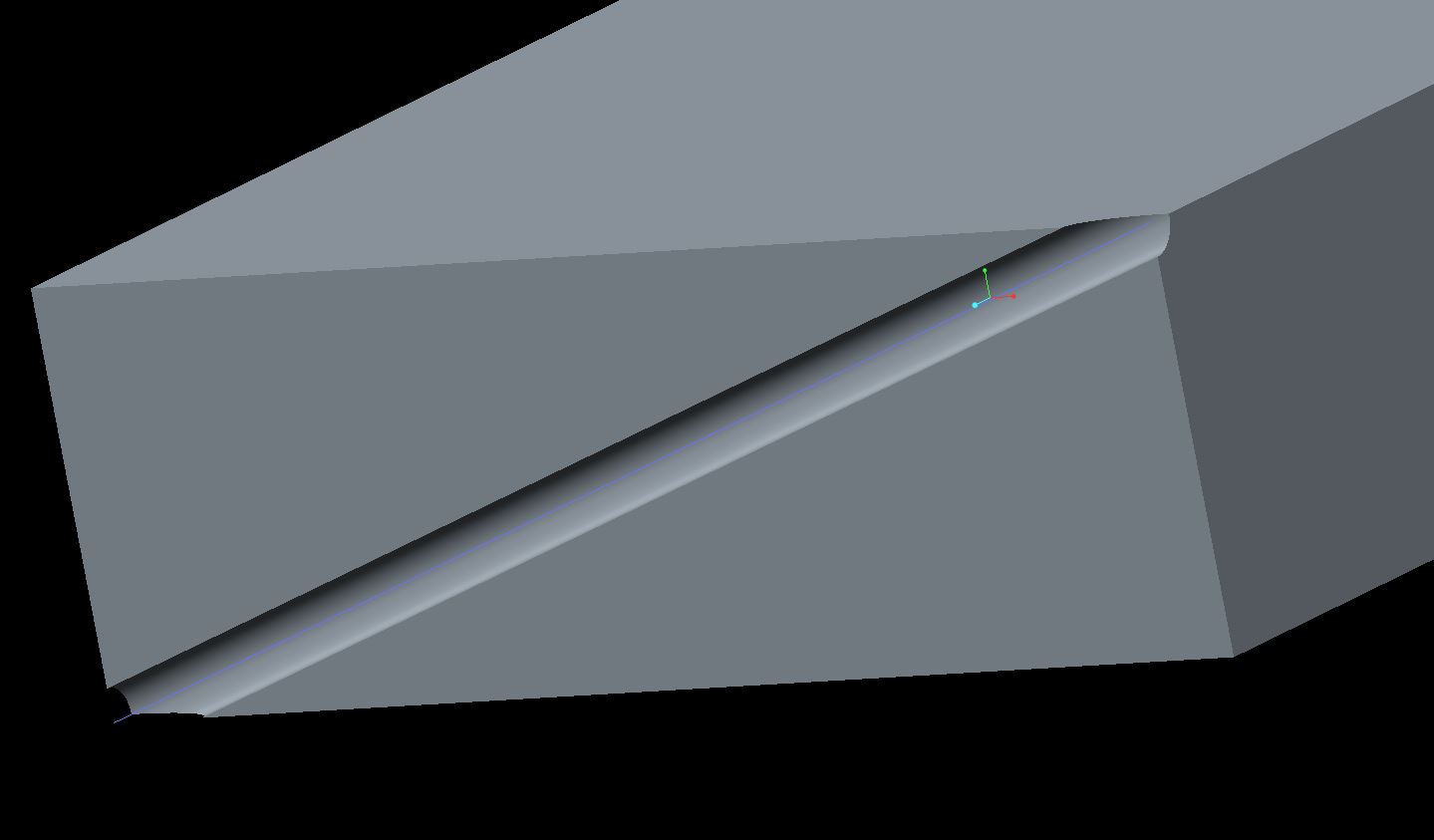

      Like this?


      Translate
      Patriot_1776
      Patriot_177622-Sapphire II
      22-Sapphire II
      Nov 21, 2013 7:22 PM UTC

      Gotta create an axis and datum (on the fly to bury these features if you wish), then remove the datum reference first, then re-select the axis, THEN the datum (a pain), but it works and is pretty easy.

      Translate
