Question

Measure Results in Mechanisms

  • April 18, 2016
  • 4 replies
  • 2298 views

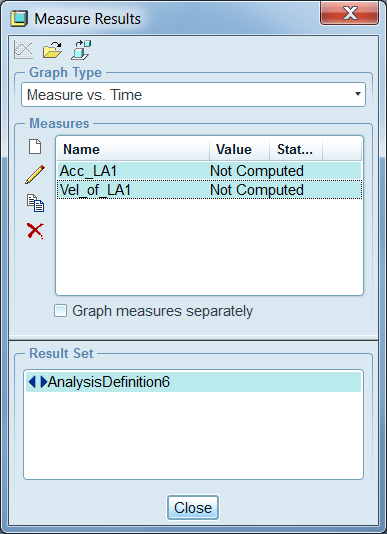

I have tried every combination of selecting measures and a result set but cannot get the graph icon at the top to become enabled so that I can actually compute the measures.  I take it I am missing something obvious.

    4 replies

    M
    mdehnel1-VisitorAuthor
    1-Visitor
    April 18, 2016

    So it does report position measurements correctly, looking into what limitations there are for determining the velocity and acceleration

    R
    rubenvillarreal14-Alexandrite
    14-Alexandrite
    April 20, 2016

    Run the analysis again, I believe that some measures need to be defined before run the analysis.

      J
      jsoerensen1-Visitor
      1-Visitor
      April 22, 2016

      I see that you want to measure velocity an acceleration, so I guess you have to run the analysis as dynamic.

      Did you run it as a dynamic analysis?

      R
      rstrebinger1-Visitor
      1-Visitor
      April 29, 2016

      Try running a kinematic analysis ... default is position.

      T
      TomD.inPDX17-Peridot
      17-Peridot
      April 30, 2016

      If you do not have the mechanism dynamics extension, there are a lot of invalid option here.  If it is valid, it will show up as computed.
