Model Interrogation

  • July 28, 2011
  • 1 reply
  • 3867 views

1) How can i search a model to, for example, find all inside corners that are < .1875.

2) Is there a way to quickly find the Length, width, and height of a model without having to measure each one.

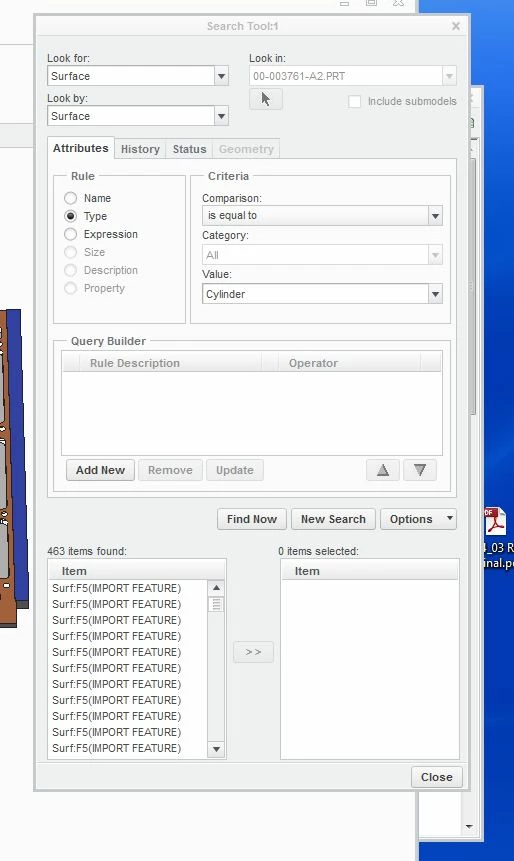

I have attached a screen shot showing where i am at to this point. Any feedback would be appreciated

Thank you

Jim

    1 reply

    N
    NickMihelich12-Amethyst
    12-Amethyst
    July 28, 2011

    Try using ...

    New Picture (1).bmp

    in the Geometry collection box add your entire part that should tell you the minimum radius

    A
    Anonymous
    July 28, 2011

    Thanks for the quick reply Nick. Yes, this works to give me the absolute smallest (or biggest) radius.

    I am trying to use this information to tell me what the smallest end mill will be. In my previous attachment the results i got are close but i need to be able to refine the search by using some size criteria but i am not sure what options to select.

    my second question has to do with material take-offs. It would be nice when quoting a job or ordering the material to be able to click a button and get the envelope dims of the part. the closest thing i can see is the model size command button under the analysis menu. it looks like this just gives you the diagonal though???

    i forgot to mention earlier i am using Creo 1.0

    Thanks.

    N
    NickMihelich12-Amethyst
    12-Amethyst
    July 28, 2011

    I just had an idea that might help your second question. Create a manufacturing file with the part in it then create an automatic work peice like this

    New Picture (2).jpg
