Okay, I've never seen this one before...

Forum|Forum|13 years ago
June 26, 2012
6 replies
4456 views

I love love love that ability

J

JWayman

1-Visitor

And on WF2 it doesn't work with Reference Patterns

John

_____

J

JWayman

1-Visitor

Terry,
I think you have hit on the biggest risk with using this functionality. If
you want to make your drawing notes parametric (and who doesn't?), then you
will have trouble, because (at least in WF2) the hidden instances are
counted in the total number of instances. Thus, for a pattern of 10 holes, 3
of which are hidden,the note "&p31 holes" will show as 10 holes, even though
the 3 that are hidden should not be included.

It's nearly very good indeed...

John

_____

C

cfly

1-Visitor

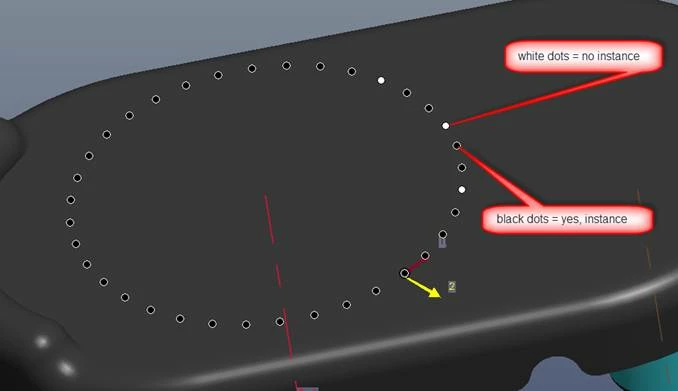

It does on build M280; I just redefined a pattern to omit two instances, and
when I regenerated the next level assembly, the inserts that were reference
patterned to it vanished. The number of instances in the note also updated
to reflect the omitted instances.

efefefefefefef

Applied Research Labs

University of Texas at Austin

Carol Fly

Mechanical Designer

(512) 835-3397

Fax (512) 835-3259

efefefefefefef

_____

C

cfly

1-Visitor

Very strange, though - why would it work correctly in WF 2 and not in WF 4?
Did they break it on an update, or add a config option and made the default
counter to what most people would want? Not like we haven't seen that
before...

Terry - did you do a regen before checking the note? Perhaps it didn't
update the number of instances because it hadn't recalculated everything?

Carol

efefefefefefef

Applied Research Labs

University of Texas at Austin

Carol Fly

Mechanical Designer

(512) 835-3397

Fax (512) 835-3259

efefefefefefef

_____
