Representation of a double plane section

Hello everyone,

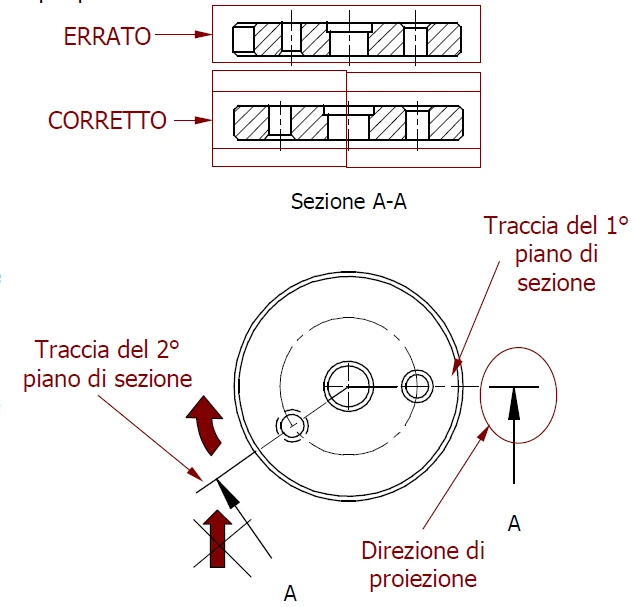

I'm a Creo 2 user and I'm having a problem with the representation of sections made with 2 planes. The attached image shows the exact problem I have.

The section is projected perpendicularly to the parent view and represents the component cutted. It should represent instead the section always perpendicular to the section planes.

Do you know how to solve this error?

Thank you in advance.

13 replies

TomD.inPDX17-Peridot
17-Peridot
Jun 21, 2013 1:54 PM UTC

You need to specify "unfolded section"

Translate
TomD.inPDX17-Peridot
17-Peridot
Jun 21, 2013 2:12 PM UTC

Strange behavior for this style of view.

First; how are you defining this section? As an offset or a zone?

You need to do the offset section where you sketch the section in an open sketch.

If you have a parent view (projection parent) you get the option of Full(Aligned)

If you do not have a parent view, you get the option of Full(Unfold)


Translate
ptc-37952891-VisitorAuthor
1-Visitor
Jun 21, 2013 3:12 PM UTC

Thank you Antonius,

it has been very helpfull.

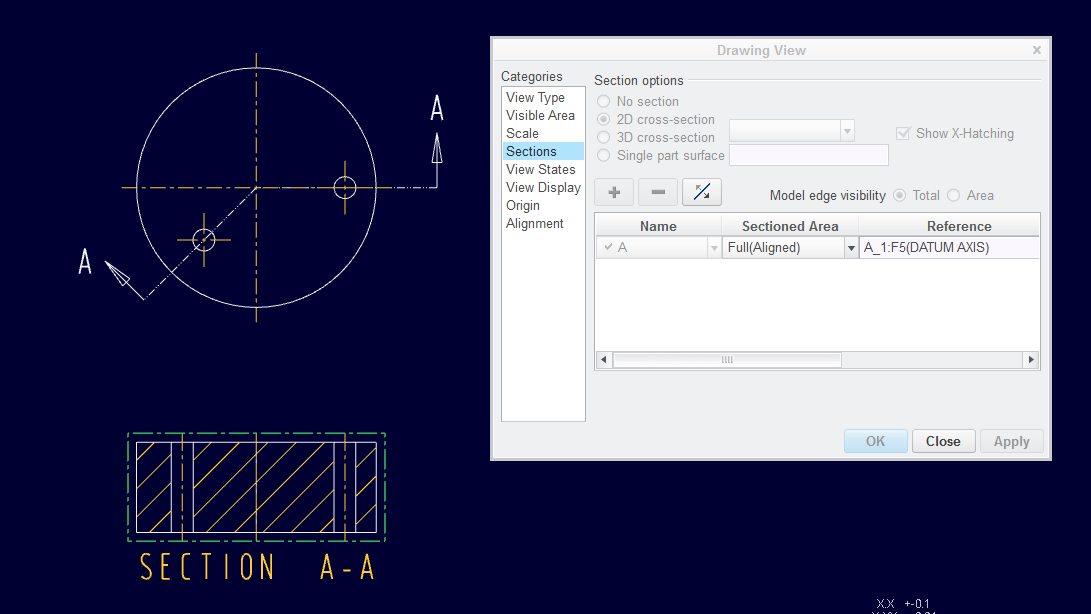

My section was an "offset" one but I didn't know the options "full alligned" and "full unfold".

I still have some problems due probably to some bad setting (the hatch is incomplete).

I'll try to solve them.

Thank you for the help.
