Question

Ribbons, ribbons, everywhere!

  • October 21, 2015
  • 4 replies
  • 2602 views

For fun......but with future applications.


      4 replies

      R
      rubenvillarreal14-Alexandrite
      14-Alexandrite
      October 21, 2015

      Nice!

      I have to ask, how do you did it?

      Patriot_1776
      Patriot_177622-Sapphire IIAuthor
      22-Sapphire II
      October 22, 2015

      .....fun?  There may be a use for that down the road.  I'm playing with how i can use it, I have a idea.  No current need, just an Olde Dog learning new tricks....

        Patriot_1776
        Patriot_177622-Sapphire IIAuthor
        22-Sapphire II
        October 23, 2015

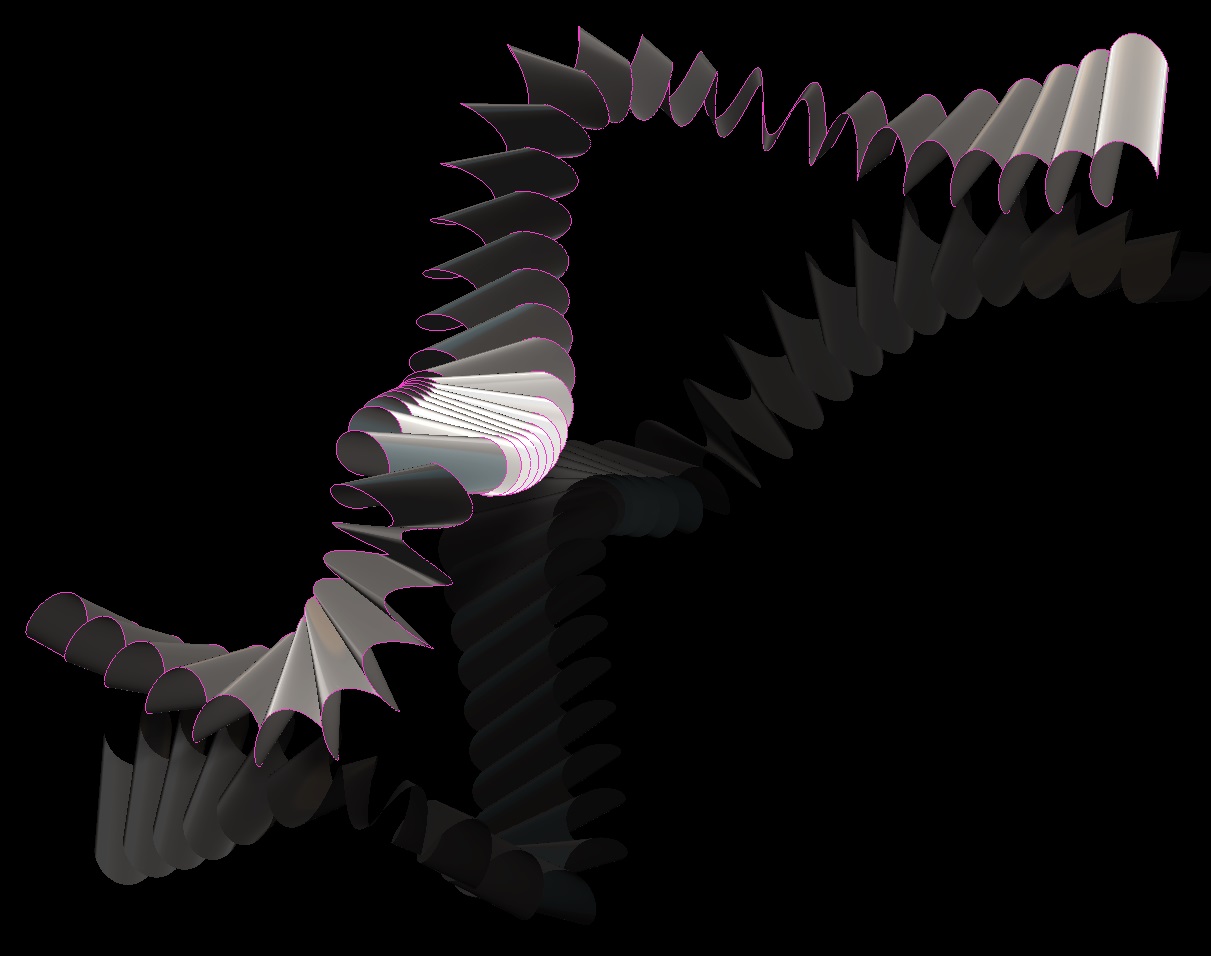

        For reference, the shape has waves in both the X AND Y direction.

        Patriot_1776
        Patriot_177622-Sapphire IIAuthor
        22-Sapphire II
        October 23, 2015

        Oh my.......  Dunno why it shows in some areas with the edge segmented, a curvature analysis of the edge shows it correct........???


        B
        BHOoi16-Pearl
        16-Pearl
        October 24, 2015

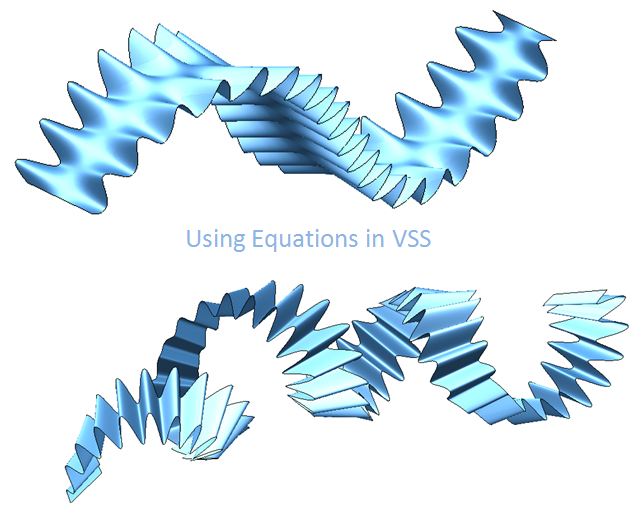

        Hi, Frank. My versions looks like below:

        Is this the way you modelled it ?vss.JPG

        Patriot_1776
        Patriot_177622-Sapphire IIAuthor
        22-Sapphire II
        October 26, 2015

        Actually, I don't think the top one is, but the bottom one looks close.  I can't open your files.  May be a version issue or if you're using a student version.  I can open it if you save it ass a STEP file.

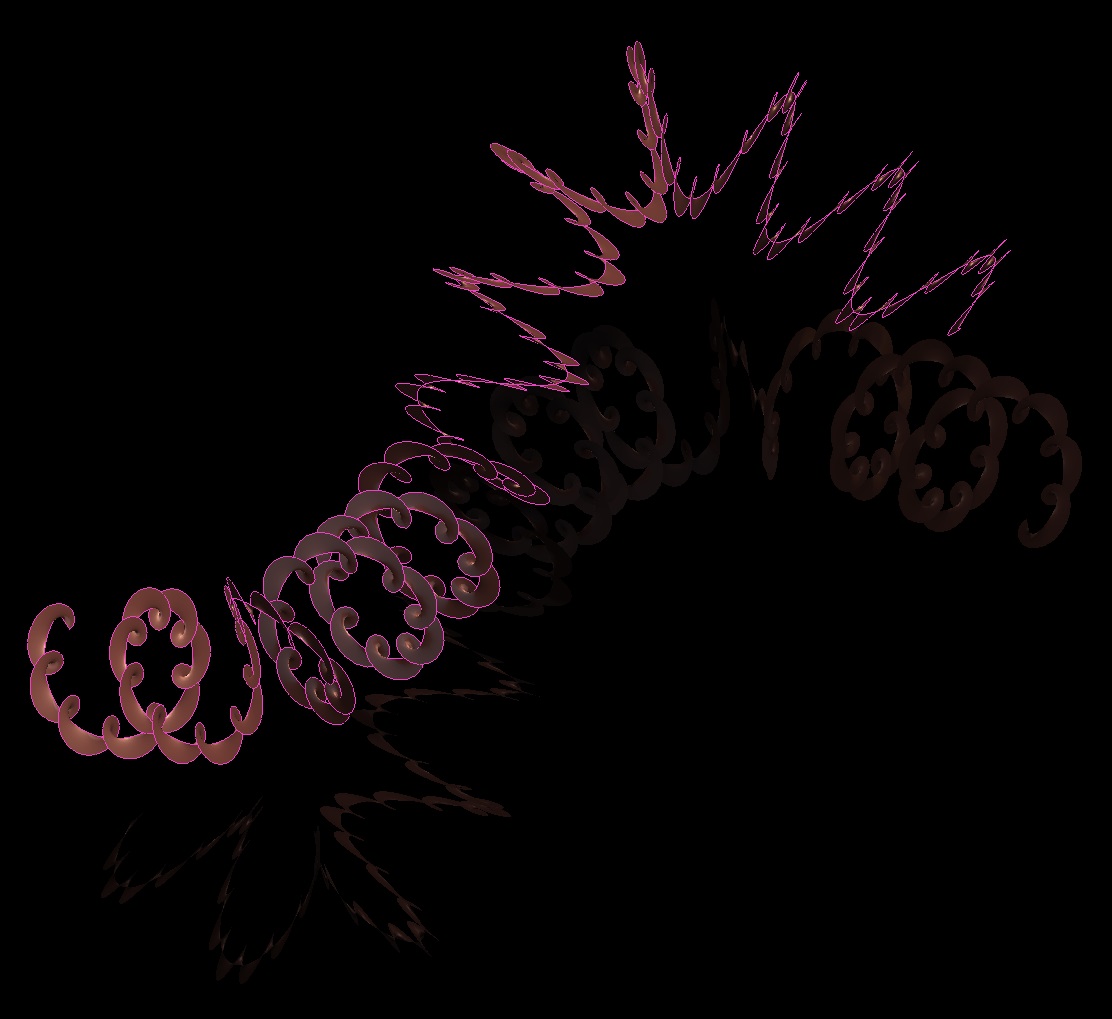

        The copper one is an epicycloid.

        Can you open the STEP file I attached for the first one?  That should tell you.

        R
        rubenvillarreal14-Alexandrite
        14-Alexandrite
        October 25, 2015

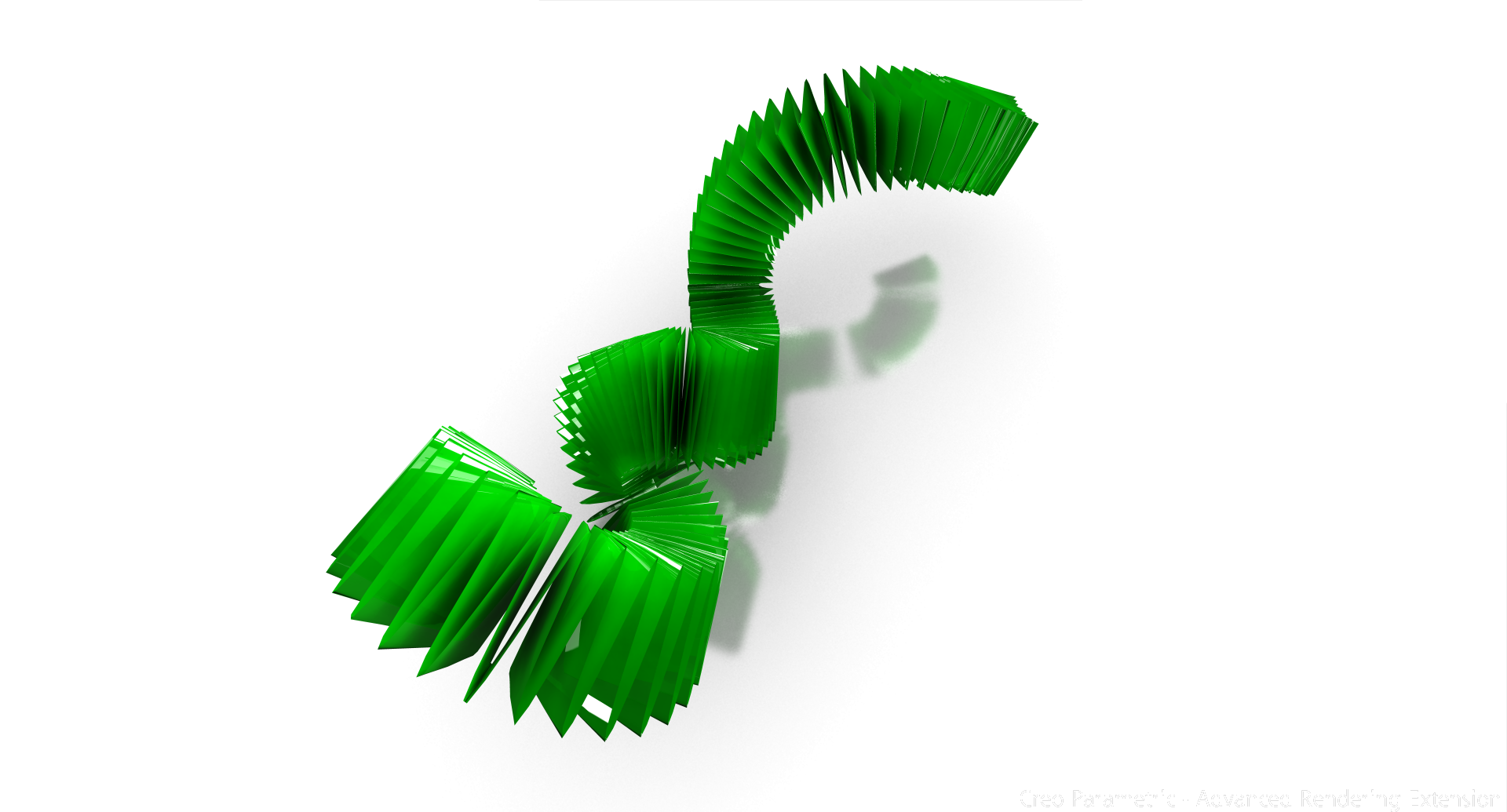

        Fun.png/Nice challenge
