Question

Rotate a component in an Explode State

  • February 19, 2008
  • 5 replies
  • 2181 views
Pros,


Is there a way to rotate a component in an Explode State?

Thanks,

David

    5 replies

    A
    amedina1-Visitor
    1-Visitor
    February 19, 2008
    Yeah that would be great! I have had that desire since I started
    making exploded states. Some times every thing is very neat but there is
    one little thing you need to show on the drawing, and it is on the
    opposite side or maybe there is no space on the available drawing
    format or you just want to maximize the aspect ratio to the format. The
    only way is to adjust the rotation of some components. What about pro
    process? Some times you really just want to show a component in an odd
    rotation against its final location. Maybe you got a ball socket asm and
    the rest location is not good for showing some property of the assembly,
    so you need to rotate the ball joint. For example you need rotation in a
    suspension for a car or in a robotic arm or a set of gears or
    synchronous blades. Some times you want to show the rotation of the
    assembly.


    K
    kschoonover1-Visitor
    1-Visitor
    February 19, 2008
    All,

    As a reminder, mechanism snapshots can be used for anything that's
    assembled with joints (robotic arms, suspensions, etc). The snapshots
    can be toggled to be available in the drawing and will show up in the
    explode state list. Other work-arounds for non-mechanism systems are to
    get creative with simplified rep by substitution using interchange
    groups or use assy family tables (both require AAX).

    As for a general, rotated explode state, I agree that this is needed
    capability. Please put in enhancement requests for this sort of stuff (
    J
    jnanesh.sajjan1-Visitor
    1-Visitor
    February 5, 2010
    Hi

    I am facing a issue while making drawings in Pro-e (WF3, M230)

    I inserted a view and added its side views (selecting view and right click - insert projection view). And, did some work on other sheets.

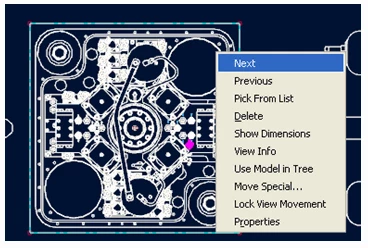

    Now, came back to this view again and tried to insert one more projection view (bottom) and I am not able to get the link "Insert projction view". (see attached snap shot)

    Any clue?

    Thanks & Regards,

    Jnanesha KS

    T 91-80-4119 0900 Ext: 466
    F 91-80-41190901
    M 994 500 4179
    -
    www.quest-global.com
    M
    mainman1-Visitor
    1-Visitor
    February 5, 2010
    Your image shows you have it highlighted over not selected, Select it
    and your projection should be available



    Sincerely,

    Rick L.
    Design Draftsman: Husky Corporation



    V
    vmcdaniel1-Visitor
    1-Visitor
    February 8, 2010
    Wildfire 5.0 has rotation capabilities in explode states. PTC listened and delivered, wow!

    In Reply to Kevin Schoonover:
    All,

    As a reminder, mechanism snapshots can be used for anything that's
    assembled with joints (robotic arms, suspensions, etc). The snapshots
    can be toggled to be available in the drawing and will show up in the
    explode state list. Other work-arounds for non-mechanism systems are to
    get creative with simplified rep by substitution using interchange
    groups or use assy family tables (both require AAX).

    As for a general, rotated explode state, I agree that this is needed
    capability. Please put in enhancement requests for this sort of stuff (
    https://www.ptc.com/appserver/cs/misc/PTC_Enhancement_Process.jsp)
    because if customers don't ask it won't happen.


    Regards,

    Kevin


    Kevin Schoonover
    PTC Channel Technical Manager
    Western North America
    Office: +1 (805) 210-2568 (New as of 11/26/2007)
    Cell: +1 (805) 558-8046



    <http://www.ptc.com/company/tl/index.htm>



    ISE Corporation
    http://www.isecorp.com
    12302 Kerran Street
    Poway, CA 92064
