Shell doesn't work? [Newbie]

Hi guys,

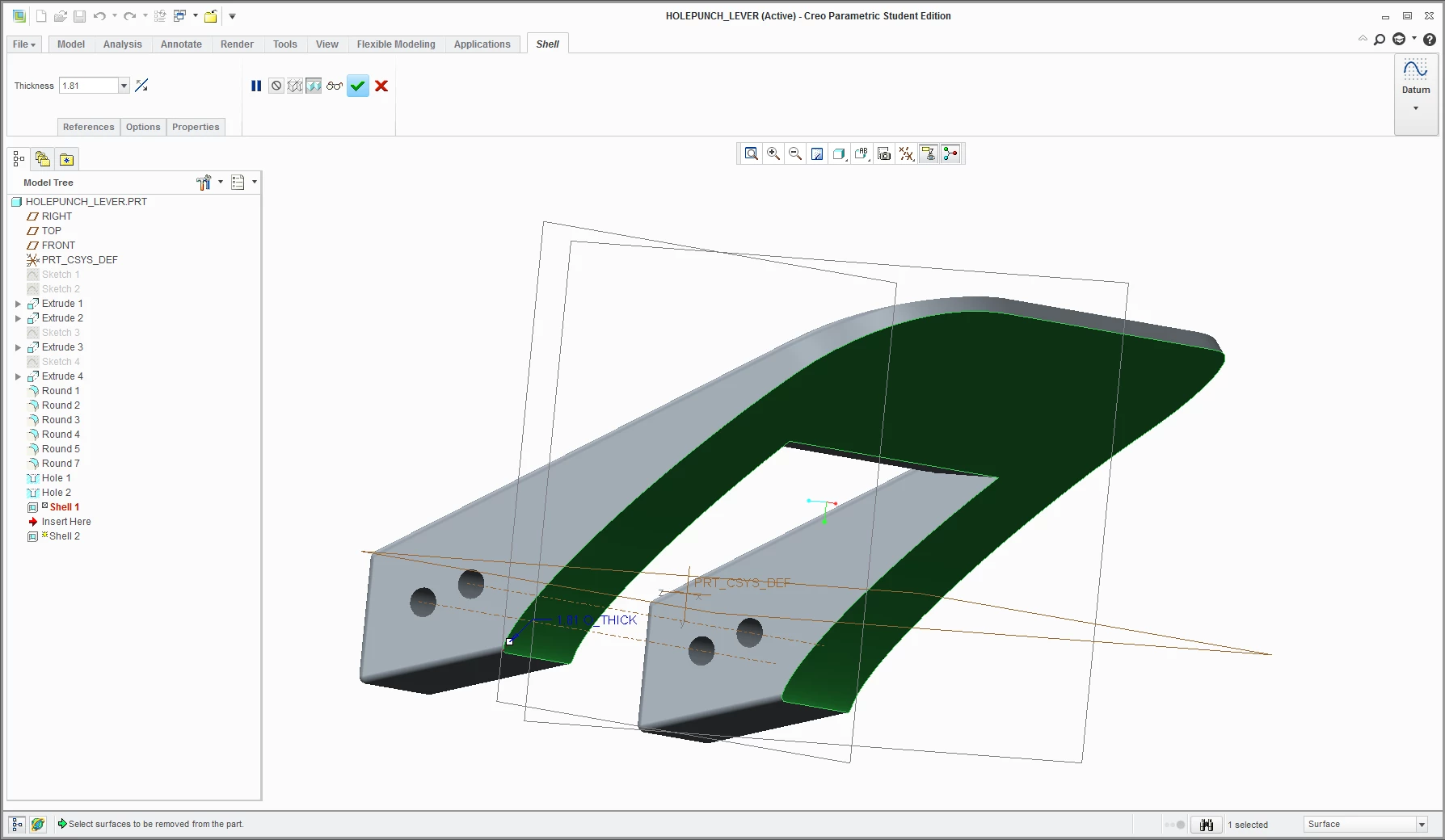

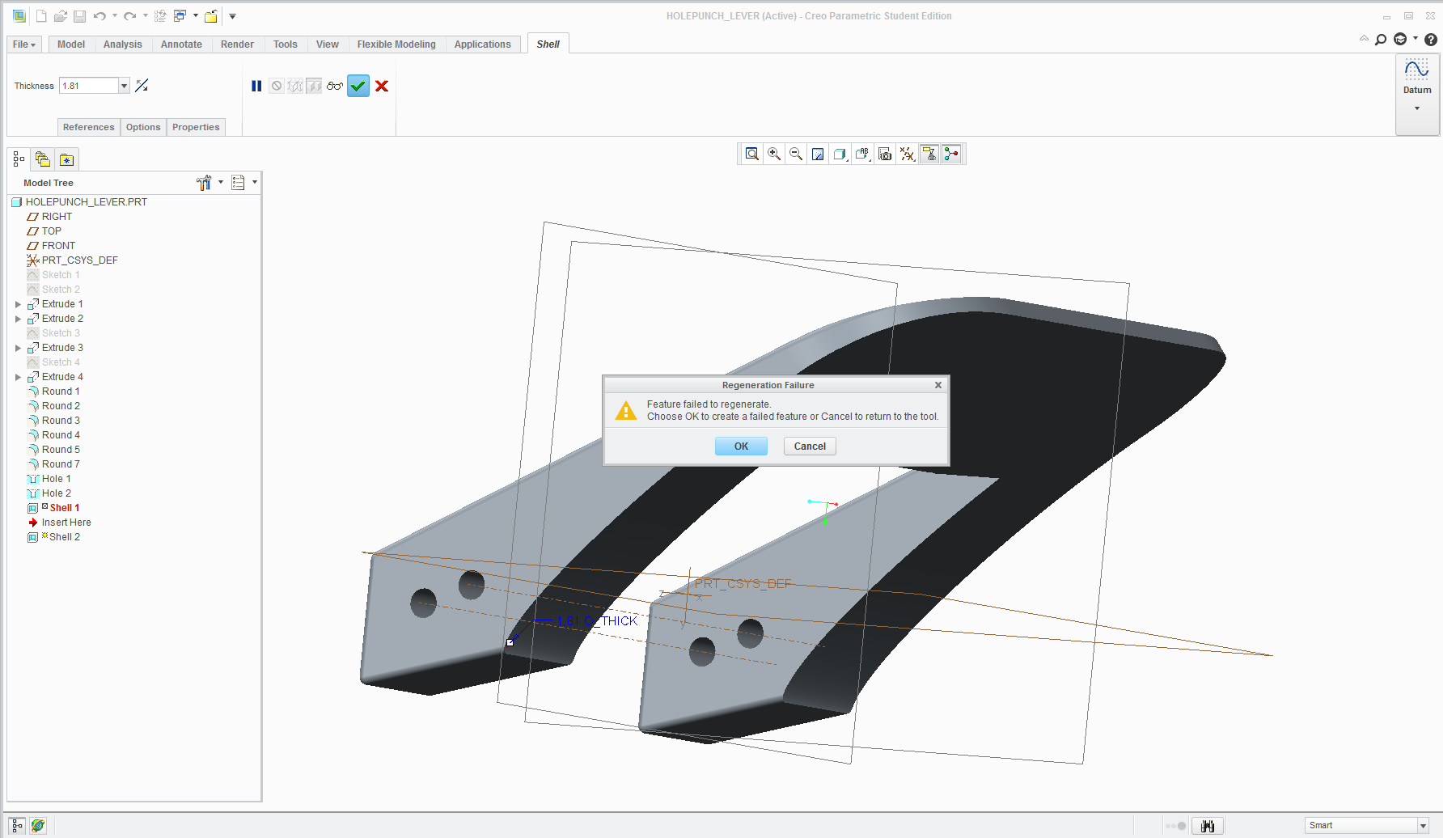

I'm trying to shell this shape, but it keeps saying it fails. Do you know what I'm doing wrong?


Btw it's the underside that I'm trying to hollow out.

Thanks

    TomD.inPDXAnswer
    17-Peridot
    Apr 13, 2014 3:31 PM UTC

    Shell will fail if the part has rounds that are smaller than the shell thickness you are trying to create. Shell really is not very smart. Move it to a much earlier location in the model tree before rounds, chamfers and holes are added.

    View in thread

    6 replies

    TomD.inPDX17-PeridotAnswer
    17-Peridot
    Apr 13, 2014 3:31 PM UTC

    Shell will fail if the part has rounds that are smaller than the shell thickness you are trying to create. Shell really is not very smart. Move it to a much earlier location in the model tree before rounds, chamfers and holes are added.

    Translate
    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    Apr 14, 2014 2:27 PM UTC

    If I remember there's also some special tools now to handle these areas. Look up in the menu bar and see what the options are.

    Translate
    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    Apr 14, 2014 9:30 PM UTC

    Reuben,

    As Antonius mentioned this may occur due to rounds that are smaller than the shell thickness. For a confirmation you can reduce the value for shell to 0.2 or some smaller value. This will give an idea whether shell is failing due to self-intersecting surface creation.

    Translate
      rgoh1-VisitorAuthor
      1-Visitor
      Apr 15, 2014 9:07 AM UTC

      Thank you all for your help, I moved the shell process to earlier on in the tree and it works fine now.

      Thanks guys!

      Translate
      Dale_Rosema
      Dale_Rosema23-Emerald IV
      23-Emerald IV
      Apr 15, 2014 11:55 AM UTC

      Don't forget to mark the question as answered for those who follow behind and search on this topic.

      Translate
        ryankelley1-Visitor
        1-Visitor
        Apr 15, 2014 2:11 PM UTC

        Thanks for always reminding members to mark the question as answered, Dale. It goes a long way to helping us verify the knowledege shared here on PTC Community.
