Is there a way to show multiple results of Measure > Distance on the screen at the same time?

TYIA

    4 replies

    M
    MikeBrattoli12-Amethyst
    12-Amethyst
    September 23, 2014
    Don,

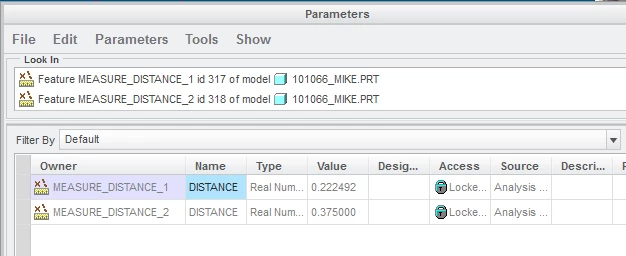

    Only way I know of is to use the Make Feature option for each measurement so they show up in the Model Tree, then highlight them and select Edit Parameters in the RMB. They will then show up together in the Parameters dialog box with their requisite values.

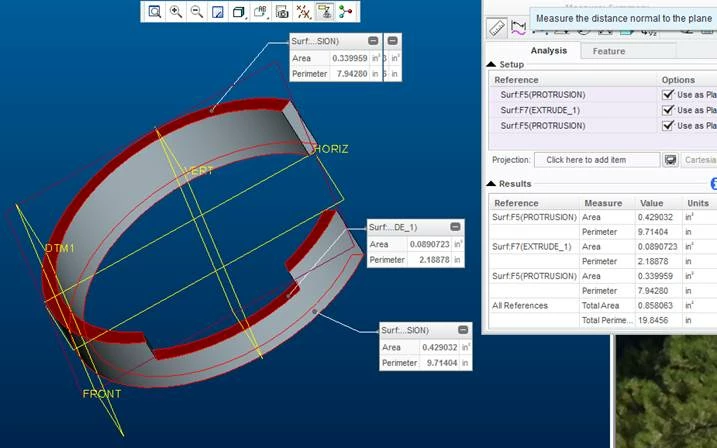

    What's weird is you can do it for Area and Perimeter (see image) but Distance doesn't seem to want to "cooperate". The Measure Distance dialog will return and error stating "Distance/Angle/Transform require exactly two references"

    [cid:image001.jpg@01CFD70F.14A67BD0]

    Wish I could have given you a better answer

    Mike Brattoli
    Moen Incorporated

    M
    MikeBrattoli12-Amethyst
    12-Amethyst
    September 23, 2014
    Forgot this image

    [cid:image001.png@01CFD70F.335F2B30]

    Mike Brattoli
    Moen Incorporated
    R
    RandyJones20-Turquoise
    20-Turquoise
    September 23, 2014
    On 09/23/14 08:04, Senchuk, Donald wrote:
    >
    > Is there a way to show multiple results of *Measure > Distance* on the screen at the same time?
    >

    A very good way is to save each measurement as an analysis. You can then manage the display of these
    saved analysis.
    http://support.ptc.com/cs/help/creo_hc/creo20_hc/index.jspx?id=fund_five_sub-to_save_and_view_a_measurement_as_a_saved_analysis&action=show
    M
    MikeBrattoli12-Amethyst
    12-Amethyst
    September 23, 2014
    Great suggestion Randy - totally forgot about that one!

    Mike Brattoli
    Moen Incorporated
