sketcher subtleties

  • December 12, 2013
  • 3 replies
  • 1733 views
Hello again

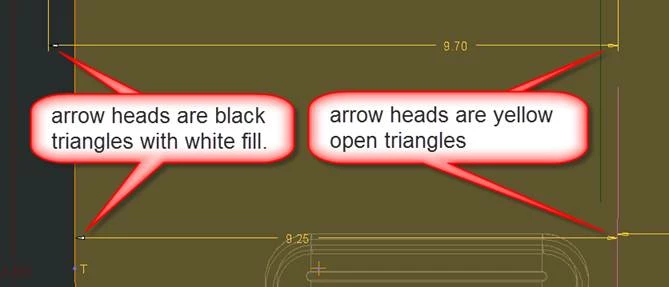

Has anyone noticed a different type of arrow head in sketcher? What does it
mean? Check out this image:







Thanks ,



-Nate





    3 replies

    A
    Anonymous
    December 12, 2013
    Nathan,
    The white filled triangles represent drag handles in sketcher. You can drag the arrow to change the length of the sketch feature.

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    December 12, 2013
    I see the same thing. I created a reference dimension in the sketch and it doesn't do that.

    I thought maybe it was the first pick/second pick but no.

    When I converted a real dimension to reference, the arrows changed to just unfilled yellow


    P
    PaulMailloux1-Visitor
    1-Visitor
    December 12, 2013
    It looks like a dimension with 1 white arrow is strong.

    A dimension with both arrows white is weak

    And a dimension with no white arrows is reference



    Paul
