Solid Geomentry Mirror in Creo-2??

Can anyone help me how to do solid geomentry mirror in Creo-2?? where in wildfire-5 i had this option for solid geomentry mirror.

    Mahesh_Sharma
    Mahesh_SharmaAnswer
    22-Sapphire I
    April 4, 2014

    Hi Ananth,

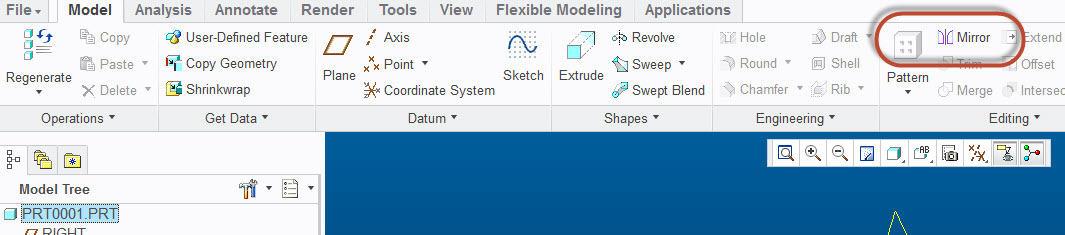

    I think you would like to mirror the solid features in part, Select part name in Model Tree > Select Mirror in Editing group (By default it will remain inactive and will activate once feature or part is selected) > Select Mirror plane > Ok



    View in thread

    9 replies

    TomD.inPDX17-Peridot
    17-Peridot
    April 2, 2014

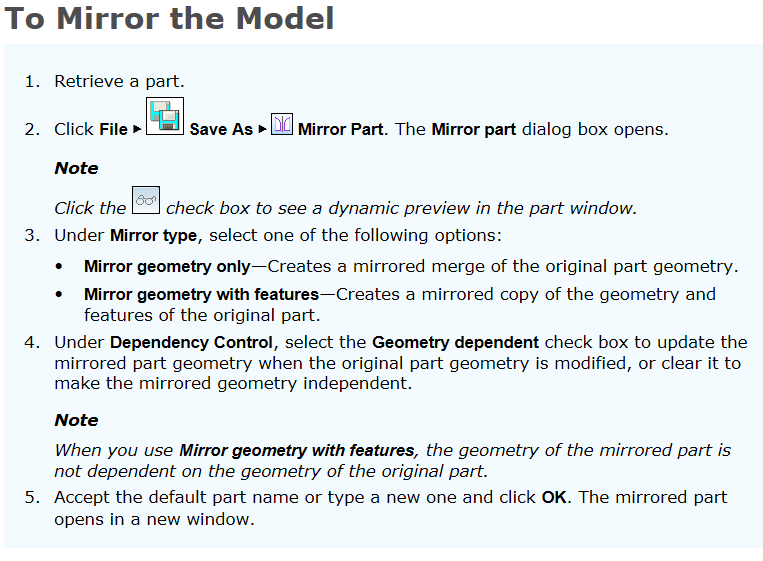

    You can do a "save-as mirror" And you still have the mirror feature.

    Translate
    aselvaraj-21-VisitorAuthor
    1-Visitor
    April 4, 2014

    Thanks for suggestion...but its not matching my requirement...

    Translate
    dgschaefer21-Topaz II
    21-Topaz II
    April 4, 2014

    It used to be that you'd lick the model name at the top of the model tree, then click the mirror icon. I'm not sure where the mirror icon is in Creo and I'm in WF4 these days. I'm sure a command search for mirror would find it.

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    April 4, 2014

    If you look at the file created using save-as, the last feature would be a mirror geometry feature.

    Translate
    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire IAnswer
    22-Sapphire I
    April 4, 2014

    Hi Ananth,

    I think you would like to mirror the solid features in part, Select part name in Model Tree > Select Mirror in Editing group (By default it will remain inactive and will activate once feature or part is selected) > Select Mirror plane > Ok



    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    April 4, 2014

    Unfortunately, this does not suppress or hide the original features. It simply adds the mirrored geometry.

    The Save-As version can be fully independent and uses a Mirrored-Merge feature which cannot be initiated in the active part. This is done by re-creating the full feature set and then doing a single mirror-merge function on the part similar to what you are suggesting. The only downside is that you cannot move the "insert here" bar above this feature in the model tree.


    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    April 4, 2014

    Of course, the next question is... if you already have the drawing for the first part, how do you have that drawing go with the save-as part so you don't have to start over

    Translate
