Question

Toroid inductor coil

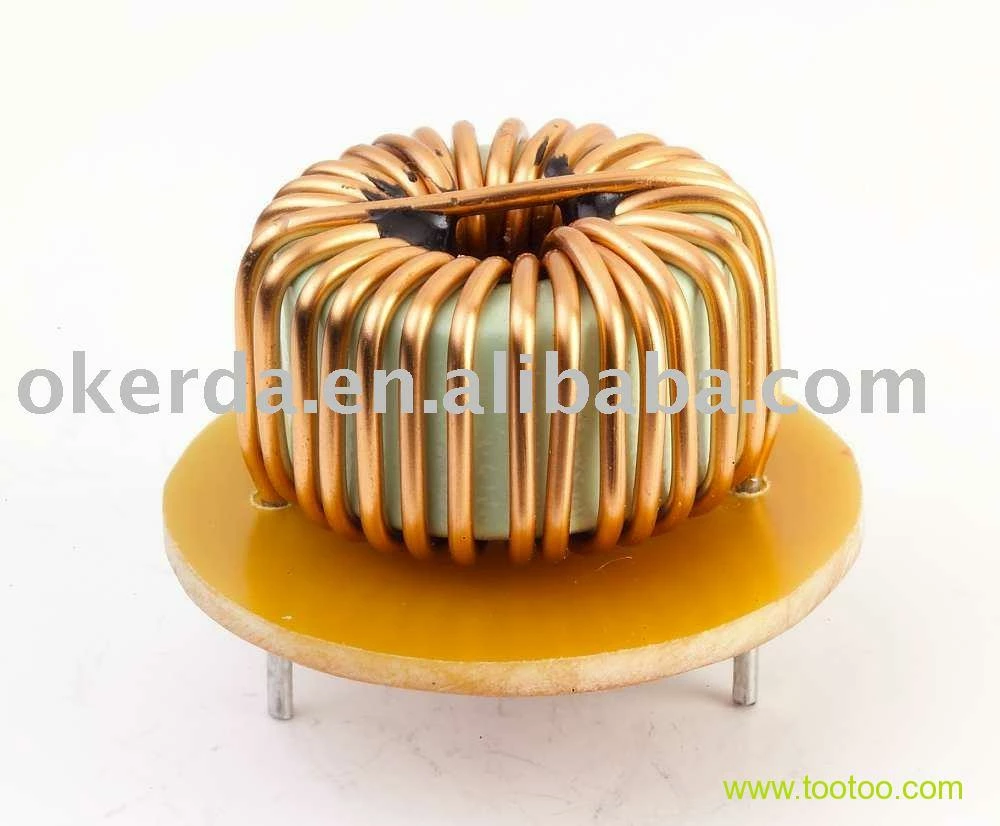

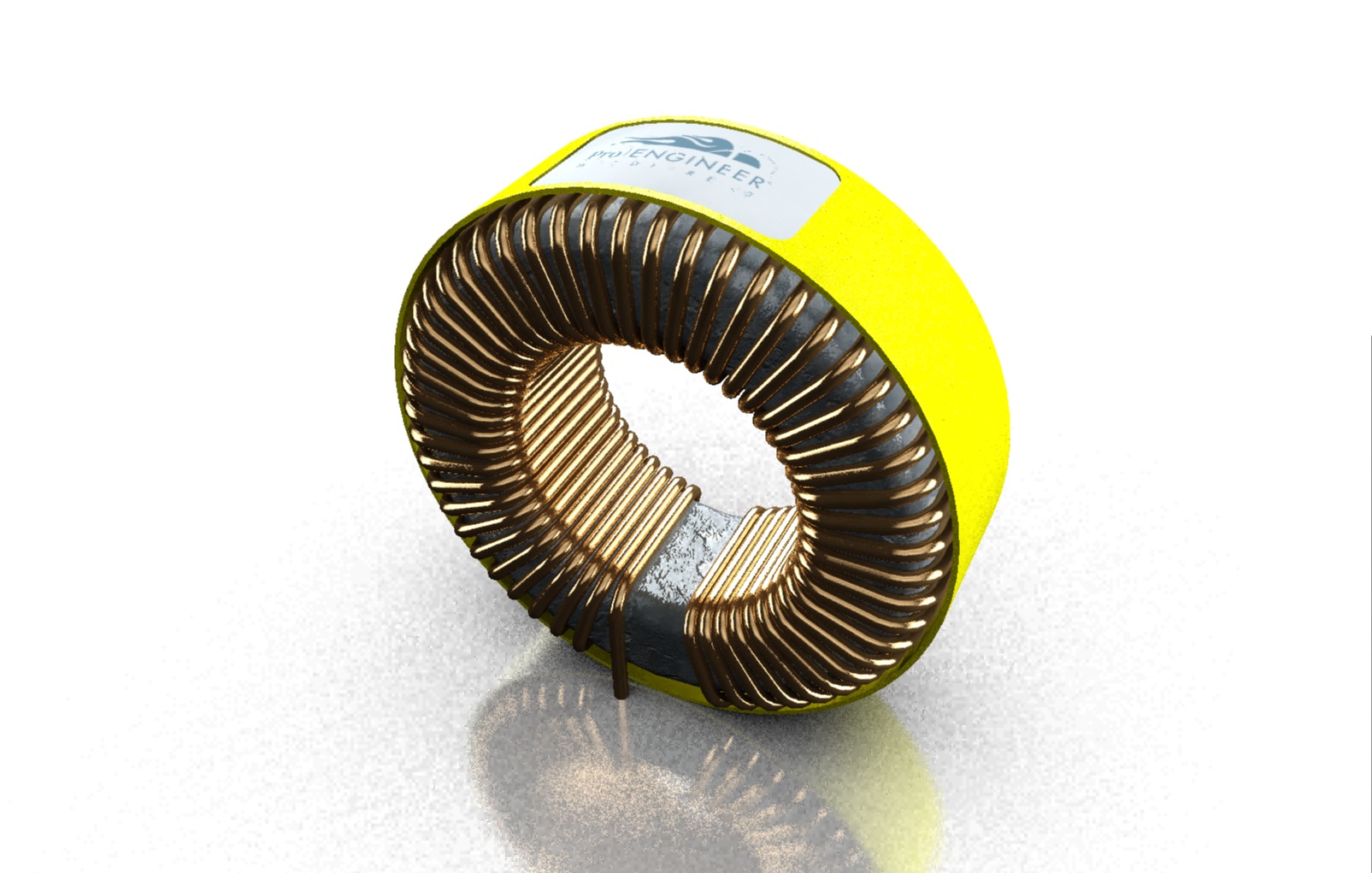

I like some help with creating an inductor toroid coil as seen here in the attached picture.

    7 replies

    TomD.inPDX17-Peridot
    17-Peridot
    May 11, 2013

    How close to accurate and detailed do you need it?

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    May 11, 2013

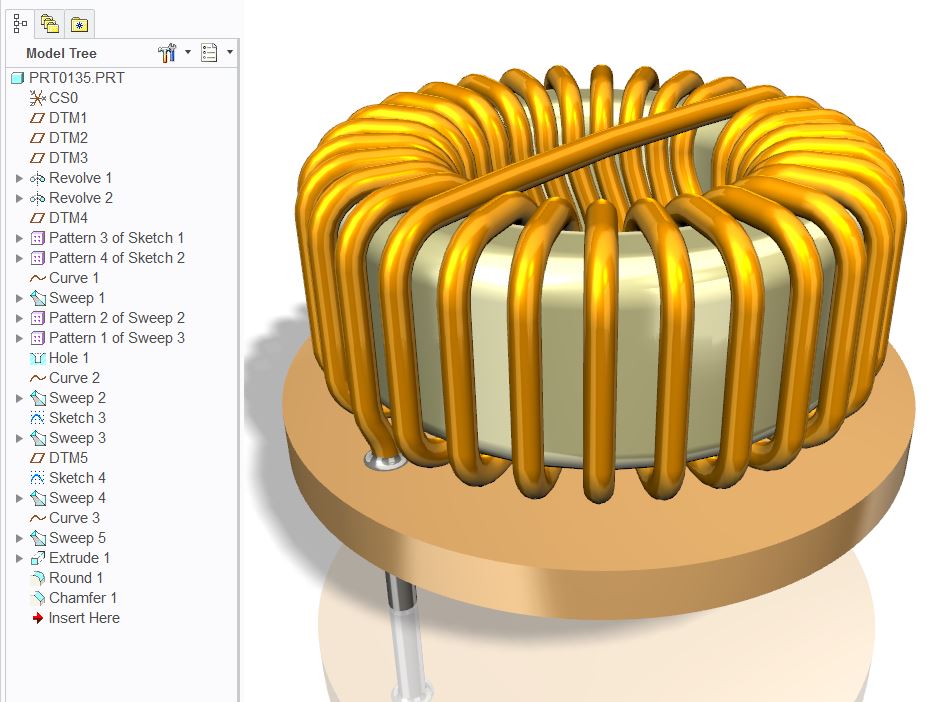

    This is normally overkill, but it would look something like this:


    Many patterned sweeps and a few point-to-point datum curves.

    Creo 2.0 file attached.

    Translate
      VladimirPalffy14-Alexandrite
      14-Alexandrite
      May 13, 2013

      Dear Kevin

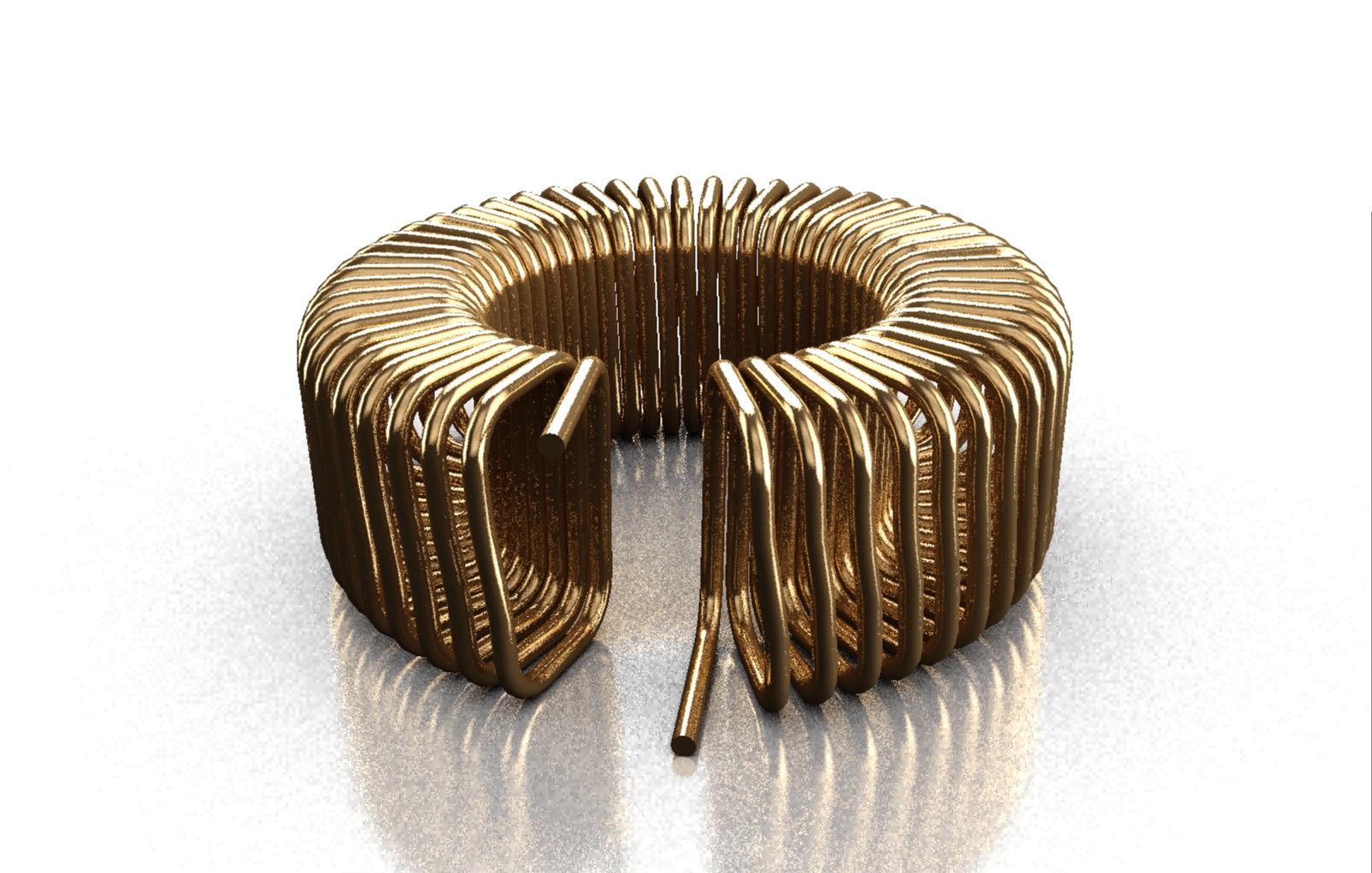

      Many years ago I created this model of Toroidal Coil



      Try to investigate the model tree and you will see that I have used only curves and Sweep feature - it is not necessary to create Pattern feature.

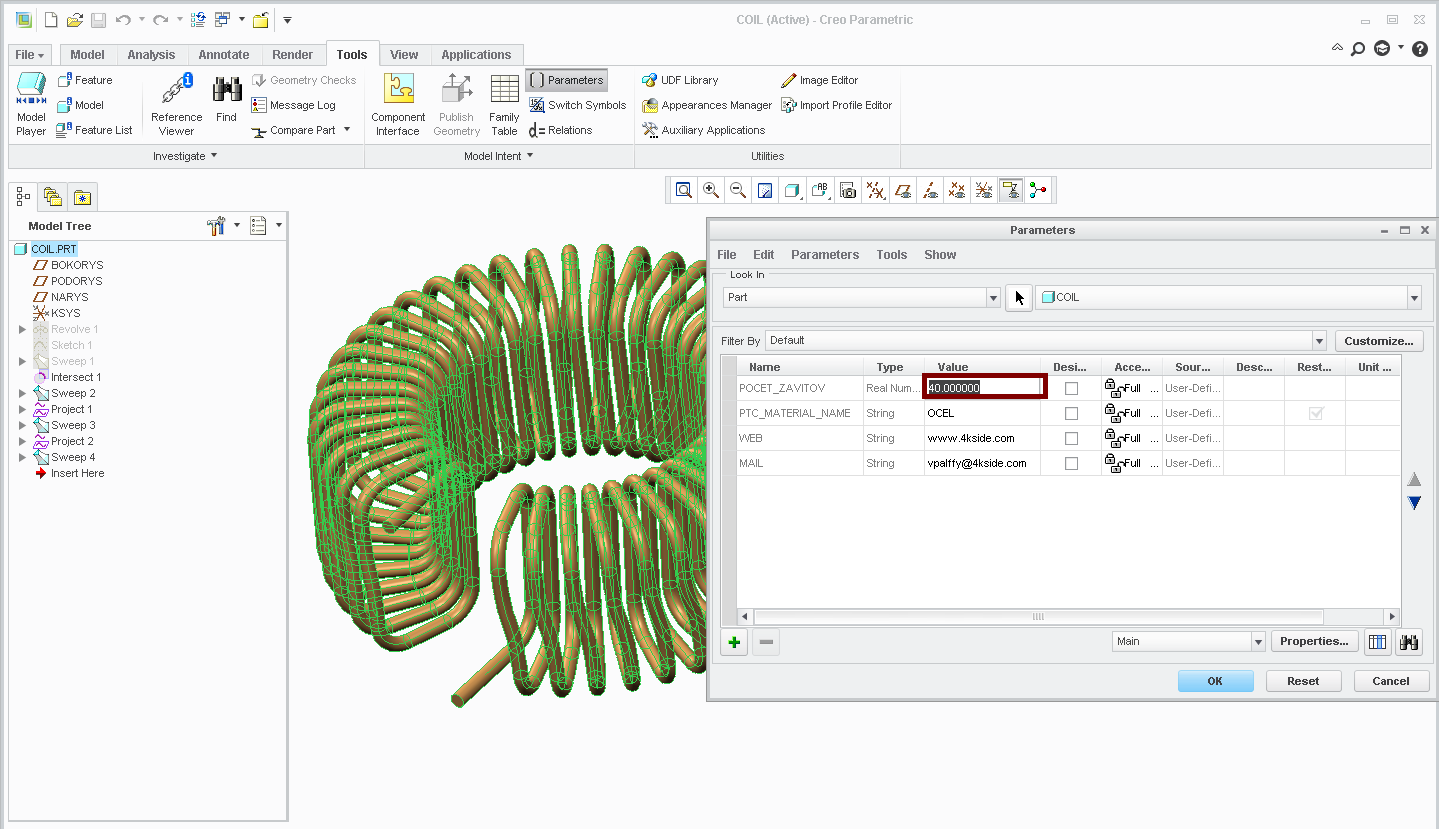

      If you need to manage number of coil thread - you can easy change the Parameter (in my example - POCET_ZAVITOV (slovak name)):


      Here is the Tutorial for you: User defined springs

      Regards,

      Vladimir

      Translate
        TomD.inPDX17-Peridot
        17-Peridot
        May 13, 2013

        Vladimir, is there a reason you don't prefer patterns?

        I considered two things when posting this method;

        • The pattern break at the crossover wire.
        • The level of complexity to construct the model.

        I like the way you intersected the surfaces to create the sweep trajetory but it leaves little room for the interuption requiring two such features.

        In the end, the patterned model with a few sweep sections seems simpler in this particular case.

        Video Link : 4002

        Translate
          VladimirPalffy14-Alexandrite
          14-Alexandrite
          May 13, 2013

          Hi Antonius, I like the pattern feature and sweep feature too - PTC Creo is my favorite.

          Your model is really good, I like it too.

          I wanted to show the other method for you and others members

          Regards,

          Vladimir

          Translate
