UDF for counter bores

Is there anywhere to download some standard user defined features for common features like counter bores? I'm tired of looking up what size of a counter bore I need to make for different screw sizes.

Or should I be doing this with map keys?

    BillChapmanAnswer
    13-Aquamarine
    Jun 23, 2014 8:25 PM UTC

    you could definatley do this using multiple hole files

    UNC_CB.hol for standard SHCAP screws

    UNC_CBL. hol for low SHACP screws

    etc

    In each files set the CB dimensions and associated note you want for each screw size.

    View in thread

    5 replies

    TomD.inPDX17-Peridot
    17-Peridot
    Jun 23, 2014 7:29 PM UTC

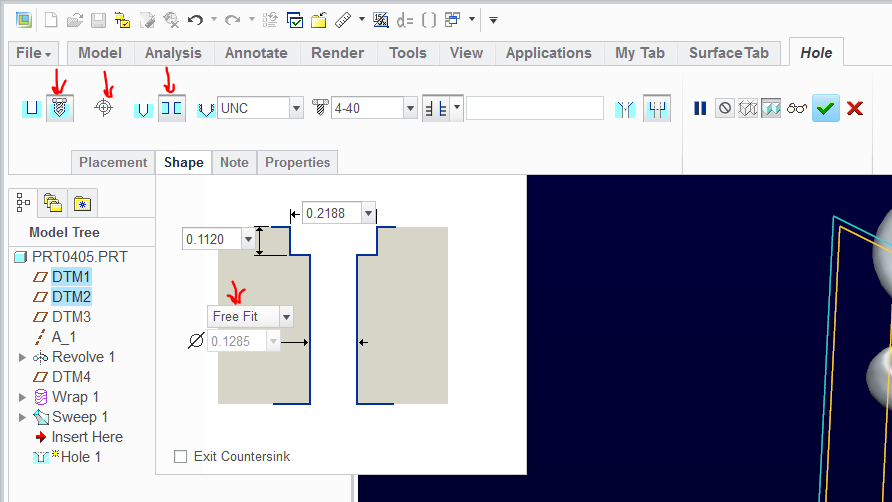

    This should be handled in the standard hole files for clearance holes.

    I don't use them but that should be possible.


    Translate
    ptc-54718781-VisitorAuthor
    1-Visitor
    Jun 23, 2014 7:42 PM UTC

    This would work for standard SHCS but I don't see any option for selecting a size for a low head cap screw or a button head.

    Translate
    BillChapman13-AquamarineAnswer
    13-Aquamarine
    Jun 23, 2014 8:25 PM UTC

    you could definatley do this using multiple hole files

    UNC_CB.hol for standard SHCAP screws

    UNC_CBL. hol for low SHACP screws

    etc

    In each files set the CB dimensions and associated note you want for each screw size.

    Translate
