use a construction line as reference

  • December 3, 2015
  • 1 reply
  • 5925 views

hello

i make a sketch and i want to extrude , but creo don't allow me to extrude because i have intersection

i want  to make a trick ... i want to make there circle  in my case as construction circle and when i exit i want to see in exterior from sketch , i create a three points but i do not see in tree to use as refference and create three holes.

can somebody give me a solution  for my problem ?

construction line as reference.PNG

Thanks,

    Best answer by MartinHanak

    Hi,

    you can create Sketch feature (i.e. planar datum curve) and use it as reference in several following features.

    MH

    1 reply

    M
    MartinHanak24-Ruby III
    24-Ruby III
    December 3, 2015

    Hi,

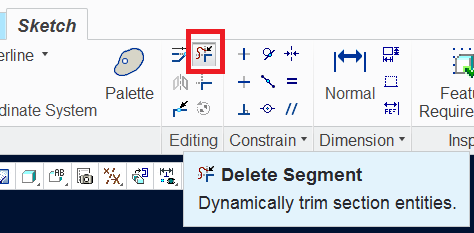

    use command shown on picture to remove unwanted parts of intersected geometry circles.


    MH

    R
    Redro1-VisitorAuthor
    1-Visitor
    December 3, 2015

    yes your answer is good but my idea is to use construction lines in other extrude for example as refference

    is a posibility for this?

    somebody have other ideas?

    tks

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    December 3, 2015

    You can't use construction lines outside of the sketch, they are for construction of the sketch only.

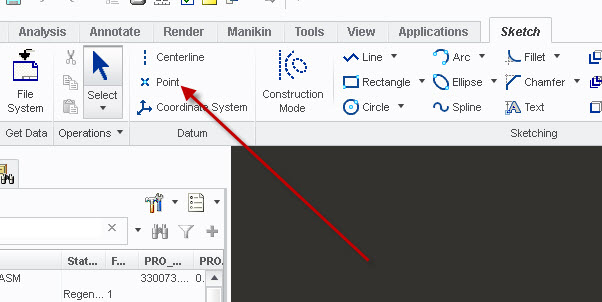

    If you add a datum point within sketcher, it creates a point you can use as a reference  (or an axis if it's a sketch within an extrude.
