Why dimensions in half view are reversed?

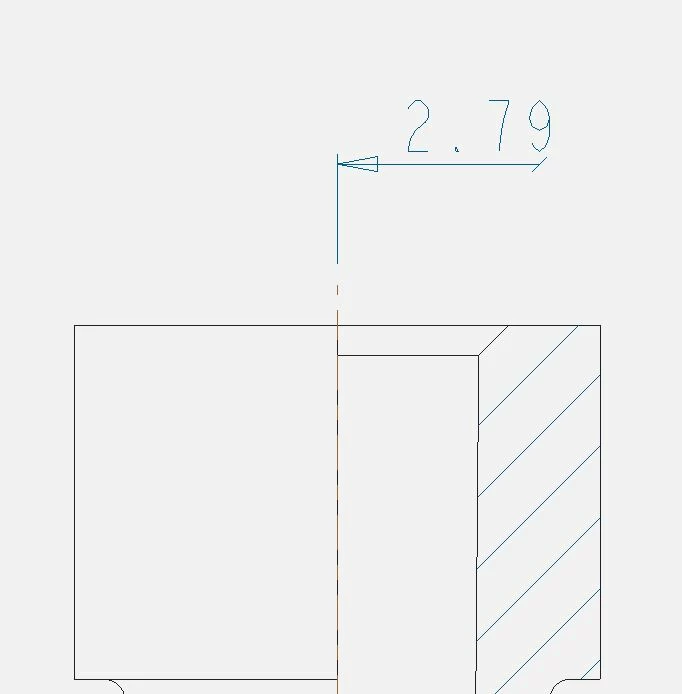

See attached capscreen.

Thank you.

    mbonkaAnswer
    2-Explorer
    November 29, 2016

    Hello Gabriele Benetti

    try following:

    1. Create projected view in drawing

    2. Move dimmension into projected view.

    3. Is it correct now? If yes, change/rotate sketching plane about 90° (in 3D model)

    Don´t any other idea...

    Milan Bonka

    View in thread

    4 replies

    StephenW
    StephenW23-Emerald III
    23-Emerald III
    November 29, 2016

    I'm not sure what you were expecting. If you could give more information, you would likely get some help.

    Translate
    gbenetti1-VisitorAuthor
    1-Visitor
    December 1, 2016

    Hello Stephen.

    When I create manually a quote I have to select two references but in half or broken view I have to select axis like a middle point of dimension.

    Then with right clic I select double value but the quote is not oriented correctly.

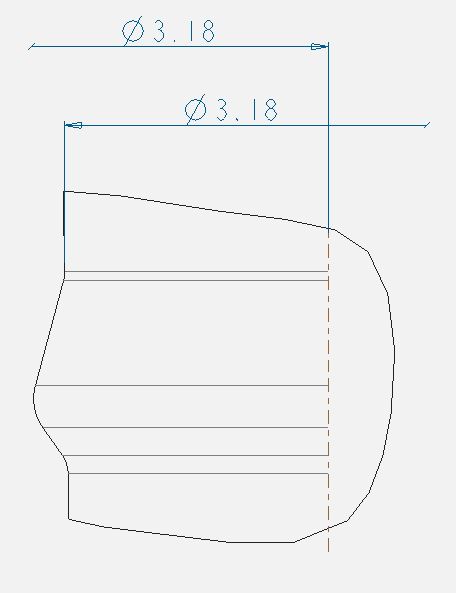

    In the immage you can see the wrong quote (upper) and the right quote (lower) obtained with Milan Bonka suggestion.


    In Wildfire release I haven't this trouble.

    Probably it's a wrong parameter in file config .dtl or .pro

    Thank you Stephen

    Translate
    mbonka2-ExplorerAnswer
    2-Explorer
    November 29, 2016

    Hello Gabriele Benetti

    try following:

    1. Create projected view in drawing

    2. Move dimmension into projected view.

    3. Is it correct now? If yes, change/rotate sketching plane about 90° (in 3D model)

    Don´t any other idea...

    Milan Bonka

    Translate
    gbenetti1-VisitorAuthor
    1-Visitor
    December 1, 2016

    Thank you Milan.
