05 - Multibody - Windchill 12 & Creo 7.0.1

  • September 22, 2020
  • 3 replies
  • 7649 views

Hello Multibody community!



Welcome to a second post on multibody capabilities added in Creo 7.0.1. What I had not yet been fully covering in the last post was how Creo & Windchill interact as it relates to the multibody concept.

So, here a summary of Multibody support for Windchill & Visualization

  • General behavior
    • Multibody parts are managed similarly to single body parts, bodies are not exposed
  • Windchill versions prior to Windchill 12
    • Body designation information is ignored when connected to a Windchill Server version not supporting body designation yet
    • Publishing of multibody parts to Creo View is supported since Creo View 6.1 (including exposure of bodies to Creo View)
  • Windchill 12 & Creo 7.0.1
    • Support of Body designation, including
      • Transfer of Body designation information from Creo to Windchill for models containing designated bodies
      • WT part creation for designated bodies if BOM Designation is set (.prt, .asm)
      • IBA mapping & propagation for body materials and mass property parameters
        • Note on Windchill configuration: those attributes have to be added to the Body (under Model Items) type definition. They need to be part of the type definition similar as typically being done for the CAD Document type.

Here is a quick demo of the above capabilities

(view in My Videos)



Back to Creo 7.0 Multibody Home: Start Here!



Enjoy!....Martin







    3 replies

    M
    Matteo_198716-Pearl
    16-Pearl
    February 25, 2021

    In addition to the steps shown in the video, is it necessary to set preferences in Windchill to view the bodies?

    M
    mneumueller18-OpalAuthor
    18-Opal
    February 25, 2021

    you need add  attribute that you want to transfer them  to the Body (under Model Items) type definition.  They need to be part of the type definition. Otherwise you won't see them with the WT parts.

      M
      Matteo_198716-Pearl
      16-Pearl
      February 25, 2021

      Where can I find a guide? Because i doing everything the same as the video I still don't see the bodies in Windchill

      Ty,
      Matteo.

      Y
      YY_892282214-Alexandrite
      14-Alexandrite
      February 28, 2021

      Hi,



      Is it possible to create an assembly drawing based on multibodies with balloons, BOM table, exploding BOM?



      Regards,

      Yosef

        M
        Matteo_198716-Pearl
        16-Pearl
        March 3, 2021

        No, unfotunately it isn't possible.

        You could write it in Creo Parametric Ideas.

        B
        BalazsToth_3899811-Visitor
        1-Visitor
        May 25, 2021

        Hello,



        we don't use the auto association function  in our company.

        How could we associate a body to a part in the CAD/Dynamic Documents section by manual?



        Thanks.

        Balazs

        S
        SteveShaw15-Moonstone
        15-Moonstone
        May 25, 2021

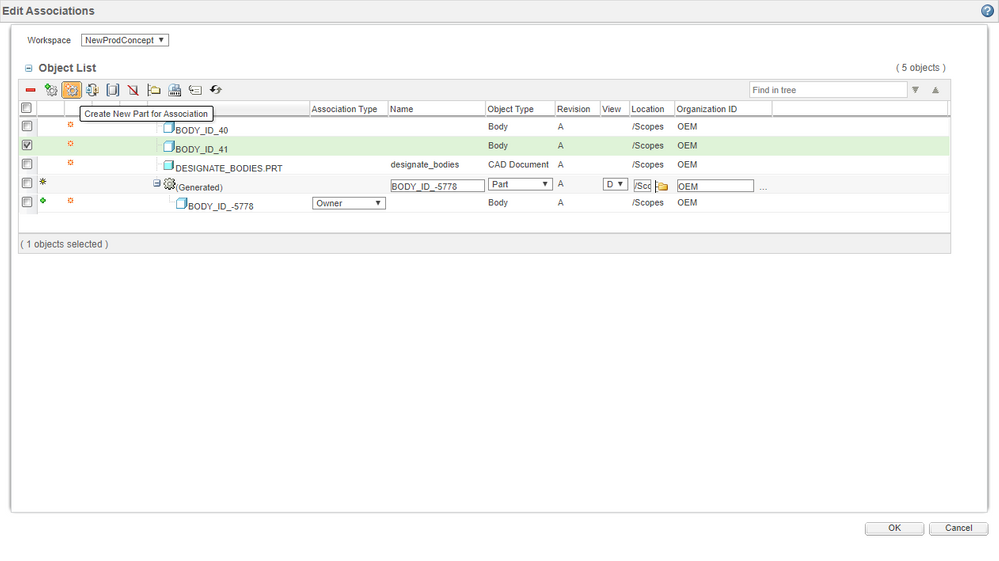

        Once a Body has been designated in Creo and the Extension set to PRT and save and uploaded in the workspace, the Edit Association UI will show the Model Items created in Windchill representing these designated bodies.  From here you can associate the bodies to new or existing WTParts from Windchill.


          B
          BalazsToth_3899811-Visitor
          1-Visitor
          May 25, 2021

          It works fine. Thanks.
