Create a rectangle of four lines_2D_OTK Java

  • December 3, 2019
  • 1 reply
  • 2243 views

Hello everyone!

I am trying to create a rectangle of four lines using OTK Java. This will be a section for my extrusion. All lines for the extrusion must be coincident. But I don’t know how to make them like that.
Because of this, it is not possible to extrude.

My code is:



Point2Ds tops = Point2Ds.create();
Point2D A = wfcSession.CreatePoint2D(90.00,90.00);
Point2D B = wfcSession.CreatePoint2D(90.00,-90.00);
Point2D C = wfcSession.CreatePoint2D(-90.00,-90.00);
Point2D D = wfcSession.CreatePoint2D(-90.00,90.00);
Point2D E = wfcSession.CreatePoint2D(90.00,90.00);
tops.set(0, A); tops.set(1, B); tops.set(2, C); tops.set(3, D); tops.set(4, E);
SectionEntityPolyline rectangle = wfcSection.SectionEntityPolyline_Create(tops);
SectionEntity entity = (SectionEntity)rectangle;
sketch.AddEntity(entity);

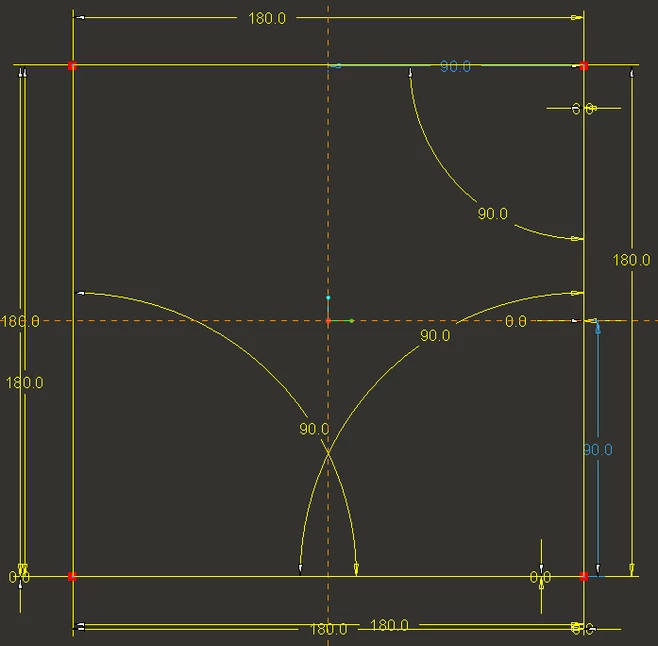

Section that is obtained after starting:


Please help, if anyone knows.
Thanks in advance.
Regards!

Best answer by YaroslavSin

In toolkit examples (UgCreoSweepCreate.c) I found this piece of code

ProError UgSweepAppAddRectangle (ProSection nsketch,int offset)
{
	Pro2dLinedef rect_entity1,rect_entity2,rect_entity3,rect_entity4;
	int ent_id=0;

	rect_entity1.type = PRO_2D_LINE;
 rect_entity1.end1[0] = -50 + (-offset);
	rect_entity1.end1[1] = 40 + offset;
	rect_entity1.end2[0] = 50 + offset;
	rect_entity1.end2[1] = 40 + offset;

	rect_entity2.type = PRO_2D_LINE;
 rect_entity2.end1[0] = 50 + offset;
	rect_entity2.end1[1] = 40 + offset;
	rect_entity2.end2[0] = 50 + offset;
	rect_entity2.end2[1] = -40 + (-offset);

	rect_entity3.type = PRO_2D_LINE;
 rect_entity3.end1[0] = 50 + offset;
	rect_entity3.end1[1] = -40 + (-offset);
	rect_entity3.end2[0] = -50 + (-offset);
	rect_entity3.end2[1] = -40 + (-offset);

	rect_entity4.type = PRO_2D_LINE;
 rect_entity4.end1[0] = -50 + (-offset);
	rect_entity4.end1[1] = -40 + (-offset);
	rect_entity4.end2[0] = -50 + (-offset);
	rect_entity4.end2[1] = 40 + offset;

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity1),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity2),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity3),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity4),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionIntentManagerModeSet(nsketch, PRO_B_TRUE);
	sweep_create_log("ProSectionIntentManagerModeSet ");

	status = ProSectionIntentManagerModeSet(nsketch, PRO_B_FALSE);
	sweep_create_log("ProSectionIntentManagerModeSet ");

	return;

}

 Try to use something like this

Point2Ds tops = Point2Ds.create();
Point2D A = wfcSession.CreatePoint2D(90.00,90.00);
Point2D B = wfcSession.CreatePoint2D(90.00,-90.00);
Point2D C = wfcSession.CreatePoint2D(-90.00,-90.00);
Point2D D = wfcSession.CreatePoint2D(-90.00,90.00);
Point2D E = wfcSession.CreatePoint2D(90.00,90.00);
tops.set(0, A); tops.set(1, B); tops.set(2, C); tops.set(3, D); tops.set(4, E);
SectionEntityPolyline rectangle = wfcSection.SectionEntityPolyline_Create(tops);
SectionEntity entity = (SectionEntity)rectangle;
sketch.AddEntity(entity);

// ADD
sketch.SetIntentManagerMode(true);
sketch.SetIntentManagerMode(false);

1 reply

Y
YaroslavSin17-Peridot
17-Peridot
December 4, 2019

Hello,

I believe that the trick is SetIntentManagerMode()

sketch.SetIntentManagerMode(true); // magic ON
Point2D center = wfcSession.CreatePoint2D(0.00,0.00);
SectionEntityCircle circle = wfcSection.SectionEntityCircle_Create(center,300.00);
SectionEntity entity = (SectionEntity)circle;
sketch.AddEntity(entity);
circle = wfcSection.SectionEntityCircle_Create(center,20.00);
entity = (SectionEntity)circle;
sketch.AddEntity(entity);
sketch.SetIntentManagerMode(false); // magic OFF



    V
    VladiSlav17-PeridotAuthor
    17-Peridot
    December 4, 2019

    Thanks for the answer!
    Yes, I understand that I need to enable ManagerMode.
    I already did that and everything worked with the round section.
    Now I want to create a part with a rectangular section, but I can’t draw such a section.
    Best Regards!

    Y
    YaroslavSin17-PeridotAnswer
    17-Peridot
    December 4, 2019

    In toolkit examples (UgCreoSweepCreate.c) I found this piece of code

    ProError UgSweepAppAddRectangle (ProSection nsketch,int offset)
{
	Pro2dLinedef rect_entity1,rect_entity2,rect_entity3,rect_entity4;
	int ent_id=0;

	rect_entity1.type = PRO_2D_LINE;
 rect_entity1.end1[0] = -50 + (-offset);
	rect_entity1.end1[1] = 40 + offset;
	rect_entity1.end2[0] = 50 + offset;
	rect_entity1.end2[1] = 40 + offset;

	rect_entity2.type = PRO_2D_LINE;
 rect_entity2.end1[0] = 50 + offset;
	rect_entity2.end1[1] = 40 + offset;
	rect_entity2.end2[0] = 50 + offset;
	rect_entity2.end2[1] = -40 + (-offset);

	rect_entity3.type = PRO_2D_LINE;
 rect_entity3.end1[0] = 50 + offset;
	rect_entity3.end1[1] = -40 + (-offset);
	rect_entity3.end2[0] = -50 + (-offset);
	rect_entity3.end2[1] = -40 + (-offset);

	rect_entity4.type = PRO_2D_LINE;
 rect_entity4.end1[0] = -50 + (-offset);
	rect_entity4.end1[1] = -40 + (-offset);
	rect_entity4.end2[0] = -50 + (-offset);
	rect_entity4.end2[1] = 40 + offset;

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity1),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity2),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity3),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionEntityAdd(nsketch,(Pro2dEntdef*)&(rect_entity4),&ent_id);
	sweep_create_log("ProSectionEntityAdd ");

	status = ProSectionIntentManagerModeSet(nsketch, PRO_B_TRUE);
	sweep_create_log("ProSectionIntentManagerModeSet ");

	status = ProSectionIntentManagerModeSet(nsketch, PRO_B_FALSE);
	sweep_create_log("ProSectionIntentManagerModeSet ");

	return;

}

     Try to use something like this

    Point2Ds tops = Point2Ds.create();
Point2D A = wfcSession.CreatePoint2D(90.00,90.00);
Point2D B = wfcSession.CreatePoint2D(90.00,-90.00);
Point2D C = wfcSession.CreatePoint2D(-90.00,-90.00);
Point2D D = wfcSession.CreatePoint2D(-90.00,90.00);
Point2D E = wfcSession.CreatePoint2D(90.00,90.00);
tops.set(0, A); tops.set(1, B); tops.set(2, C); tops.set(3, D); tops.set(4, E);
SectionEntityPolyline rectangle = wfcSection.SectionEntityPolyline_Create(tops);
SectionEntity entity = (SectionEntity)rectangle;
sketch.AddEntity(entity);

// ADD
sketch.SetIntentManagerMode(true);
sketch.SetIntentManagerMode(false);
