Creating datum on the surface of a hole.

This may be crazy easy to do I just couldn't figure it out. I'm trying to place a datum on the inside surface of a hole. I am working with GD&T and trying to create a perpendicularity constraint referenceing the datum C which like is said is the inside surface of the hole.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
KevinAnswer
1-Visitor
May 20, 2011

You edit the properties of the datum axis and use In Dim to select the dimension to attach to.

View in thread

3 replies

ChristianSmith1-VisitorAuthor
1-Visitor
May 20, 2011

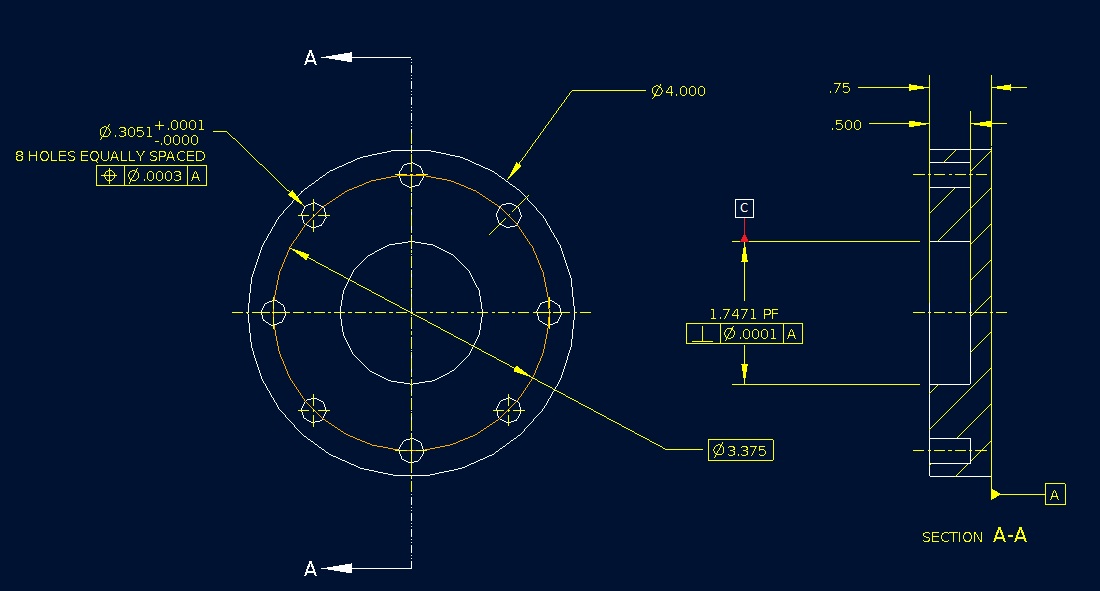

Didn't mean to submit this before I attached a .jpg for an example. The red leader with the C in the box is what I want....I just did that in paint to show what I want to do in Pro/E


Translate
Kevin1-VisitorAnswer
1-Visitor
May 20, 2011

You edit the properties of the datum axis and use In Dim to select the dimension to attach to.

Translate
ChristianSmith1-VisitorAuthor
1-Visitor
May 20, 2011

So simple! Thank you for the help.
