Creo 2.0 ProToolkit: Cannot get geometry item from constraint for datum point

@hi_01 all,

I am currently working on a project to get the geometry properties of joints within an assembly using ProToolkit. However, for Ball joints i am running into problems lately (should be the same for any other type of constraint, too).

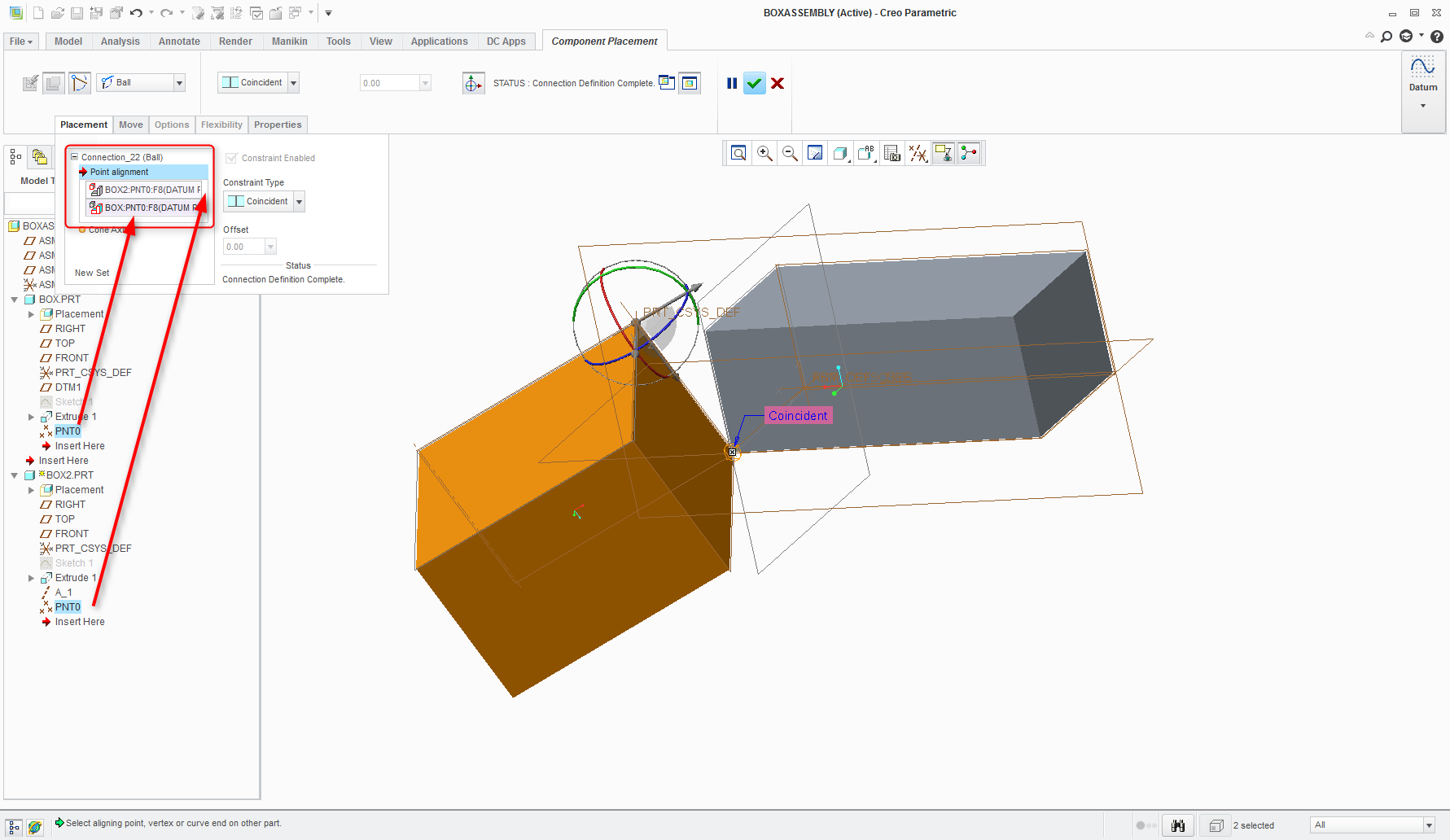

When I select datum points as point alignment for the Ball Joint I get an error with bad inputs (line 8 of code below). If I use edges of the boxes instead, everything is working properly (code finishes).

My algorithm is as follows, (unfortunately I cannot copy-paste my complete code here, since it has been growing to big (I will try to add a small example asap)):

// collect geometry data of part

    ProModelitem partModelItemPos;

    partModelItemPos = _positionConstraint->getPartModeliItem();

    ProGeomitemdata* geomDataPart;

    error = ProGeomitemdataGet(&partModelItemPos, &geomDataPart);

    if (error != PRO_TK_NO_ERROR)

    {

        std::cout << "Error getting position data of Ball joint (part). Errorcode: " << error << std::endl;

        return error;

    }

    // collect geometry data of assembly

    ProModelitem assemblyModelItemPos;

    assemblyModelItemPos = _positionConstraint->getAssemblyModeliItem();

    ProGeomitemdata* geomDataAssembly;

    error = ProGeomitemdataGet(&assemblyModelItemPos, &geomDataAssembly);

    if (error != PRO_TK_NO_ERROR)

    {

        std::cout << "Error getting position data of Ball joint (assembly). Errorcode: " << error << std::endl;

        return error;

    }

    // get joint partner

    _partPath = _positionConstraint->getPartPath();

    _assemblyPath = _positionConstraint->getAssemblyPath();

    std::cout << "BallJoint found: its internal geometry type is: " << geomDataPart->obj_type << std::endl;

    // decide from partgeometry type what to do next

    switch (geomDataPart->obj_type)

    {

        case PRO_EDGE_START: // first point in line

        {

            for (unsigned int i = 0; i < 3; i++)

            {

                _jointPosition[i] = geomDataPart->data.p_curve_data->line.end1[i];

            }

            std::cout << "local position of joint w.r.t partframe:" << std::endl << _jointPosition << std::endl;

            break;

        }

        case PRO_EDGE_END: // second point in line

        {

            for (unsigned int i = 0; i < 3; i++)

            {

                _jointPosition[i] = geomDataPart->data.p_curve_data->line.end2[i];

            }

            std::cout << "local position of joint w.r.t partframe:" << std::endl << _jointPosition << std::endl;

            break;

        }

        case PRO_POINT: // not checked yet

        {

            for (unsigned int i = 0; i < 3; i++)

            {

                _jointPosition[i] = geomDataPart->data.p_curve_data->point.position[i];

            }

            std::cout << "local position of joint w.r.t partframe:" << std::endl << _jointPosition << std::endl;

            break;

        }

My assumption is, that ProToolkit does not treat the datum point as a geometry feature. Is this true? How am I able to get the position of the Ball refence then, since any features within my part could be used as a geometry reference for that constraint.
I hope you understand my problem since I am not really experienced in the field of CAD itself.

Thank you very much for your help.

Best regards,

Andreas
