Custom Hole Charts not working

I was trying to use the UNC.hol file to modify the default callout on my drawings. I included the .hol file below, but the change I made was:

CALLOUT_FORMAT {0:&PATTERN_NO}X &FASTENER_ID &THREAD_SERIES <CTRL-a>x<CTRL-b> &THREAD_DEPTH

To try and get something like this result:


But no matter what I change, I seem to get the default:


Is there something I'm missing?

MartinHanakAnswer
24-Ruby III
Jul 4, 2022 7:55 AM UTC
@CB_10314989 wrote:

I was trying to use the UNC.hol file to modify the default callout on my drawings. I included the .hol file below, but the change I made was:

CALLOUT_FORMAT {0:&PATTERN_NO}X &FASTENER_ID &THREAD_SERIES <CTRL-a>x<CTRL-b> &THREAD_DEPTH

To try and get something like this result:


But no matter what I change, I seem to get the default:


Is there something I'm missing?

Hi,

in my Creo Parametric 7.0.5.0 the following callout works well.

CALLOUT_FORMAT {0:&PATTERN_NO}X &FASTENER_ID &THREAD_SERIES <CTRL-a>x<CTRL-b> &THREAD_DEPTH

I did following steps:

  • E:\PTC\Creo7_050\Creo 7.0.5.0\Common Files\text\hole
    • I renamed original UNC.hol to UNC.hol_orig
    • I copied UNC.txt there and renamed it to UNC.hol
    • I started Creo, opened part, created new standard hole ... callout note started with 1x
    • I created pattern ... callout note changed to Nx ... N = number of pattern members



View in thread

7 replies

pausob19-Tanzanite
19-Tanzanite
Jul 3, 2022 3:35 PM UTC

Hi @CB_10314989 , My concerns:

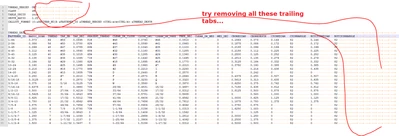

1) your file is called UNC.txt, instead of UNC.hol
