Diameter Symbol keeps Legacy Style

Hi,



I have set following settings:

Model Properties /Detail option

  default_annotation_font arialn.ttf
  symbol_font ISO

same settings in drawing properties

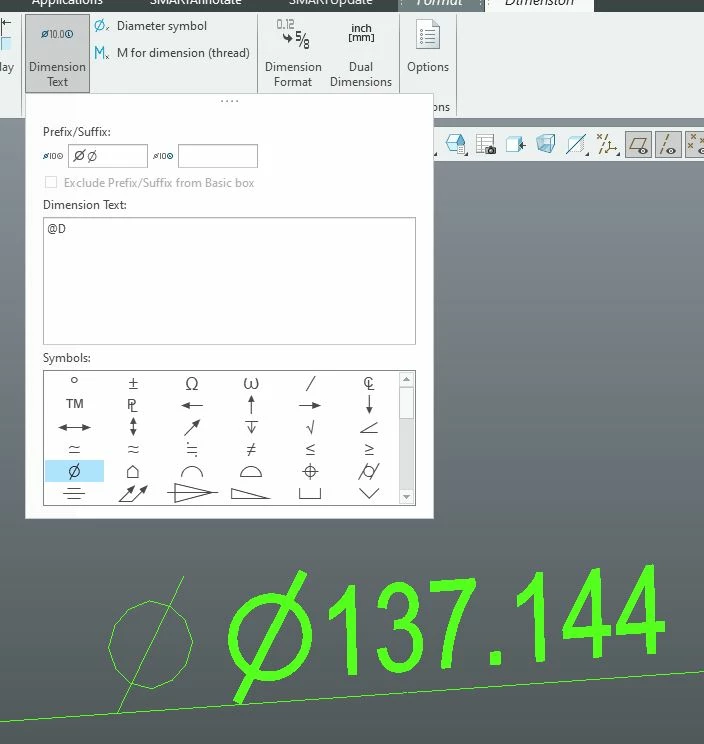

All symbol come in arialn.ttf but only the diameter symbol (by pressing button add diameter symbol to dimension) stays in old legacy mode (see picture - only lines no ttf font)

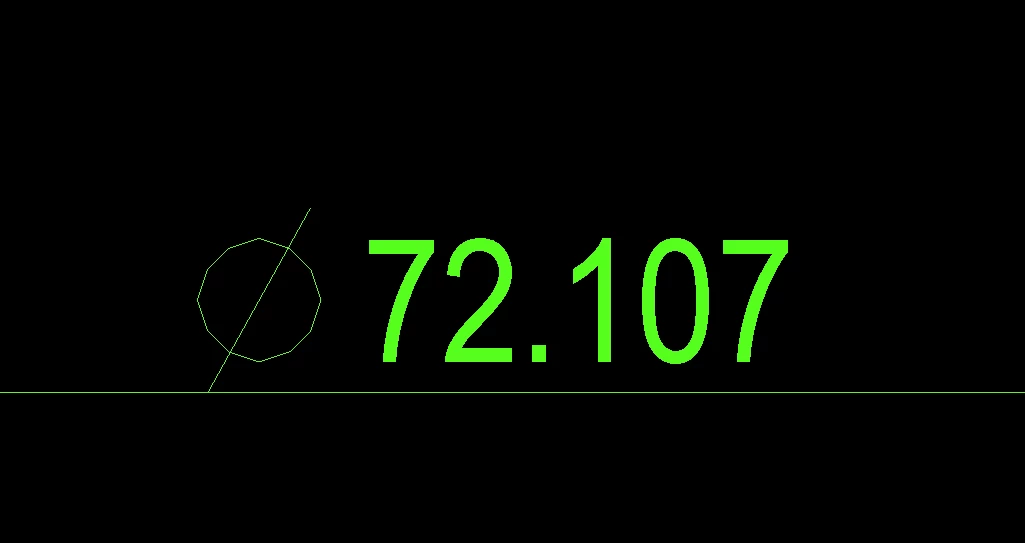

Strange thing is  - when i manually add the diamter symbol as prefix it is correct (see second picture)



How can I fix this?









8 replies

MartinHanak24-Ruby III
24-Ruby III
Dec 1, 2022 7:45 AM UTC

Hi,

symbol_font ISO must be set in drawing model, too.

Translate
MP_921587012-AmethystAuthor
12-Amethyst
Dec 1, 2022 7:58 AM UTC

Yes, its set ISO - but I still have this old Legacy Diameter.

Translate
MartinHanak24-Ruby III
24-Ruby III
Dec 1, 2022 8:02 AM UTC
@MP_9215870 wrote:

Yes, its set ISO - but I still have this old Legacy Diameter.

Hi,

I guess that the old diameter symbol was added to dimension manually.

Translate
llie17-Peridot
17-Peridot
Dec 1, 2022 3:15 PM UTC

We ran into that issue as well. We ended up setting the model and drawing to:

symbol_font    stroked_asme

Translate
MP_921587012-AmethystAuthor
12-Amethyst
Dec 7, 2022 6:28 AM UTC

symbol_font    stroked_asme - Doesnt change anything for me.



I set it to ISO by default

Translate
llie17-Peridot
17-Peridot
Dec 15, 2022 8:56 PM UTC

Can you create a dummy part and drawing and then share?

Translate
