Dimension arrow
- December 26, 2013
- 0 replies
- 962 views
Hi All,

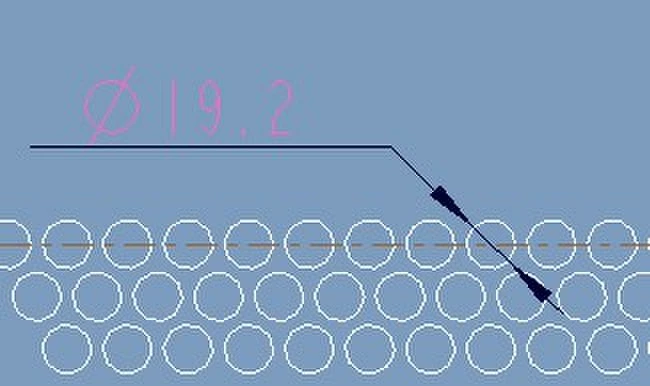

About the diameter arrow. I created a diameter annotation(in fig 1) in drawing. But the styleof the arrow(in fig 1) can not be changed to the style(in Figs 2) which I wanted.

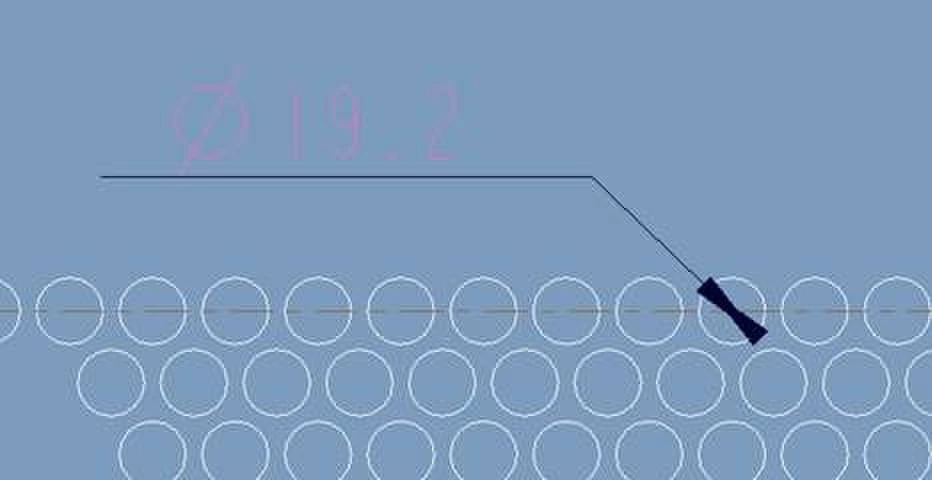

Is it possible to change the style of the arrow by toolkit. I can not describe it accurately by word, so I beg you , look the 2 pictures below.
Our client even want us to develop a programme to automatic dimensions all the procedure dwg. The question above is one of lots of questions. Oh, drive me crazy.
