Dimensions symbol edit

Hello,

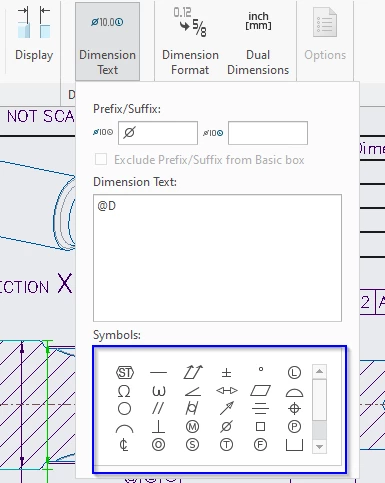

i would like to ask you for help. I would like to modify dimensions symbols. In drawing, when you click on dimension and want to modify dimension text. There is symbol pallet. (diameter, +/-.) I would like to edit these smybols. Can you help me how to do it? I think there should some file where these symbols are saved,  i don´t know where.



Thank You for help

CREO PArametric 4

Have a nice day

GH













RPN
RPNAnswer
18-Opal
Oct 24, 2023 9:25 PM UTC

De/compile font in Common Files\x86e_win64\text\usascii\special.fnt



As far I remember this is what you are looking for.



-----------------------------------------------------------------------------------
Found in 'Common Files/text/usascii/stroked_symbol_asme.src'
------------------------------------------------------------------------------------

Position 317.2
d 16, 22
d 0, 30
# diameter
" code 8960 2300"
width 28

------------------------------------------------------------------------------------
Found in 'Common Files/text/usascii/stroked_symbol_iso.src'
------------------------------------------------------------------------------------

Position 321.6
d 16, 22
d 0, 30
# ISO diameter
" code 8960 2300"
width 18
