Excel-Analysis with extended Parameters

  • July 11, 2018
  • 1 reply
  • 3229 views

Hello Community!



I am faced with the following problem in Creo Parametric 4.0. I have an assembly with parameterized parts in it. I want to run an Excel-Analysis on base of the part´s parameters. But the analysis should be placed in the assembly level. Creo just lets me take parameters which are defined in the assembly level. I can´t choose parameters from an assembled part itself.

Does anybody know, if this is possible anyhow? If yes, can you explain how to do?

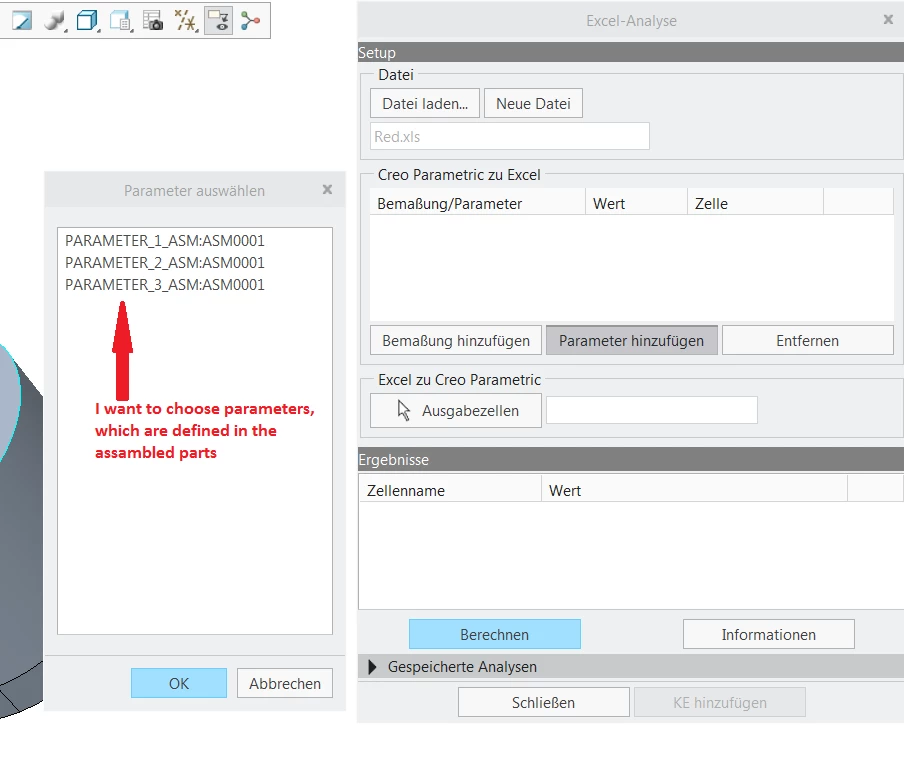

I attached a picture of the list box I meant.

1 reply

Y
YaroslavSin17-Peridot
17-Peridot
July 12, 2018
Hello.
Need to map a parameters from a parts to assembly level, using a relations in an assembly. Then you can use this param in Excel. Search how to get a values from part's parameters in the assembly using session ID of the parts.
    A
    alex_holzinger1-VisitorAuthor
    1-Visitor
    July 13, 2018

    Thanks for your answer, ysinitsyn! Smiley Happy

    Do I understand correctly that you mean a relation like this (in the assembly level): Length=Length:4? This was also my temporary solution. But imagine designing a machine with lots of integrated analysis, the number of parameters for these skyrockets due to doublicating part´s parameters. So I am just partly satisfied with this solution.



    Is there an opportunity to really take the parameters of the parts (inside the assembly level)?

    Y
    YaroslavSin17-Peridot
    17-Peridot
    July 13, 2018

    Do you need transfer parameter value from Creo to Excel?

    For example, I can add a Dimension from a part to Analysis at assembly level. Maybe you can use a dimensions?
