Exporting formula driven Lattice

  • April 7, 2024
  • 3 replies
  • 1480 views

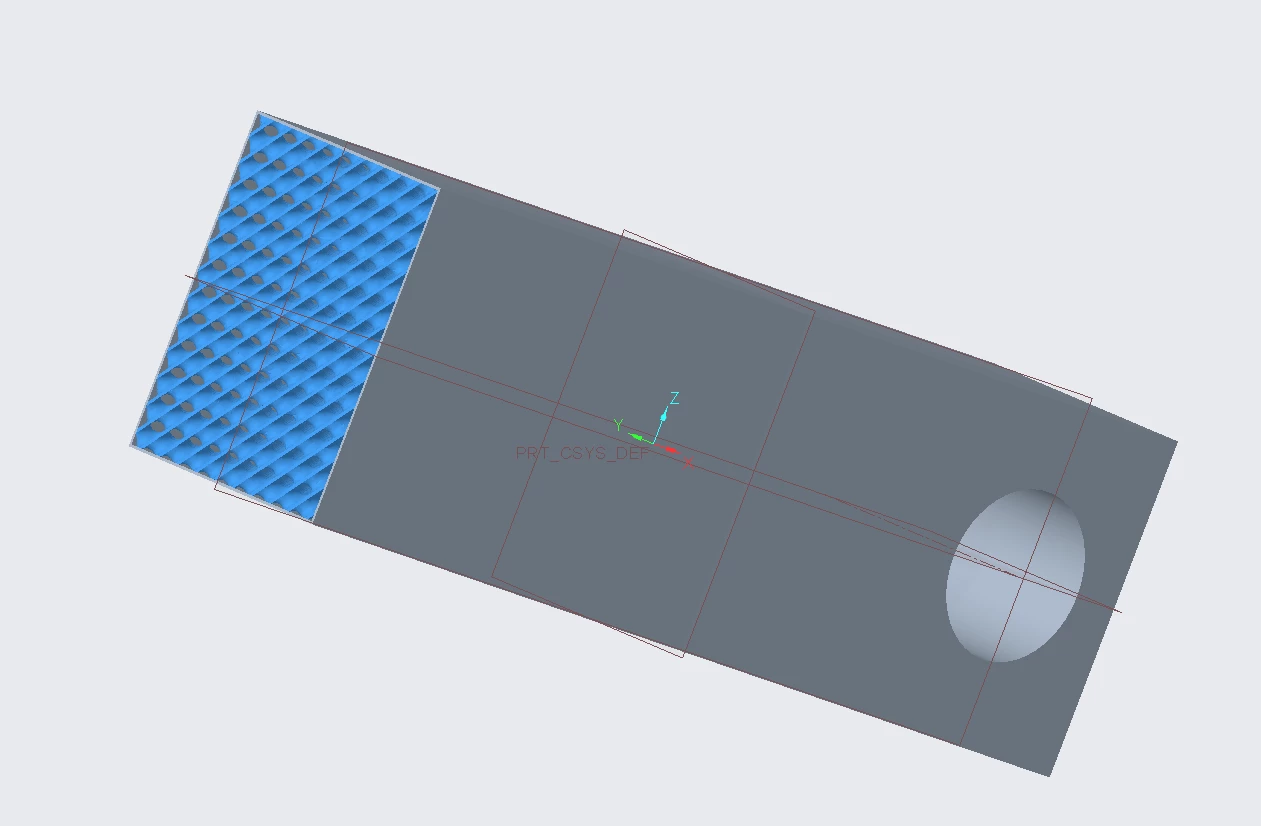

I have a part that I have set up with a gyroid lattice, but when I export it as a .IGES, only the shell of the part is exported.



For background:

The formula driven lattices do not create a solid geometry feature like the other lattice types, this means that it cannot be export (also means it is not included in any analysis like volume or weight).



I was wondering if anyone knew how to make a solid geometry out of a formula driven lattice or if there was a way to export it regardless.



I am using the student version of creo 9.0.

3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
April 7, 2024

Creo 9 does not support the export of formula driven lattice geometry.

Article - CS303867 - Formula Driven Lattice feature is not exported when export to IGES/STEP in Creo Parametric (ptc.com)



Workaround option:

Create an STL file of the model with the lattice and save the file. You can then import the STL file into other applications.

    M
    16-Pearl
    Michael16-Pearl
    16-Pearl
    April 8, 2024

    Use the .3MF format which includes lattice cell definition as an export option.
