Get top and bottom components in an assembly

Creo Parametric 4.0/7.0



Hi,

I have to get all part component from an assembly and group all those components in top or bottom group. Is there a function that allows to differ top and bottom components?



I use ProSolidDispCompVisit to visit all components. Put all in an array with ProArrayObjectAdd and loop all models. I want to separate top from bottom and create/fill group with.



Thank you very much!

MichelHAnswer
1-Visitor
Nov 15, 2021 10:20 AM UTC

If you have the ComponentPath of each component you can use Transform3D::GetZAxis to get the location.

Comment: I am working with OTK Java, but should be similar with toolkit...

View in thread

7 replies

YaroslavSin17-Peridot
17-Peridot
Nov 11, 2021 3:56 AM UTC

Hi,

Can you provide more information about what you mention by "Top components" and "Bottom components"? The order in the assembly tree? Assembled first components (placed at first half of the tree) is - top?

Translate
    JD_27791811-VisitorAuthor
    1-Visitor
    Nov 15, 2021 9:25 AM UTC

    Hi,



    First of all thank you!

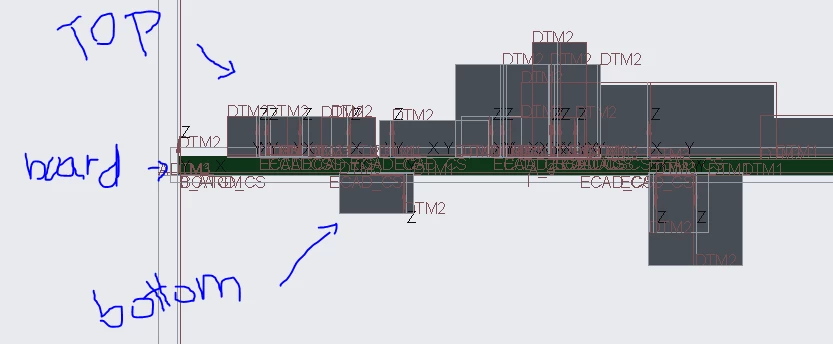

    Well, I want to know how to differ the top components from the bottom components placed in a card board after getting all of them with ProSolidDispCompVisit .Capture.PNG

    Translate
    YaroslavSin17-Peridot
    17-Peridot
    Nov 15, 2021 10:16 AM UTC

    Hello.

    I think, you can analyze Z-axis direction. Compare Z-axis of each component model and card board Z-axis.

    Take a look

    https://community.ptc.com/t5/Customization/Get-global-coordinates-of-entry-port-coordinate-system-with/m-p/756058#M10635

    Translate
      MichelH1-Visitor
      1-Visitor
      Nov 12, 2021 11:47 AM UTC

      Hello,

      are you trying to separate visible from invisible components? ProSolidDispCompVisit description: Visits all the displayed components in the solid handle.

      Regards

      Michael

      Translate
        JD_27791811-VisitorAuthor
        1-Visitor
        Nov 15, 2021 9:28 AM UTC

        Hello,

        Thank you anwering me.



        Well, I want to get all dispayed components and differ the components placed in top side of the board from the one placed in bottom side.




        Translate
        MichelH1-VisitorAnswer
        1-Visitor
        Nov 15, 2021 10:20 AM UTC

        If you have the ComponentPath of each component you can use Transform3D::GetZAxis to get the location.

        Comment: I am working with OTK Java, but should be similar with toolkit...

        Translate
