Getting rid of "utility" lines in Section

  • June 8, 2016
  • 1 reply
  • 3269 views

Hi guys,

I faced to the problem, there are lines in section which are some kind of utility(coordinate system's axis: 100,0 and 0,-100; diagonal lines of a rectangle).

The main issue is all these lines have the same type(sectionEntity->GetSectionEntityType()) as an ordinary line: wfcSEC_ENTITY_2D_LINE

So I can't filter them by type.

Nevertheless, it's possible to get rid of coordinate system's axis: 100,0 and 0,-100.

But I can't imagine how to remove diagonal lines of a rectangle and same sort of lines, which coordinates are dynamic from Section to Section.

May it be, I did miss something?

May be there is a simple solution to clean out all these utility lines?

PS:

I've attached what I have now in JSON file for the section with only two arcs.

Thanks,

Artem


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by FV_01

Artem, use ProSectionEntityIsConstruction to determine section entity type

1 reply

A
abursuk1-VisitorAuthor
1-Visitor
June 29, 2016

Hi all,

I think the description of lines above isn't clear enough.

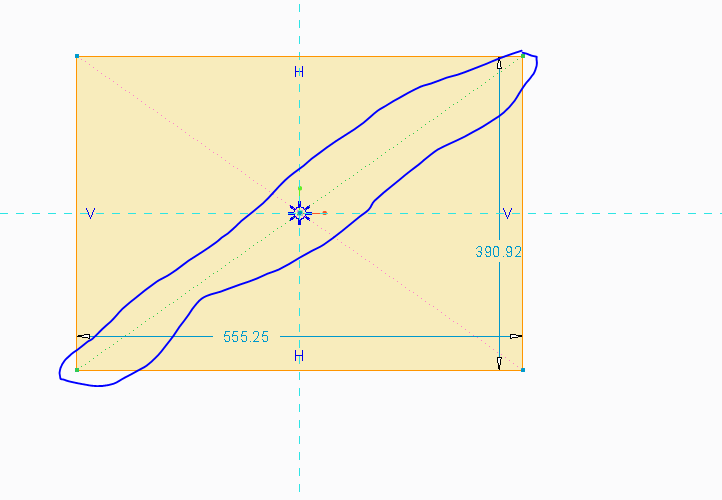

Here is a screenshot. I need to understand which lines on this sketch are Reference ones(dashed)?


Or like here in a rectangle (diagonals):


Lines from the first case are marked as Reference, and from second one are marked like Construction.

Is there opportunity to get type (normal, Reference, construction) using toolkit?

I thought it's kinda easy, but can't find any information about these lines.

Thanks,

Artem

F
FV_0117-PeridotAnswer
June 29, 2016

Artem, use ProSectionEntityIsConstruction to determine section entity type

A
abursuk1-VisitorAuthor
1-Visitor
June 30, 2016

Hi Feliks,

Thank you for the advise. But this function can determine only second case(Construction line, e,g, rectangle's diagonals).

Unfortunately reference lines from 1st case isn't marked as construction by this function.

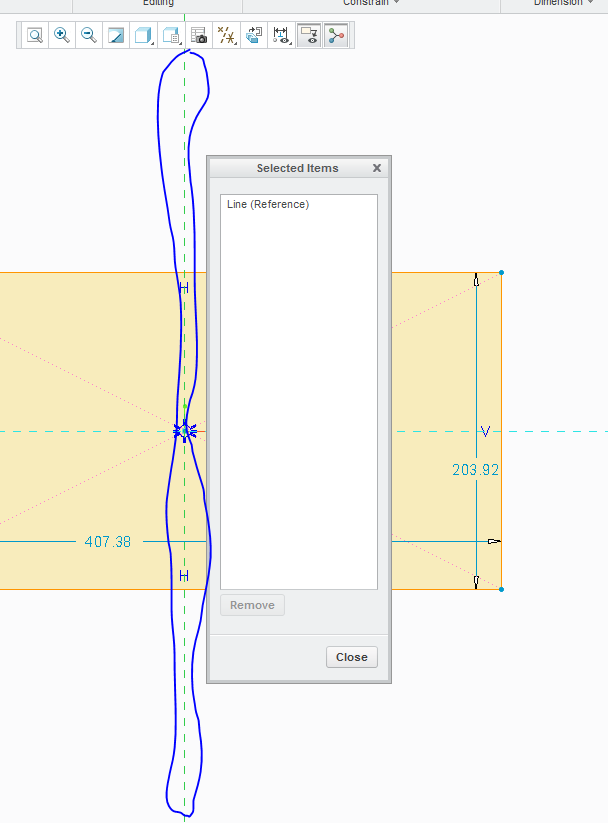

I selected one of these lines, and it says that these are Reference lines.


Don't know what does that mean. But as for me, it's the same as construction line, unfortunately the function doesn't think that way

Maybe there is some other function for such Reference line? I mean Creo knows for sure that these lines are Reference and should be treated in a special way. I have to be Creo, think like Creo, be Creo

Best regards,

Artem
