Hiding a part annotation in an assembly

  • August 14, 2025
  • 3 replies
  • 601 views

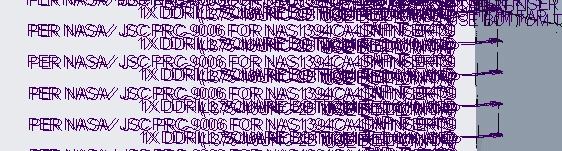

We have many models that were created with an older start part, meaning that some layer rules did not get applied before the model was released. One of these critical rules is to put the auto-generated hole note on a layer and then hide it.

Now we are working in an assembly with these parts in it.  These auto-generated hole notes are showing up at the assembly level.  Is there a way to hide them without revising the already released part?  Is there a layer rule that can be used to collect an annotation from a lower level part and then hide it?

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
August 15, 2025

Hi,

I think that you cannot create a layer containing part entities at the assembly level.

T
TrainStopper12-Amethyst
12-Amethyst
August 15, 2025

What has worked for me with old parts has been to bring them into an assembly that has the layer rules setup to the new standard, select all the layers of interest, then under Layer Operations select Extend  Rules.
