How to get the value of BOM balloon index/text available in the current drawing in creo2 (M130) using J-Link?

  • November 16, 2016
  • 1 reply
  • 2661 views

Hello Friends,

How to get the value of BOM balloon index/text available in the current drawing in creo2 (M130) using J-Link?

Already searched the J-Link API BOM balloon option are not available.

1 reply

J
James621-Visitor
1-Visitor
November 16, 2016

hi,

Turns out i was wrong about casting the bom balloon model item to a note. It's got little more difficult than that, try the following code.

Window currentWindow = session.GetCurrentWindow();


Model model = currentWindow.GetModel();


if (model.GetType() != ModelType.MDL_DRAWING) {


    throw new RuntimeException("Current model is not a drawing.");


}


Model2D drwModel = (Model2D) model;


// Get all symbols, the second argument here is the sheet number


DetailItems detailItems


    = drwModel.ListDetailItems(DetailType.DETAIL_SYM_INSTANCE, 1);


for (int i = 0; i < detailItems.getarraysize(); i++) {


    DetailItem detailItem = detailItems.get(i);


    // The GetName() method can be used to figure out if the


    // symbol is a bom balloon


    String detailItemName = detailItem.GetName();


    // Detail type displays number 3 for any symbol


    DetailType detailItemType = detailItem.GetDetailType();


    // Cast to symbol


    DetailSymbolInstItem symbolItem = (DetailSymbolInstItem) detailItem;


    // false is to get the actual text shown to the user


    DetailSymbolInstInstructions symInstructions


        = symbolItem.GetInstructions(false);


    DetailVariantTexts textValues = symInstructions.GetTextValues();


    // Get the first line of the text


    DetailVariantText textVal = textValues.get(0);


    // check if the symbol is a bom balloon


    if (detailItemName.contains("balloon")) {


        // Display message dialog box


        session.UIShowMessageDialog("Detail item name: "


            + detailItemName + "\n"


            + "Detail item type num: " + detailItemType.getValue() + "\n"


            + "Symbol text value: " + textVal.GetValue(), null);


    }


}
    S
    sekambaram1-VisitorAuthor
    1-Visitor
    December 2, 2016

    Hi,

    Thanks for your reply, and i tried your code in my case it is not working it is not listing the DETAIL_SYM_INSTANCE type.

    while i am using

    1. DetailItems detailItems = drwModel.ListDetailItems(DetailType.DETAIL_SYM_INSTANCE, 1);

    this line my detailItems.getarraysize() is "0" so, it is continue this flow.


    So, I tried the following lines


                   DetailItems dtlItems = dtlItemOwner.ListDetailItems(DetailType.DETAIL_NOTE, 1);

                   String dtlTextString = null, drwViewName = null;

                    for (int i = 0; i < dtlItems.getarraysize(); ++i)

                   {

                       DetailNoteItem dtlNote = (DetailNoteItem) dtlItems.get(i);

                       DetailType dtype = dtlNote.GetDetailType();

                       DetailNoteInstructions noteInstrs = dtlNote.GetInstructions(false);



                        // Check if the note has any leader which attaches to a drawing view.

                        Attachments noteLeaders = noteInstrs.GetLeader().GetLeaders();

                        // Get the note text strings.

                         DetailTextLines noteLines = noteInstrs.GetTextLines();



                        for (int j = 0; j < noteLines.getarraysize(); ++j)

                        {

                            DetailTexts dtlTexts = noteLines.get(j).GetTexts();



                            for (int k = 0; k < dtlTexts.getarraysize(); ++k)

                            {

                                dtlTextString = dtlTexts.get(k).GetText();

                            }

                        }



                 }


    in this time i am getting all notes text available in the current drawing including BOM balloon notes and Normal notes. Now i am facing problem in filtering BOM balloons note text from all note text. If this is a correct flow means help on this, otherwise let me know other options are there.

    J
    James621-Visitor
    1-Visitor
    December 2, 2016

    hi,

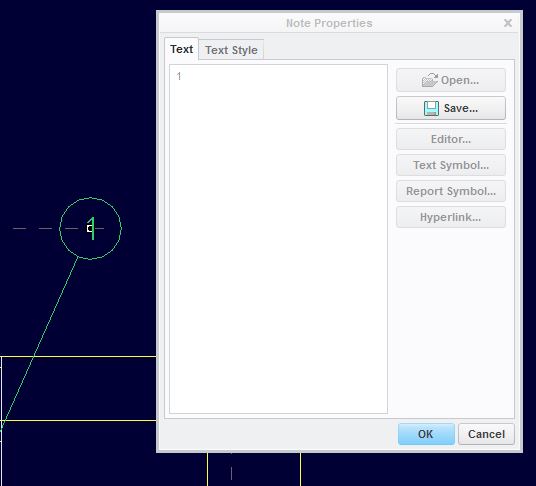

    Ok, I see. When i switch to the default Simple Circle bom balloons type and double click on one of the balloons a Note Properties window pops up.

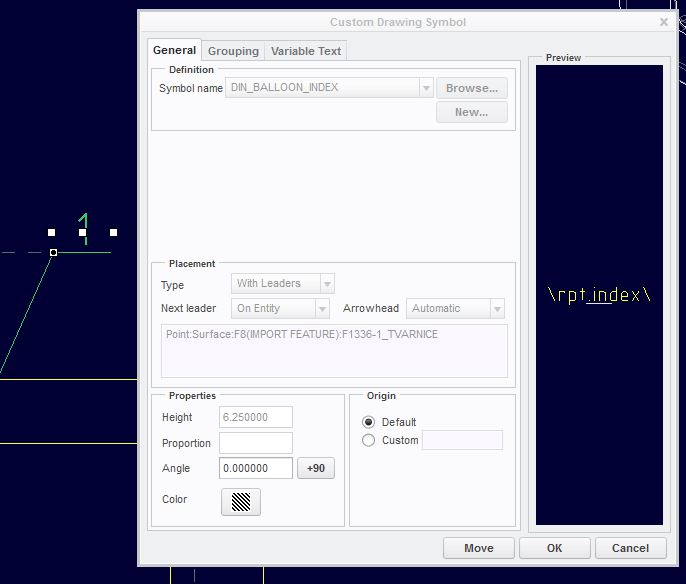

    But when I switch to Custom type of bom balloons and use a symbol, which is what i use by default, then when i double click the balloon a totally different window shows up.


    Unless you know what text you are looking for inside of the bom balloons or a regex pattern at least then you can't really differentiate between notes and these default bom balloons. So, I'm not sure how to go about without switching to custom type of bom balloon right now.

    You could possibly automate the switch to custom symbols and switch back operation. It'd require selection of each table, which is what you can do with J-Link with the following code.

    Window currentWindow = session.GetCurrentWindow();


    Model model = currentWindow.GetModel();


    if (model.GetType() != ModelType.MDL_DRAWING) {


        throw new RuntimeException("Current model is not a drawing.");


    }


    Model2D drwModel = (Model2D) model;


    Tables drwTables = drwModel.ListTables();


    for (int i = 0; i < drwTables.getarraysize(); i++) {


        Table drwTable = drwTables.get(i);


        // add the table to a new selection


        Selection selection = pfcSelect.CreateModelItemSelection(drwTable, null);


        // get the current selection buffer


        SelectionBuffer selBuffer = session.GetCurrentSelectionBuffer();


        // erase the current selection buffer


        selBuffer.Clear();


        // add the selection to a the selection buffer


        selBuffer.AddSelection(selection);


        // display a message dialog box


        session.UIShowMessageDialog("Selected table index: " + (i + 1), null);


        // erase the current selection buffer


        selBuffer.Clear();


    }

    To change the type of the bom balloon record a couple of mapkeys and use RunMacro within the loop of the J-Link code above.
