How to Move a drawing Note From one view To Another

Hi ,



In Creo 4.0  M140 , there is command called "Move to view " which is used to move an annotation from one view to another view , I have do this using API & I m using ProToolkit , Please help me out with solution



Regards,

Kunal

    7 replies

    remy21-Topaz I
    21-Topaz I
    Jul 5, 2022 3:01 PM UTC

    Your application needs to perform the equivalent of RMB on a Drawing view > Move to View. This is a typical instance where a dedicated function exists.
    When you search the API documentation with *viewmove" you will find

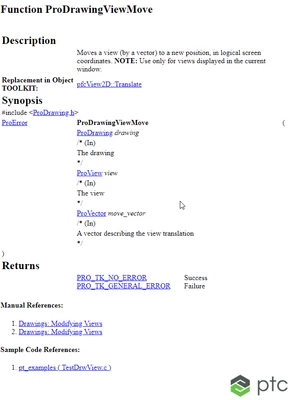

    ProDrawingViewMove






    and bonus: pt_examples will give you some code.



    Translate
    KB_975380413-AquamarineAuthor
    13-Aquamarine
    Jul 7, 2022 10:08 AM UTC

    This API is used to position view not to move annotation from one view to another



    Regards,

    Kunal Bidkar

    Translate
    remy21-Topaz I
    21-Topaz I
    Jul 7, 2022 11:38 AM UTC

    That's partially right: this function enables to move a Drawing Note to a different view.  This is my understanding of the topic : "How to Move a drawing Note From one view To Another".



    Can you share a screencapture of the operation that you need to run with toolkit? or share some model (even a dumb one)?

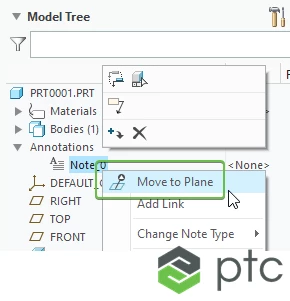

    By chance do you mean the RMB > Move to plane operation?






    Translate
    FabianWolf14-Alexandrite
    14-Alexandrite
    Jul 25, 2022 9:26 AM UTC

    Example for a 2D note:



    • ProDtlnoteDataGet()
    • ProDtlnotedataAttachmentGet()
    • ProDtlattachGet --> Third arg is the current parent view
    • ProDtlattachSet() --> Supply args returned by ProDtlattachGet() except for the ProView (use the view to be the new parent of the annotation)
    • ProDtlnotedataAttachmentSet()
    • ProDtlnoteErase()
    • ProDtlnoteModify()
    • ProDtlnoteShow()

    Works pretty similar for symbols.



    Hope that helps.
