How to use quilt of component B cutting solid of component A ?

hello everyone!

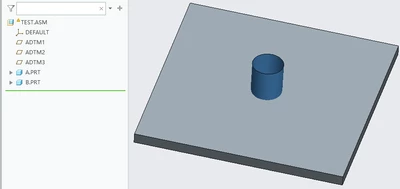

My problem is that there are two components in an assembly , the component "A" has a square body, and the component "B" has a cylindrical quilt . Like the following picture.

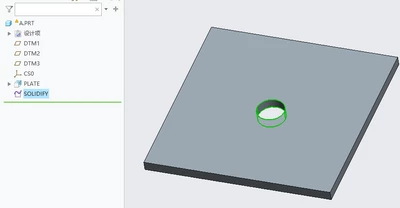

I want to use Creo Object TOOLKIT or TOOLKIT to use the quilt of component B as the cutting reference to create a curing feature in component A, and the cylindrical quilt of component B to cut the solid of component A.The final effect is as follows.




I tried to fill the Solidify element tree with the pointer of quilt, and then use the "wfcWSolid_ptr" of component A creates the feature, but the creation failed because the solidify feature has no reference quilt.



If anyone knows how to use B's quilt as a reference to create the curing feature, or how to successfully create the feature, please tell me the specific method, thank you very much!

17-Peridot
Jan 15, 2023 2:10 PM UTC

Export SOLIDIFY feature tree to xml and analyze how the feature tree is filled.

2 replies

17-Peridot
Jan 15, 2023 2:10 PM UTC

Export SOLIDIFY feature tree to xml and analyze how the feature tree is filled.
