Inserting Drawing Sheet from other drawing

Hi all,

we have two assembly models A & B.

One sub assembly ( called as C) is placed in both A & B.

Drawing of assembly 'A' contains muiltple sheets. In one of the sheet contains only the details of sub assy 'C'.

we need to have the same details of C in B drawing sheet also.

Is it possible to insert a sheet from other drawings ? if so, please help me to do that.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
1-Visitor
Jan 2, 2014 9:25 AM UTC

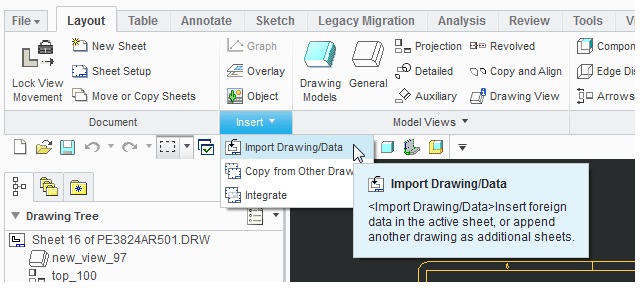

I have resolved my issue by using the following option


Thanks for your efforts

4 replies

2-Explorer
Dec 31, 2013 2:02 PM UTC

In WF 5, Edit ->Copy From Other Drawing. It opens a menu that allows copying detail items or entire sheets.

Translate
1-Visitor
Jan 2, 2014 8:54 AM UTC

Thanks David.

I need to have the entire sheet including the 'C' part Drawing views along with dimensions. It it possible?

Also I am using CREO 2.0

Translate
rrangaswamy1-VisitorAuthorAnswer
1-Visitor
Jan 2, 2014 9:25 AM UTC

I have resolved my issue by using the following option


Thanks for your efforts
