Question

Layer Rules

  • September 24, 2014
  • 3 replies
  • 6950 views

Creo 2.0, M080 (But the following applies to WF, M220 as well)

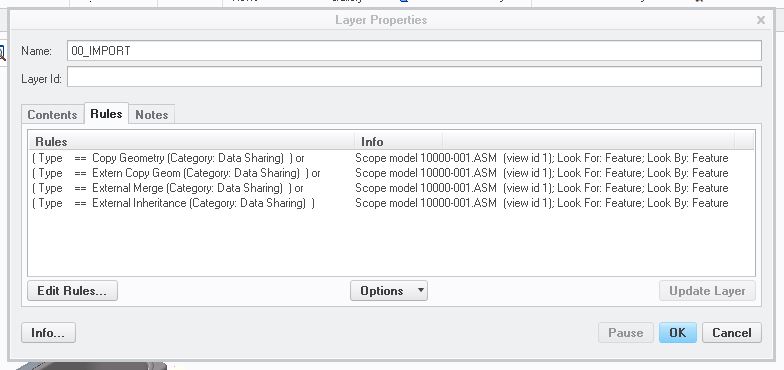

I have in my rule based layers a layer (00_IMPORT) that gathers import features.  The rules are:






Note that it only looks for features.  It works well, all my copy geom & merge features end up on that layer.



However, if I build an assy with sub assys and with dedicated skeletons at the sub assy level, I start to get quilts and other entities on that layer in the parts in the sub assy.  The quilts in particular cause problems.



For example, I create a quilt in the main skeleton A and publish it to sub-assy skeleton B. In skeleton B the copy geom ends up on my layer.  I then publish that quilt to part C.  In part C the copy geom and the quilt end up on the layer.  Because the quilts don’t follow the same rules as features and entities, I cannot show anything without getting the quilts too.



How do I stop these quilts (& other entities) from showing up?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    3 replies

    J
    James621-Visitor
    1-Visitor
    September 24, 2014

    What happens if you exclude the External Copy Geoms from your layer rules just on part level? That is in your part C as you describe.

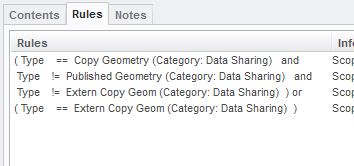

    I've got this layer rule in my part template:


    D
    dgschaefer21-Topaz IIAuthor
    21-Topaz II
    September 24, 2014

    I think tht would accomplish the opposite of what I want.  I want the feature, but nothing else.  That's how the rulkes are specified - look for a feature, look by feature.

    D
    dschenken1-Visitor
    1-Visitor
    September 24, 2014

    Have you thought about a rule that places all quilts on a layer and then adding an exception to the set of rules to not include items on that layer?

    It would be and AND layername != layer_with_quilts

    G
    GabrielZaha14-Alexandrite
    14-Alexandrite
    September 25, 2014

    I hope I undestood your problem correctly.

    I just did a quick test using def_layer config option instead of layer rules. I add the following lines to config.pro:

    def_layer layer_copy_geom_feat 01_copy_geom

    def_layer layer_ext_copy_geom_feat 01_copy_geom

    def_layer layer_quilt 02_quilts

    The copy geom feature is going in 01_copy_geom layer as a feature and all internal quilts are going in 02_quilts layer as entities. After I blanked the 02_quilts layer only the planes and axesthat were part of the publish geom are visible.

    The disadvantage is that ALL quilts will be placed in that layer regardles if they are comming from the copy geom or not. Also this will only work for new parts only.

    D
    dgschaefer21-Topaz IIAuthor
    21-Topaz II
    September 25, 2014

    def_layer based layers are not an option as it offers less flexibility than rule based layers and they rely on the presence of the proper def_layer statements in the config.pro.  If a user without those statements edits the file, nothing happens.



    That said, I'm curious if you duplicated my assy structure above?  My rule based layers work fine when native data is copied from skeleton A to skeleton B, it's when I take that same data out of skeleton B and copy it down one more layer to part C that I get all those extra entities.

    G
    GabrielZaha14-Alexandrite
    14-Alexandrite
    September 25, 2014

    I understand your point about def_layer. We are in the oposite situation where we have a unique configuration but multiple templates based on product type and/or department.

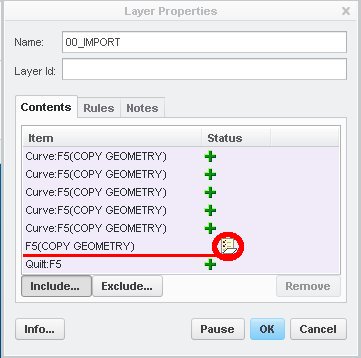

    I reproduced the behaviour you described and I noticed something interesting. From the Content pane it looks like only the feature was added because of the rules. The green plus sign next to the entities means that the entity was added differently. The bad part is that I have no clue how.

    Also I've noticed that if I remove everithing from the layer and then run the rules again only the feature get added.


    What it did work for me was to create the dedicated layers for quilts and curves and set the rules as follow:

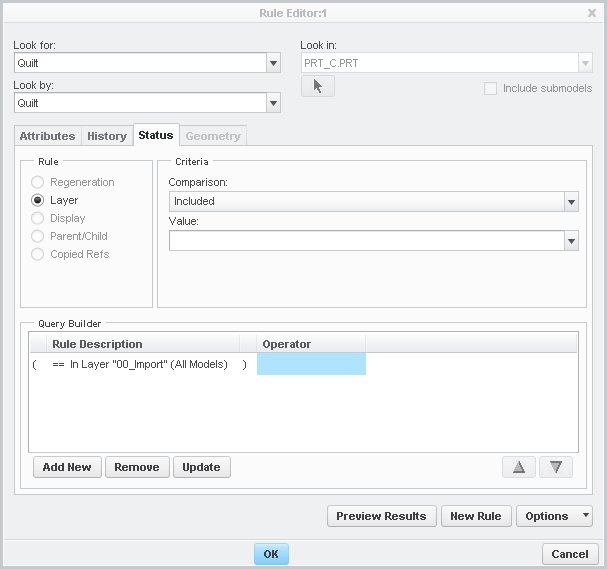

    Quilt layer:

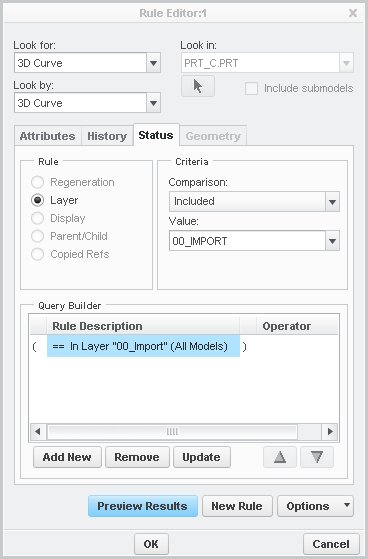

    Curves layer:
