overlap dimensions dimensions in toolkit

I want to highlight overlap dimensions in drawing view..

Is it possible through toolkit

7 replies

msteffke15-Moonstone
15-Moonstone
Mar 7, 2024 2:21 PM UTC

What do you mean by overlap dimension?

Translate
vettri_957-BedrockAuthor
7-Bedrock
Mar 11, 2024 5:37 AM UTC

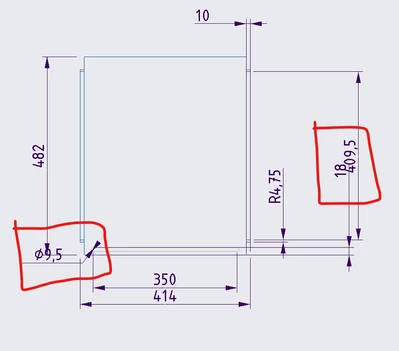

For examble one dimension overlap with




another dimension or dimension arrow (Added image for example)

Translate
msteffke15-Moonstone
15-Moonstone
Mar 11, 2024 12:21 PM UTC

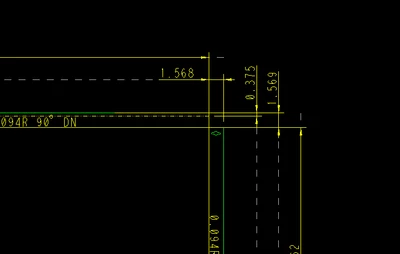

Are your engineers using Snap Lines in the drawing?   If they lock the dimensions to the snap lines they will  always maintain their spacing and avoid overlap.   In the image the snap lines are the dashed lines.  They do not show up in prints/exports.






Translate
FV_01
FV_0117-Peridot
Mar 7, 2024 7:44 PM UTC

Pro/Toolkit functions will give you 2D locations of various entities composing a detail dimension. From there one would need to build a 2D region map and to analyze it using GIS and/or CV algorithms - there are numerous cpp libraries for that.

HIH



Translate
vettri_957-BedrockAuthor
7-Bedrock
Mar 11, 2024 5:38 AM UTC

So, you are saying, need to collect all dimensions with their location. then we have to check overlap by their location. Is that correct

Translate
FV_01
FV_0117-Peridot
Mar 11, 2024 3:50 PM UTC

correct
