Showing combined State view with annoations in the CAD drawing

  • November 3, 2023
  • 2 replies
  • 1543 views

Hello,

Software used: Creo 8.0.

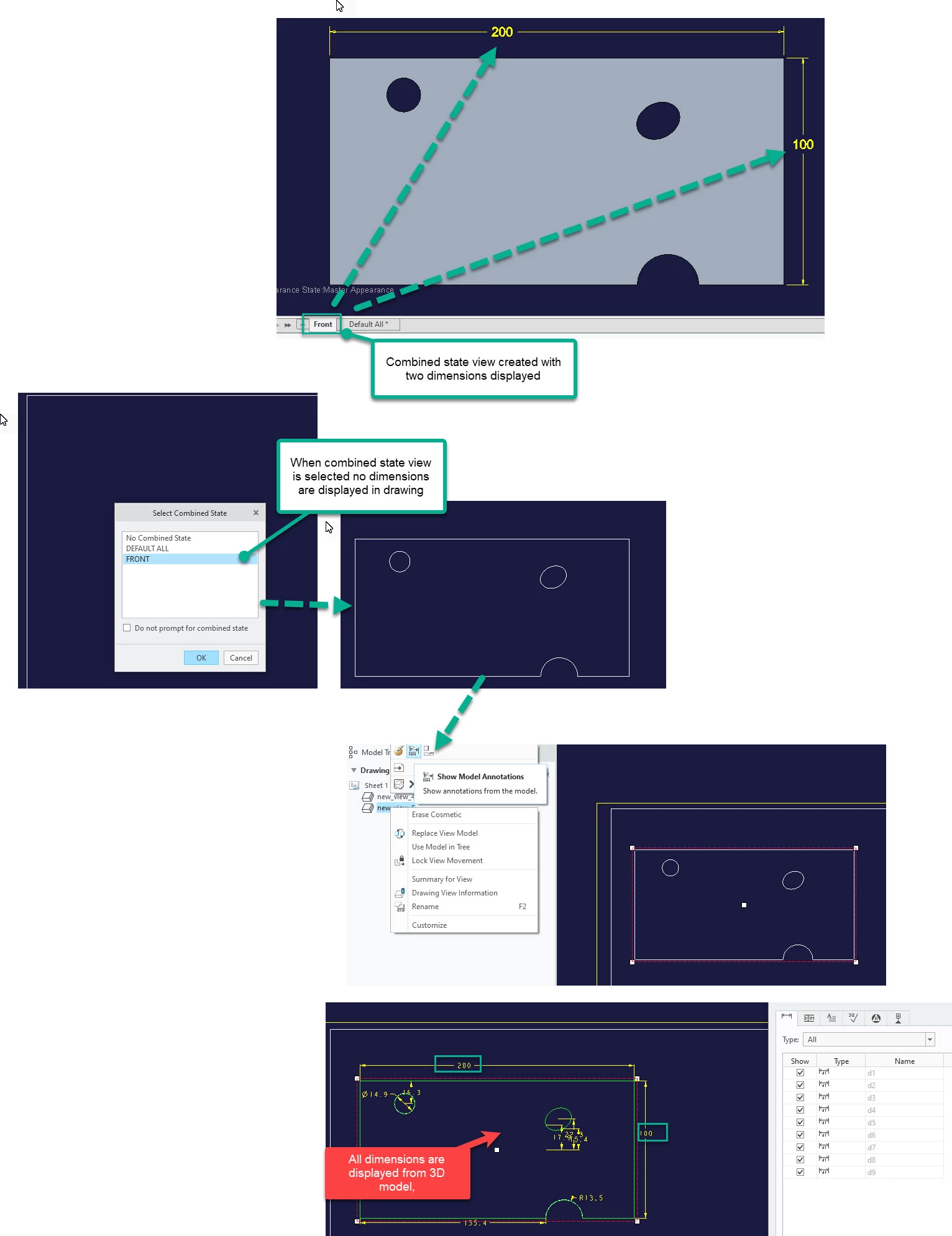

When I set up combined state view in the model I can show different dimensions and annotations in each combined state view, but when add a new view to the drawing and select the combined state view, the annotations and dimensions are not displayed in the drawing as they are in the model.



When I select show model annotations for the drawing view it shows every single dimension available not just the annotations and dimension I displayed in the Model according to the combined state view.



In older versions of Creo, this was possible, not sure if there is a setting that should be changed in new versions.

Thanks,









    2 replies

    S
    Siege_engineer10-Marble
    10-Marble
    August 27, 2024

    There seems to be a bug, and PTC is currently not working on a fix, see:

    https://www.ptc.com/en/support/article/CS255181



    This is a important aspect of MBD, a lot of companies still rely on drawings and without this functionality the benefits of MBD are reduced.

      V
      Van_AG15-Moonstone
      15-Moonstone
      October 25, 2024

      Try to use not combined state, but saved orientation witch used in combined states and config option
      auto_show_3d_detail_items == yes



      Set combined states in model.

      Check that auto_show_3d_detail_items is set to default value "yes".

      And in a drawing view just set saved orientation witch used in model combined states

      It seems to work in Creo 8.
