Sketcher Spline Functionality - NURBS Anyone?

  • August 2, 2012
  • 2 replies
  • 4825 views

We would like to see sketcher implement NURBS in addition to its current spline functionality. I understand that a project is being considered for implementation in Creo 4.0, probably March 2014. Requirements are needed in the next several weeks. At the moment, we are developing our requirements to send to PTC. The requirements will probably be both descriptive and mathematical.

Some random thoughts: Should be able to support current constraints. Ability to extract and manipulate using TOOLKIT. Be able to set NURBS parameters; e.g. as degree.

What requirements do you have?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

J
James621-Visitor
1-Visitor
August 3, 2012

I am not really sure if anything of this is implemented inside of Creo already. I don't bother sketching splines and compound curves in Creo since I am better of doing that in Rhino but what I would like to see in Creo is:

1) Ability to control sketcher spline curves with aproximation points, not just with interpolation points.

2) Ability to move the curve control points by specific distance and in specific direction, not just freely

3) Ability to automatically reconstruct any curve. Change its degree and number of points while showing the shape of the new reconstructed curve and shape of the old and compare their biggest distance before confimation of the reconstruction (check Rhino rebuild command and meaning of maximum deviation).

4) Ability to apply curvature continuous connection to the sketched spline.

M
MatsLindqvist1-Visitor
1-Visitor
August 6, 2012

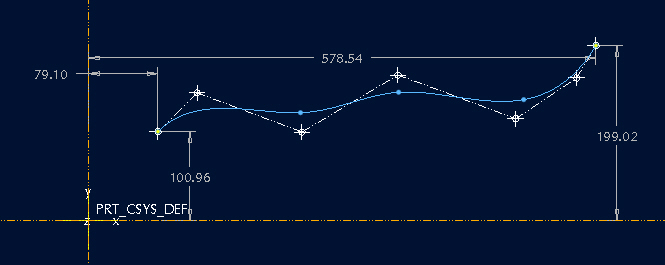

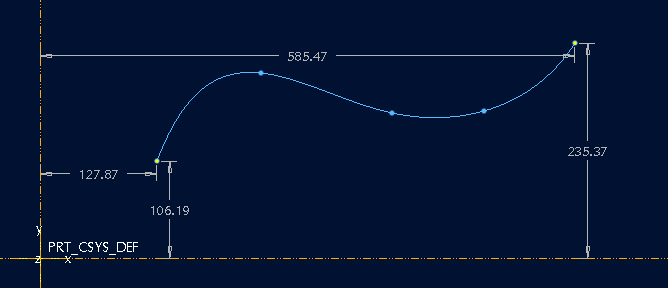

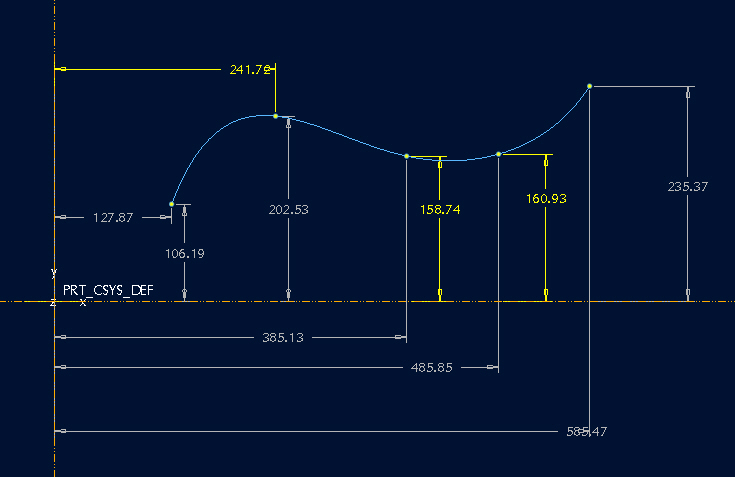

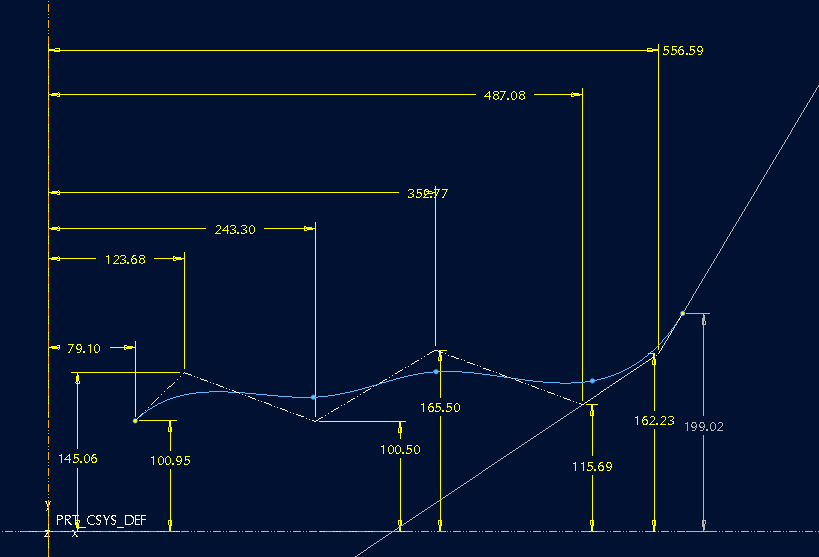

1-2) Isn't this already possible? If you double-click a spline you can switch from "interpolation points" to "control points"... You can check out the attached pictures; 4 different ways of dimensioning spline. You can change to a dimensioned spline, but not back again it seems...
