Symbol Palette in Drawings - Today's Daft Question
- November 12, 2013
- 1 reply
- 1932 views
WF4, M220 here.
In Pro/Detail (my favorite...), when I insert a Centre of Gravity symbol from the On Entity Attachment palette, If I drop it onto a Point or a vertex, say, the attachment point is just a fraction away from the centre of the symbol.

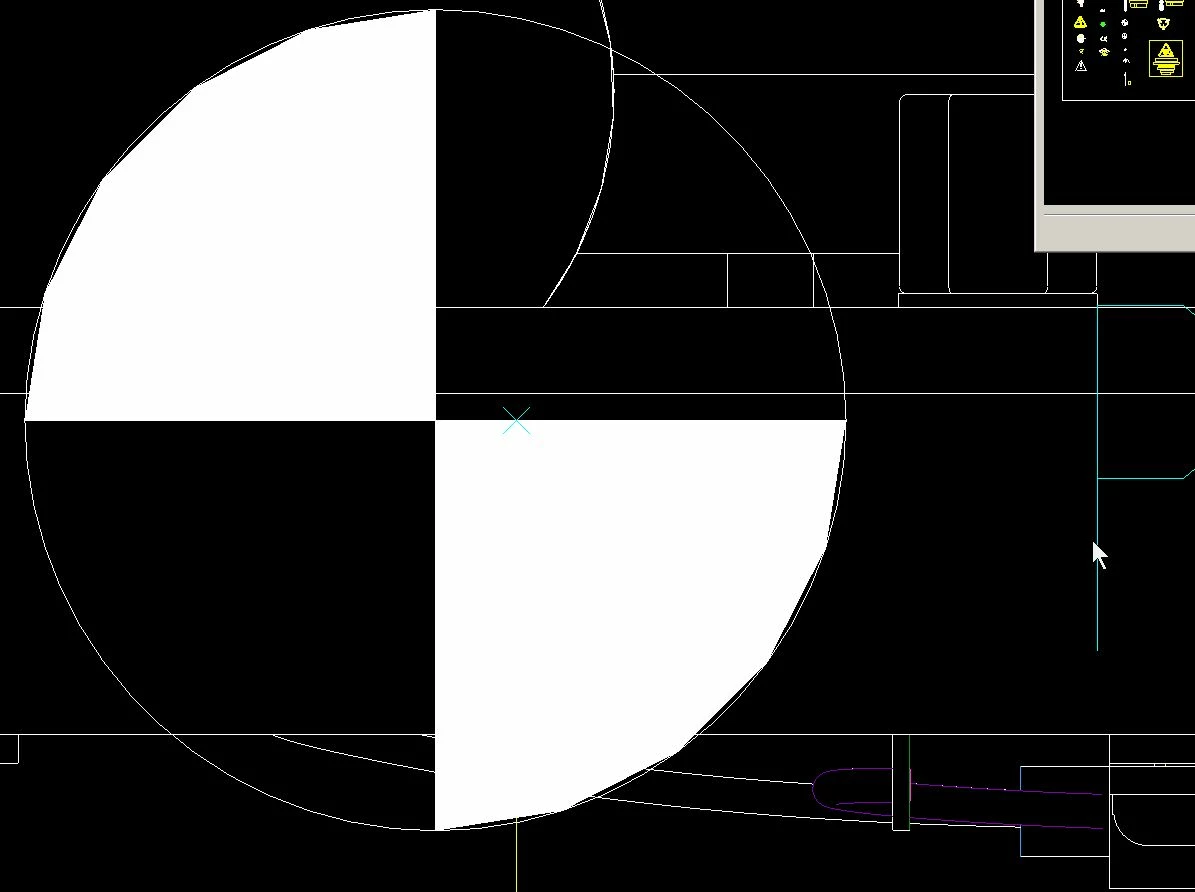

It sits correctly in the vertical direction, but maybe 1/10 of the symbol diameter to the left of centre in the horizontal direction. As a result, if I zoom in to the C of G datum point on the drawing, the symbol does not line up with it.
Is it me? Am I doing something wrong? Or is the symbol just a piece of junk?
More importantly, can I edit it to prevent this misalignment? If so, how?
Thanks,
John
