Transformation matrix

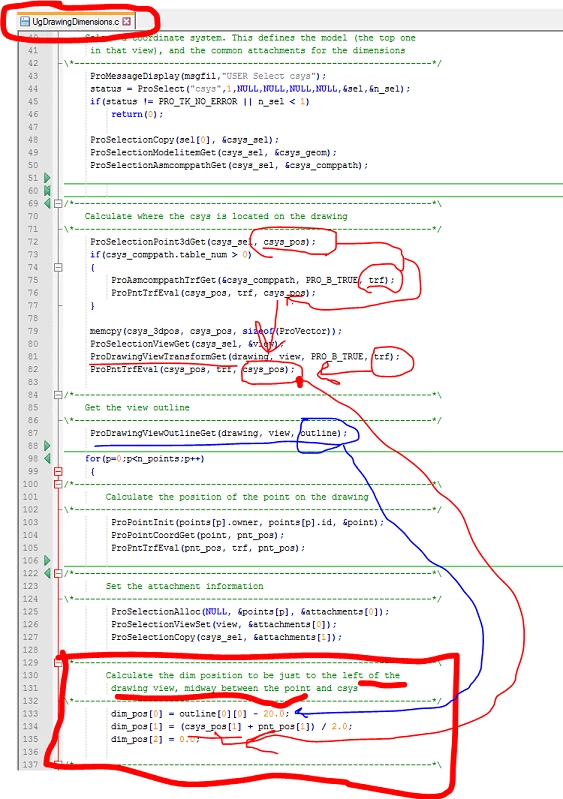

UgDrawingDimensions.c from pt_userguide directory has all answers you are looking for...

---

@Ketan_Lalcheta wrote:

I have a part which is having extrude feature. Extrude is displayed in drawing view.



I need to create dimension in drawing view. For that purpose, I am not asking user to select anything from view i.e. drawing.



In this scenario, what should be done to map co ordinate systems of drawing and part so that dimension is set in middle of dimension line.



What all transformation is required for this scenario is what I need to know so that placement of text is proper.

I hope I cleared your confusion. Feel free to ask for clarification if it is still not clear.



Thanks and Regards

Ketan

---
