Solved

Arc length dimension and symbol ?

  • November 7, 2023
  • 1 reply
  • 3294 views

Hi all.

How do I create an arc length dimension and add the symbol to the dimension text?

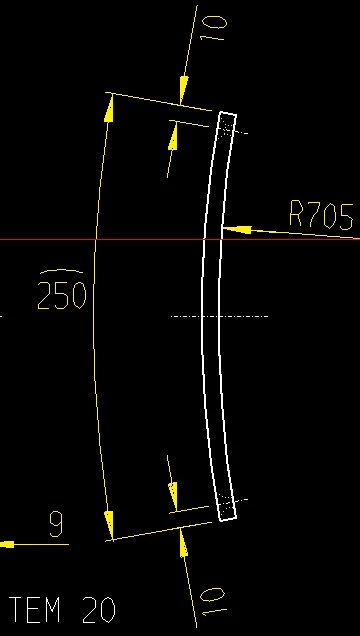

I need similar to the 250 dim in the attachment.

Thanks

Best answer by SteveJI

sorry just realised i've posted in the wrong section...should be in Parametric

1 reply

SteveJI10-MarbleAuthor
10-Marble
November 7, 2023

Thanks, how do you create the actual 'circular' dimension - the '35' shown in that example?

I can only get a horizontal dimension

16-Pearl
November 7, 2023
