Connect 2 faces to create a solid object

  • February 11, 2017
  • 2 replies
  • 3020 views

Hi community people,



I am VERY unfamiliar with 3D drawing tools, so please bear with me...



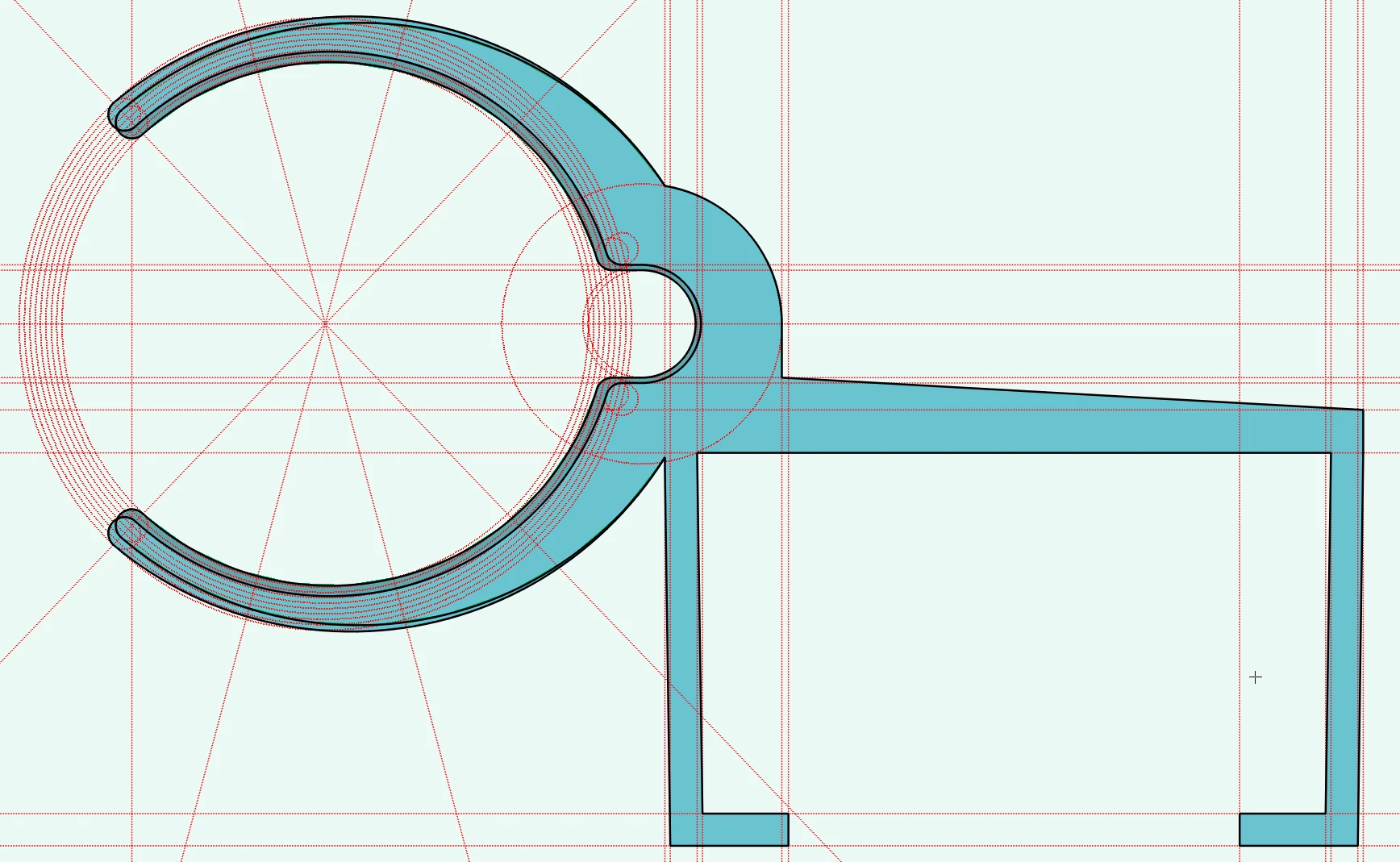

I am trying to create an object, which "almost" is a 2-D drawing, which must be pulled 30mm.



But the Top/Bottom surfaces are a little bit different.



I have tried to define 2 surfaces "Top"/"Bottom", but I do not know how to combine these and add the missing surfaces.



I have tried to use "Gather Faces" without success



Am I doing it totally wrong?



Best regards

Martin



PS: I am using "CREO Elements Direct".

2 replies

M
mjørgensen1-VisitorAuthor
1-Visitor
February 11, 2017

I actually figured it out myself (after watching 50+ videos).

I created a parallel copy of the workspace, and used Loft...

F
FriedhelmK17-Peridot
17-Peridot
February 14, 2017

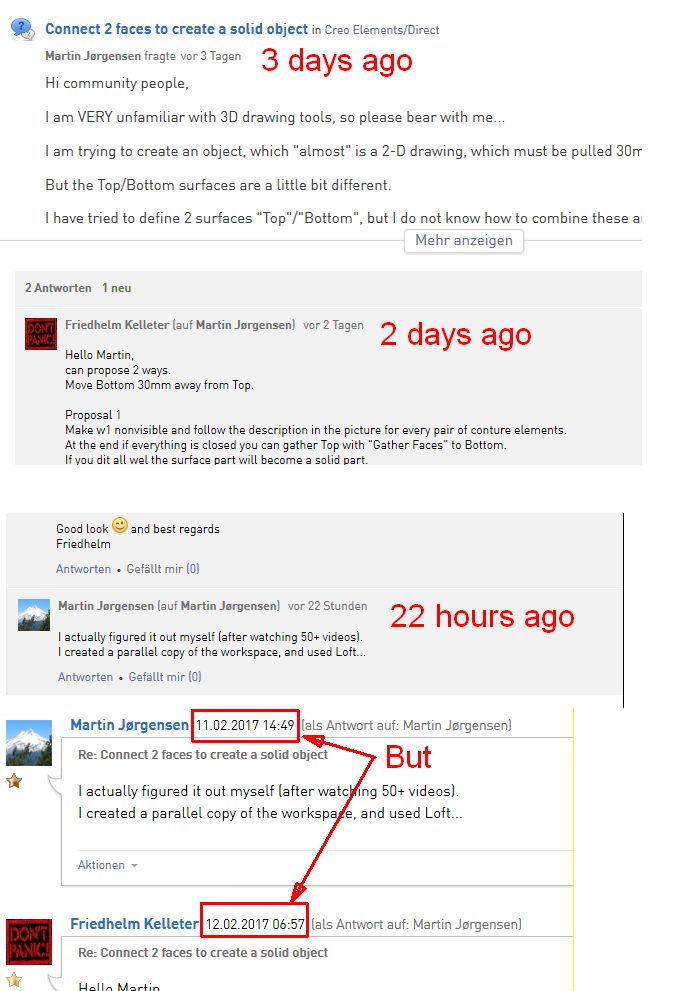

How did you do that with the date?


>I actually figured it out myself (after watching 50+ videos).

Great, congratulation




F
FriedhelmK17-Peridot
17-Peridot
February 12, 2017

Hello Martin,

can propose 2 ways.

Move Bottom 30mm away from Top.

Proposal 1

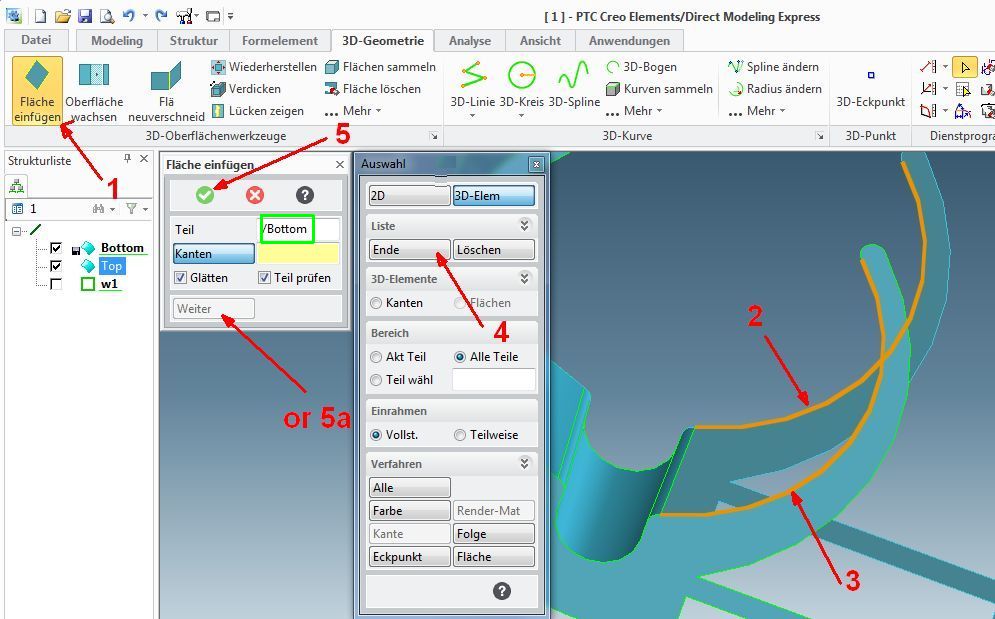

Make w1 nonvisible and follow the description in the picture for every pair of conture elements.

At the end if everything is closed you can gather Top with "Gather Faces" to Bottom.

If you dit all wel the surface part will become a solid part.

But this all is a lot of work.


Proposal 2

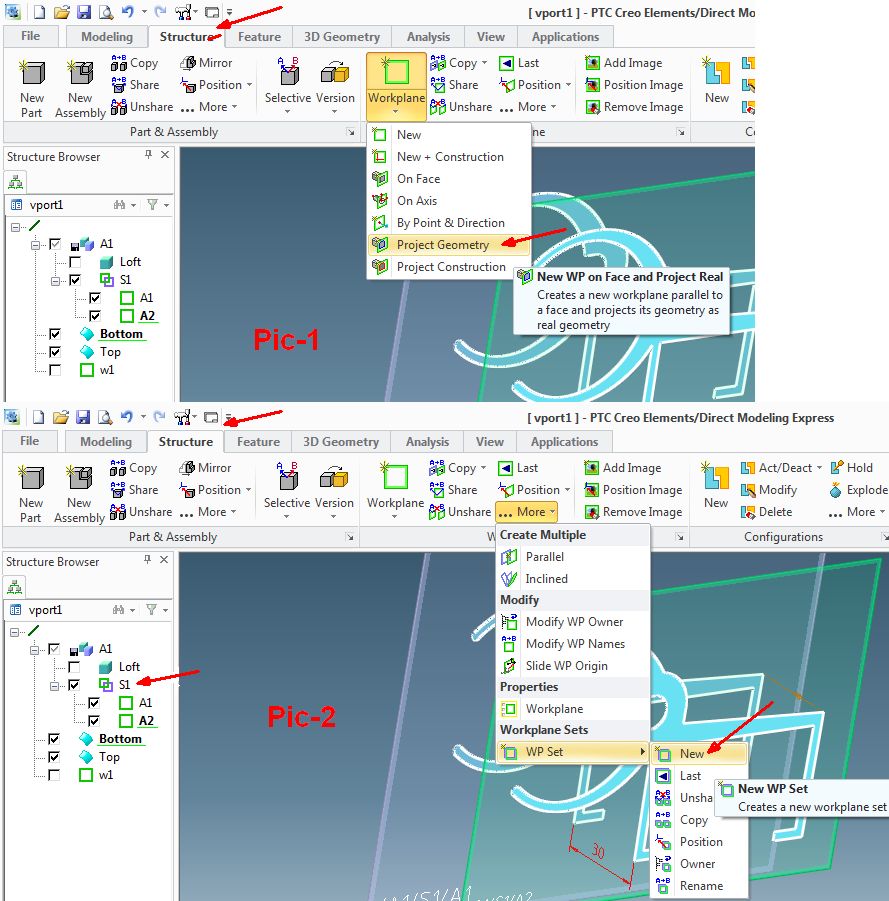

Pic-1 create new workplanes on Top and Bottom and project real geometry.

Pic-2 create a workplaneset S1 and move the workplanes what you have just created into it.


Make Top and Bottom invisible = uncheck in Structure Browser..

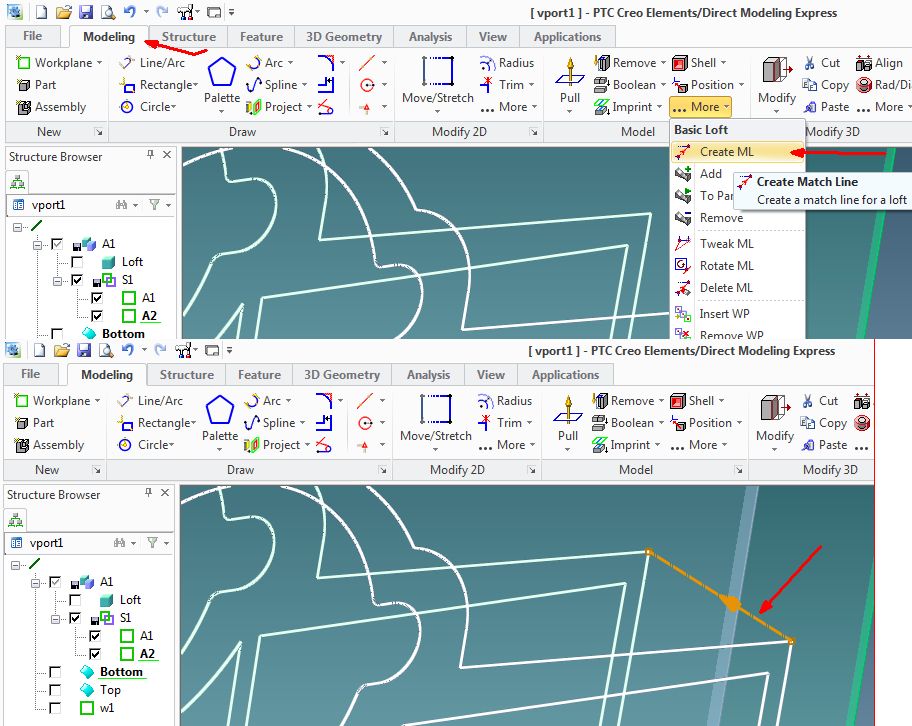

Now create a Match Line. You need only one but dont foget to terminate correctly.

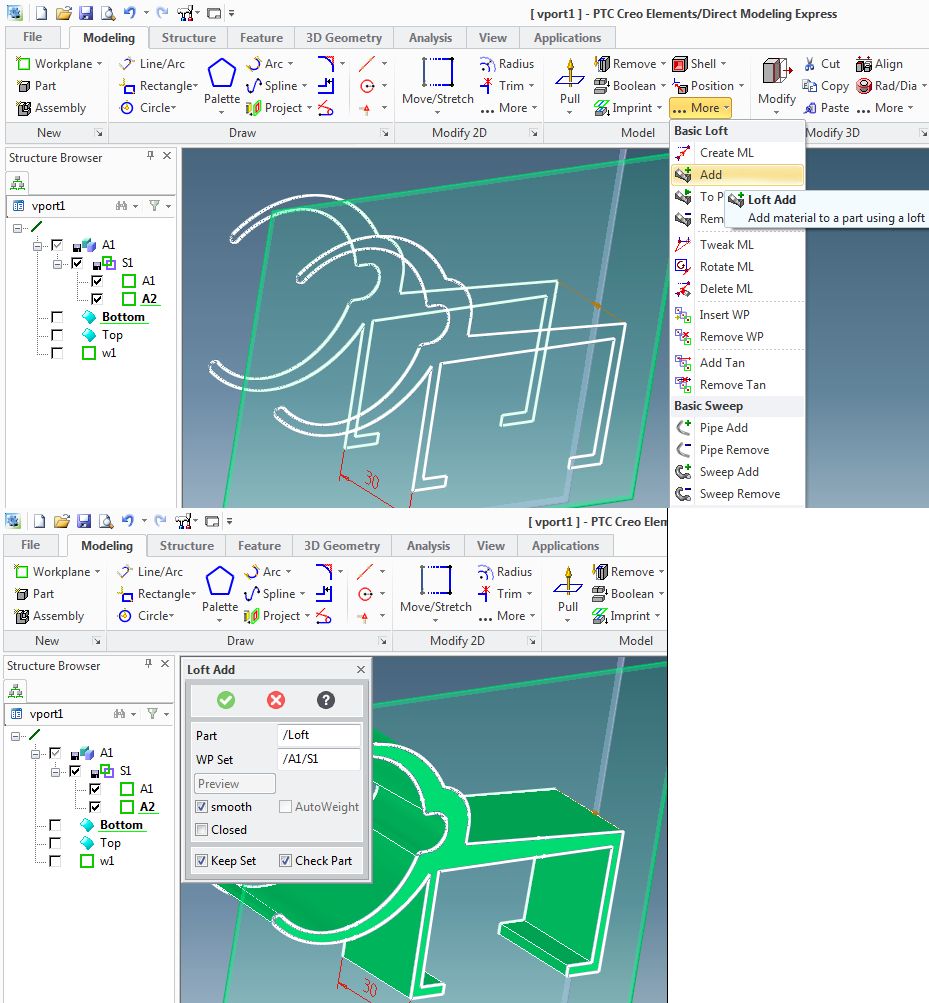

Now you can create a loft. See picture.


Good look and best regards

Friedhelm
