CREO ELEMENTS DIRECT DRAFTING ANNOTATION QUERY

Hi,



     I would like to know how a radial arc length dimension can be shown in a drawing view in creo elements also would like to know how circles or any isolated lines can be made hidden or removed from a main body surface in a drawing.



Thank you.













Kotom-EngAnswer
16-Pearl
Feb 17, 2023 5:33 PM UTC

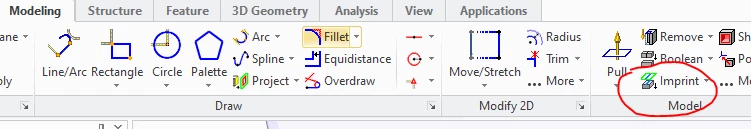

If I understand well, you want to attach arc dimensions to points that do not exist. Then I propose to cut the part in two which will create edges in the circles. I you do not want to have several "virtual" parts instead of one "real" part, you can use the "imprit" command.






View in thread

5 replies

Kotom-Eng16-Pearl
16-Pearl
Feb 16, 2023 2:21 PM UTC

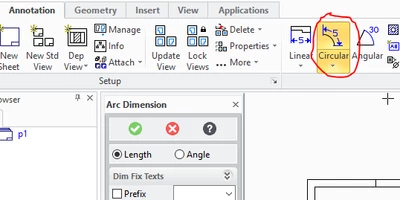

Radial arc dimension: click on the button "Circular"










Hide a line or circle or arc: click on "Hide" button










Translate
    AT_103864784-ParticipantAuthor
    4-Participant
    Feb 17, 2023 5:32 AM UTC

    Hello Friend,



        Thank you very much for your valuable effort for letting me know about hide button option. But still when speak about my arc length query, I would expect to get more information about how the whole process of adding an arc length in a given drawing view is done. Somebody please explains this step by step with some drawing examples.



    Best Regards,

    Arjun.

    Translate
    Kotom-Eng16-Pearl
    16-Pearl
    Feb 17, 2023 6:42 AM UTC



    Click on "Circular"






    Click on "Arc"






    Adjust dimension parameters if necessary




    Fly over the first point of the arc. The arc and the first point are highlighted






    Click where the mouse pointer is (not necessary to click right on the first point). You get an elastic between the first point and the mouse pointer.








    Fly over the second point of the arc. The arc and the second point are highlighted






    Move the mouse pointer where you want to put the dimension






    Finally, click on that position






    During the process, you are guided with the status bar






    The reference: https://support.ptc.com/help/creo/ced_modeling/r20.5.0.0/en/?_gl=1*132thln*_ga*NTk1OTk2Njg0LjE2NzY1NDU0MDI.*_ga_1QBT6P6HR1*MTY3NjYxNDA3Ny4zLjEuMTY3NjYxNDI4MC4wLjAuMA..#page/ced_modeling%2FOSDM_Annotation%2Fam_dim_create_dim.html%23
