drawing a rectangle result in a parallelogram in Creo elements/directs drafting Mixed UI

I use Creo elements/directs drafting Mixed UI 20.7

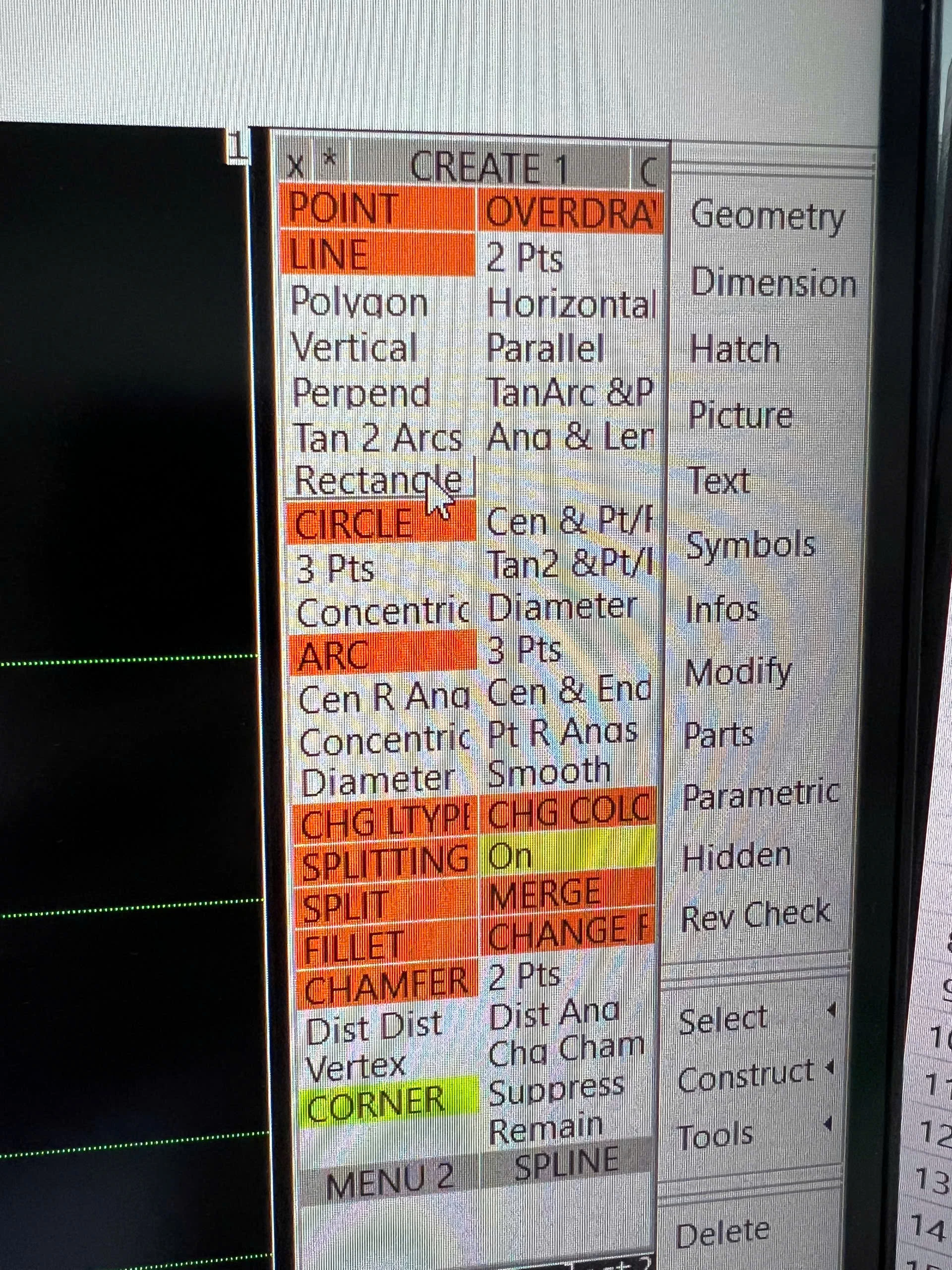

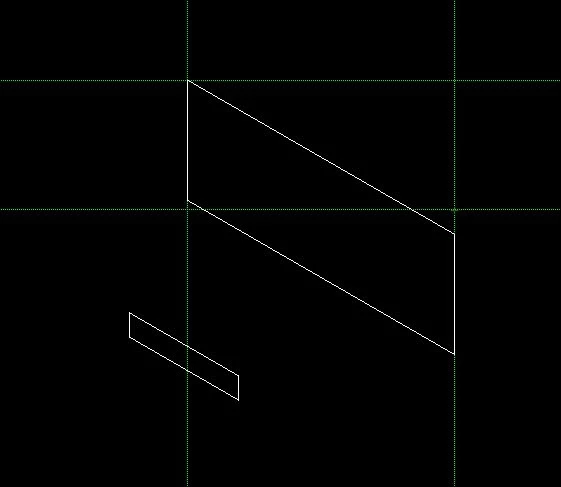

But in one day I drew a rectangle result in a parallelogram automatically.



Who are know the tips to fix this case?

    2 replies

    Kotom-Eng16-Pearl
    16-Pearl
    May 16, 2025 4:48 PM UTC

    That could be a former action on

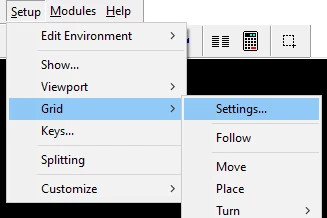

    followed by changing from

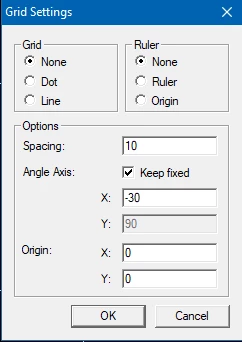

    to




    Translate
      lfortner14-Alexandrite
      14-Alexandrite
      Jun 3, 2025 3:06 PM UTC

      You are probably in isometric mode. To return standard mode type the following command

      CS_AXIS ABSOLUTE 0 1 90 1
